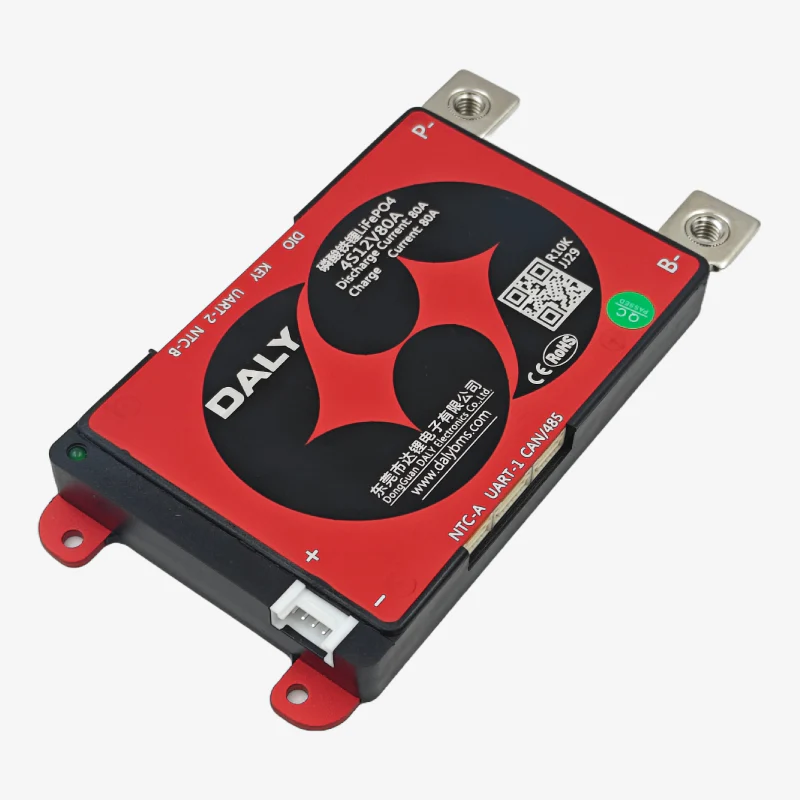

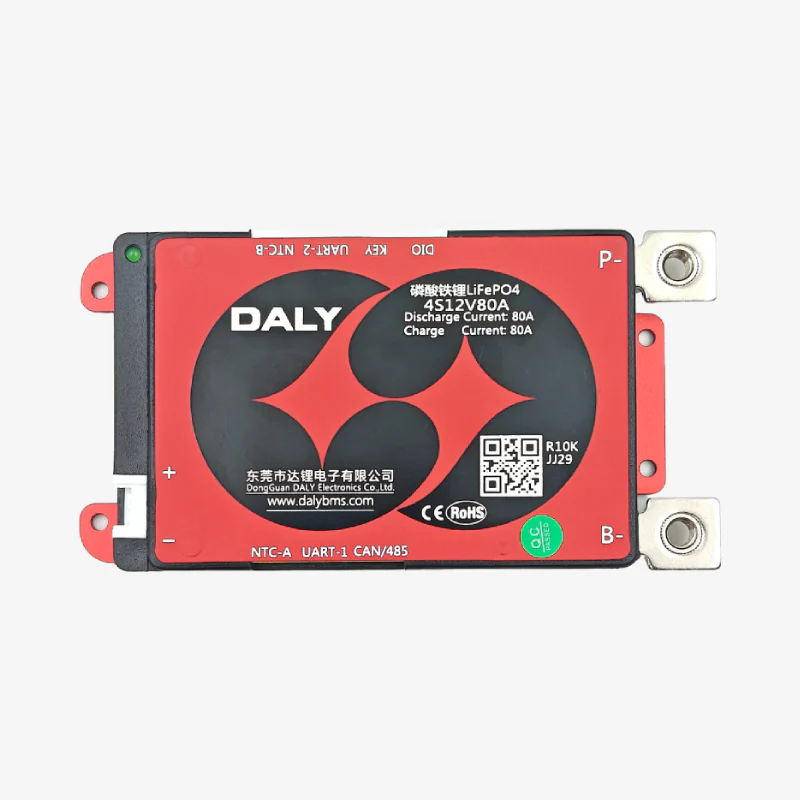

The DALY Smart BMS is a comprehensive Battery Management System designed to monitor and protect lithium-based battery packs (LiFePO₄ and others). It features intelligent protection, real-time data communication, and multiple interface ports to ensure battery health, safety, and remote diagnostics. The system integrates UART, CAN, and RS-485 communication along with Bluetooth support for enhanced connectivity. Passive balancing is included to maintain cell voltage uniformity and extend battery life.

Key Features:

• Supports various lithium battery chemistries including LiFePO₄ (configurable series)
• Multiple communication interfaces: UART, Bluetooth, CAN, and RS-485
• Integrated protection against over-voltage, under-voltage, overcurrent, short-circuit, and over-temperature
• Passive balancing to improve performance and prolong battery pack lifespan
• Real-time data monitoring and parameter configuration via app or external controller
• Digital I/O and switch control for custom integration and alerts
• Ideal for solar energy systems, EVs, powerwalls, and industrial battery management

Specifications:

Specification	Value
Model	DALY Smart BMS
Supported Battery Type	LiFePO₄ (configurable series)
Nominal Voltage	Configurable (e.g., 12.8V for 4S)
Charge Voltage	Depends on configuration
Charge Current	40A
Continuous Discharge Current	80A
Balance Current	30 ±5 mA
Overcharge Detect Voltage	3.75 ±0.05V per cell
Overcharge Release Voltage	3.55 ±0.05V per cell
Over-discharge Detect Voltage	2.20 ±0.1V per cell
Over-discharge Release Voltage	2.50 ±0.1V per cell
Communication Protocols	Bluetooth, UART, CAN, RS-485
Operating Temperature Range	-20°C to 70°C
Dimensions(mm)	83 x 60 x 10

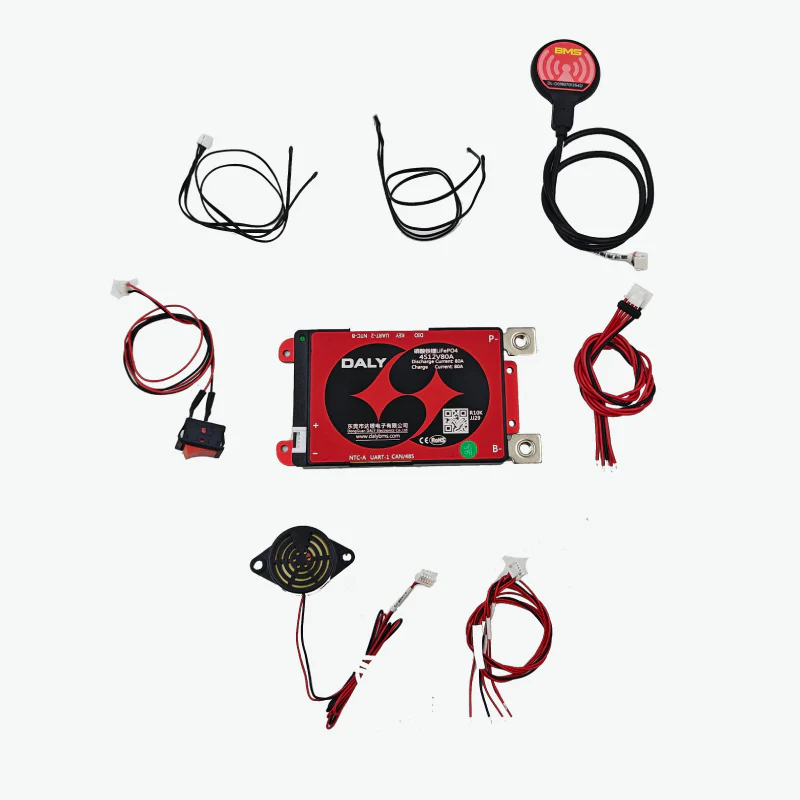

Package Includes:

1 x DALY Smart BMS (Enclosed Module)

1 x Bluetooth Communication Module

1 x Buzzer/Alarm Module

1 x Switch with Connector

4 x Temperature Sensors (NTC-A- & NTC-B)

1 x Main Power Cable (Red & Black)

1 x Communication/Signal Cable (for UART & CAN/RS-485)
