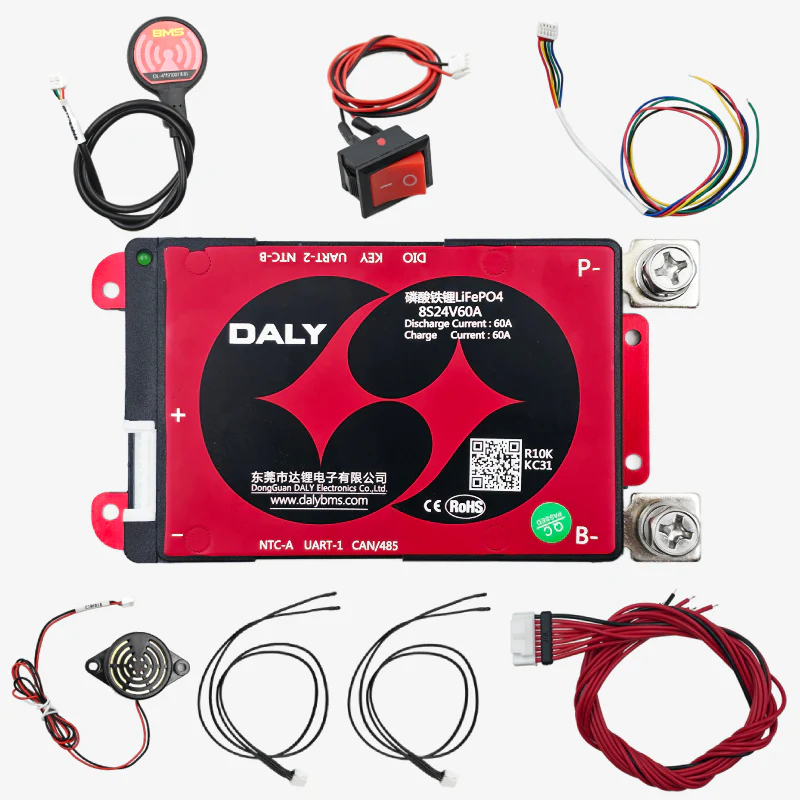

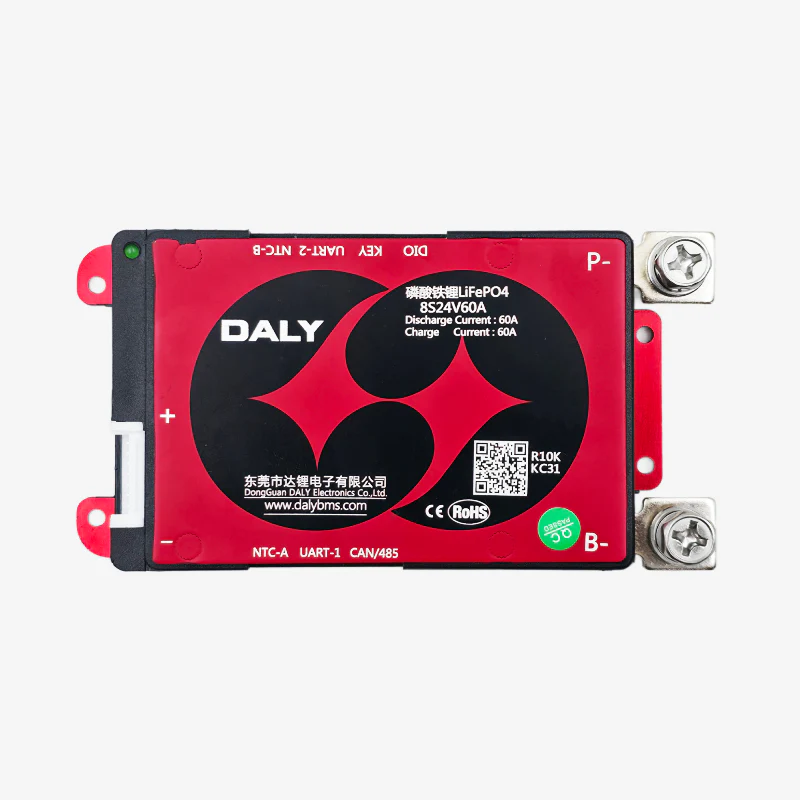

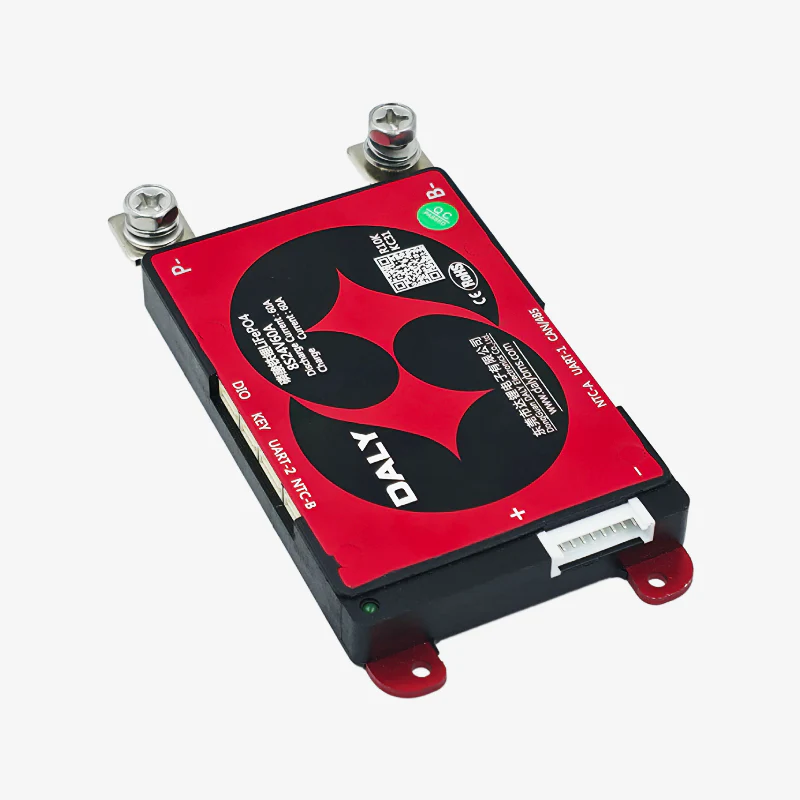

DALY LiFePo4 8S 24V 60A Smart Waterproof Battery Management System Common port with Balance- BMS Protection Board
DALY LiFePo4 8S 24V 60A Smart BMS is a Lithium Battery Management System designed for safe and efficient operation of 8-cell LiFePo4 battery packs. It employs a high-precision protective control circuit that ensures reliable performance and long-term stability. Its capability to support a continuous discharge current of 60A makes it suitable for a wide range of medium to high-power applications.
Features:
- State of charge monitoring.
- Cell over-voltage and under-voltage protection.
- Intelligent passive balancing for all 8 cells.
- Multi-communication support for real-time data and diagnostics.
- Protection against over-current, short circuit, and temperature faults.
- Durable and sealed construction for improved resistance to dust, vibration, and moisture.
Specification:
| Specification | Value |
|---|---|
| Model | LiFePo4 8S 24V 60A Smart BMS |
| Battery Configuration | 8S LiFePo4 (25.6V Nominal) |
| Continuous Discharge Current | 60A |
| Charge Current (A) | 30A |
| Charge Voltage (V) | 29.2V |
| Overcharge Detect Voltage (V) | 3.75–3.80V |
| Over Discharge Detect Voltage (V) | 2.0–2.2V |
| Balance Current (mA) | 30 ±5 |
| Communication | CAN / UART / RS485 |
| Short Circuit Protection | Yes (Auto Recovery) |
| Operating Temperature (°C) | -20 to 70 |
Explore wide range of DALY Smart BMS >
Package Includes:
1 × DALY LiFePo4 8S 24V 60A Smart Waterproof Battery Management System Common port with Balance- BMS Protection Board
