DALY LiFePo4 19S 60V 100A BMS is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.

DALY LiFePo4 19S 60V 100A BMS Module Features:

• State of charge calculations.
• Cell over-voltage and under-voltage protection.
• Intelligent battery balancing (passive).
• Fully sealed waterproof technology with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.

Specification:

Specification	Value
Model	LiFePo4 19S 60V 100A
Charge Voltage (V)	69,35
Charge Current (A)	100
Balance Current (mA)	30±5
Balance Detect Voltage (V)	3.6
Working Current (uA)	100
Overcharge Detect Voltage (V)	3.75±0.05
Overcharge Release Voltage (V)	3.55±0.05
Over Discharge Detect (V)	2.2±0.05
Over Discharge Release (V)	Off load
Working Temperature Range (°C)	-20 to 70
Cable Size (AWG)	10
Length (mm)	65
Width (mm)	125
Height (mm)	13

Explore wide range of DALY Smart BMS >

Package Includes:

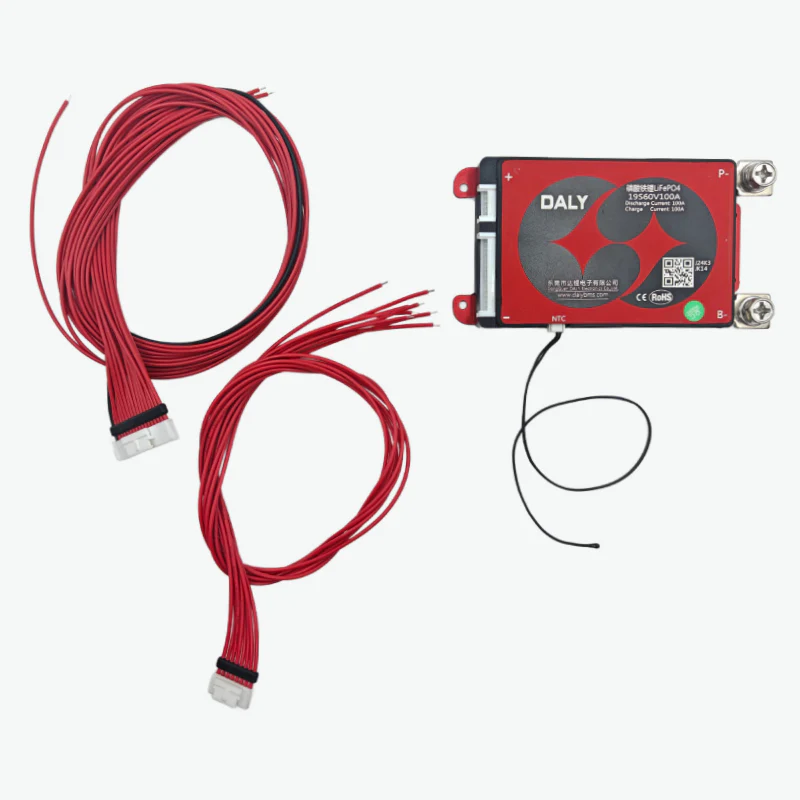

1 x DALY LiFePo4 19S 60V 100A Waterproof Battery Management System - BMS Protection Board
