DALY Smart BMS LiFePo4 16S 48V 100A Battery Management System with UART, CAN, RS485 and Bluetooth Communication Support
The DALY Smart BMS for LFP 16S 48V 100A is a high-performance Battery Management System engineered to monitor, protect, and optimize 16-cell lithium iron phosphate battery packs. Designed for demanding high-power applications, it provides intelligent protection, real-time communication, and advanced diagnostics to ensure maximum safety, efficiency, and battery longevity.
This Smart BMS integrates Bluetooth, UART, and CAN communication interfaces, enabling seamless monitoring through mobile apps and external controllers. With passive cell balancing and comprehensive protection mechanisms, it is ideal for electric vehicles, solar storage systems, backup power units, and industrial energy storage applications.
Key Features:
- Designed for 16S LiFePO₄ battery packs (48V nominal)
- Supports 100A continuous discharge for high-power applications
- Intelligent protection against over-voltage, under-voltage, overcurrent, short-circuit, and overheating
- Multiple communication interfaces: Bluetooth, UART, CAN for live monitoring and control
- Passive cell balancing for voltage uniformity and extended battery life
- Real-time data transmission for accurate battery diagnostics
- Suitable for solar systems, electric bikes, EVs, UPS systems, and energy storage solutions
- High reliability with industrial-grade components
Specifications:
| Model | LiFePO₄ 16S 48V 100A Smart BMS |
| Supported Battery Type | LiFePO₄ (16S) |
| Nominal Voltage | 51.2V |
| Charge Voltage | 58.4V |
| Charge Current | 50A |
| Continuous Discharge Current | 100A |
| Balance Current | 30 ±5 mA |
| Overcharge Detect Voltage | 3.65 ±0.05V per cell |
| Overcharge Release Voltage | 3.55 ±0.05V per cell |
| Over-discharge Detect Voltage | 2.50 ±0.1V per cell |
| Over-discharge Release Voltage | 2.70 ±0.1V per cell |
| Communication Protocols | Bluetooth, UART, CAN |
| Operating Temperature Range | -20°C to 70°C |
| Balancing Type | Passive Balancing |
| Dimensions | Approx. 175 x 72 x 18 mm |
Applications:
- Electric vehicles (e-bikes, e-rickshaws, scooters)
- Solar battery storage systems
- UPS and backup power systems
- Portable power stations
- Industrial energy storage solutions
- Robotics and automation systems
Explore wide range of DALY Smart BMS >

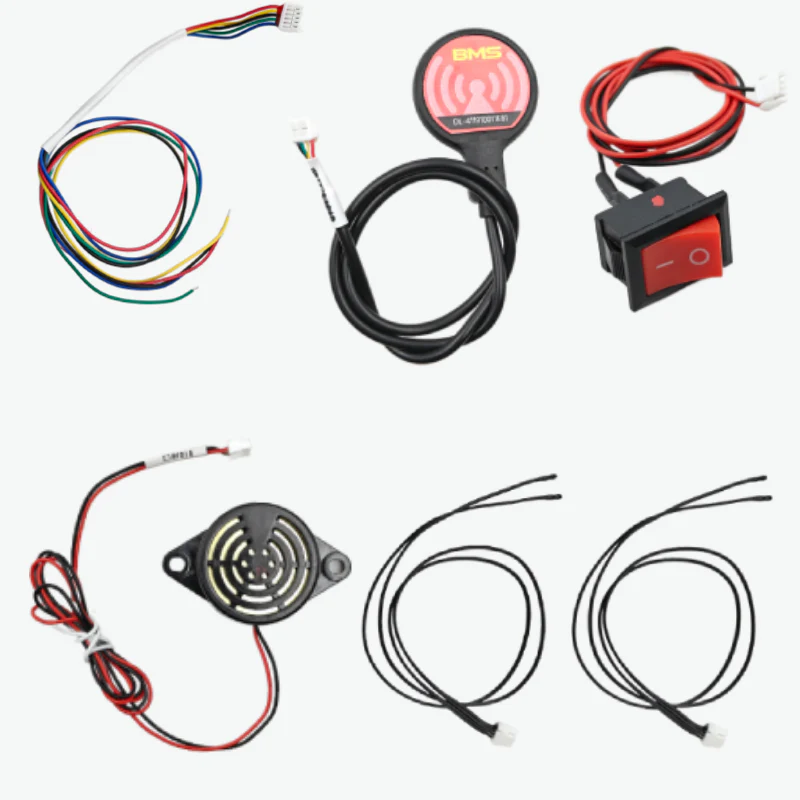

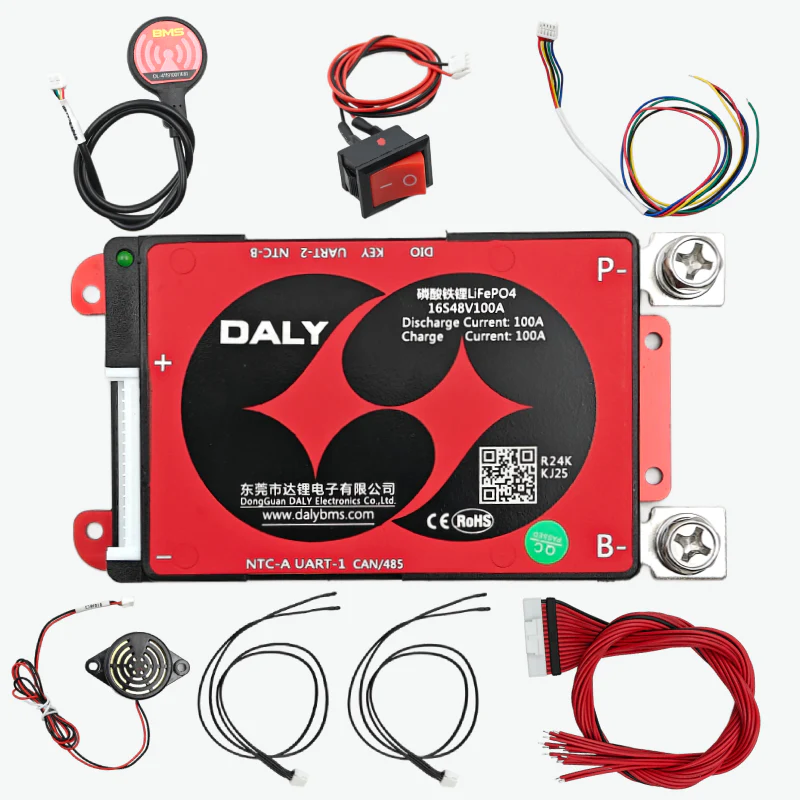

Package Includes:
1 × DALY Smart BMS LiFePO₄ 16S 48V 100A Module
1 × Bluetooth Module
1 × Buzzer / Alarm Module
1 × Switch with Connector
2 × 2 Temperature Sensors
1 × Main Power Cable Set (Red & Black)
1 × Communication / Signal Cable
