The DALY Lithium-Ion 16S 60V 40A Smart BMS is a high-performance Battery Management System designed to protect and manage 16-cell Lithium-Ion NMC battery packs. With intelligent circuitry and communication support, this BMS ensures safety, longevity, and performance of your battery system. It offers comprehensive protection against overcharging, over-discharging, overcurrent, short circuit, and high temperature.

Equipped with passive cell balancing and multiple communication interfaces including UART, CAN, RS485, and Bluetooth, this BMS is ideal for applications such as solar energy storage, electric vehicles, e-bikes, and other power systems requiring stable and remote battery monitoring.

Key Features

1. Supports 16 series Lithium-Ion cells (16S)
2. 60V nominal battery system compatibility
3. Smart BMS with Bluetooth, UART, RS485, and CAN communication
4. Includes switch and buzzer for advanced safety feedback
5. 40A continuous discharge current
6. Comprehensive protection: overcharge, over-discharge, overcurrent, short circuit, and temperature
7. Passive cell balancing for improved efficiency and extended battery life
8. Waterproof and compact for durable field and outdoor applications

Specifications:

Parameter	Value
Battery Type	Lithium-Ion (Li-ion)
Series	16S (16 cells in series)
Nominal Voltage	60V
Continuous Discharge	40A
Charging Current	40A
Overcharge Detection	4.20V ± 0.05V per cell
Over-discharge Detection	2.50V ± 0.05V per cell
Overcurrent Protection	51A
Balance Function	Yes (Passive Balancing)
Balance Voltage	3.70V per cell
Communication	UART, RS485, Bluetooth, CAN
Waterproof	Yes
Temperature Range	-15°C to 60°C
Dimensions	125mm × 65mm × 13mm (typical)
IC Chip	Integrated Smart Protection IC

Explore wide range of DALY Smart BMS >

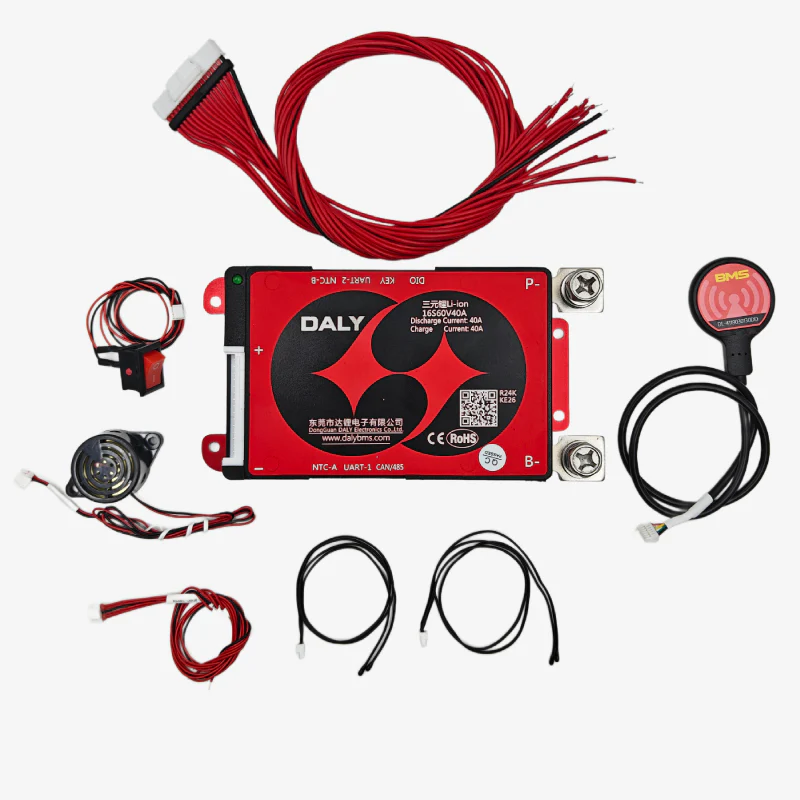

Package Includes:

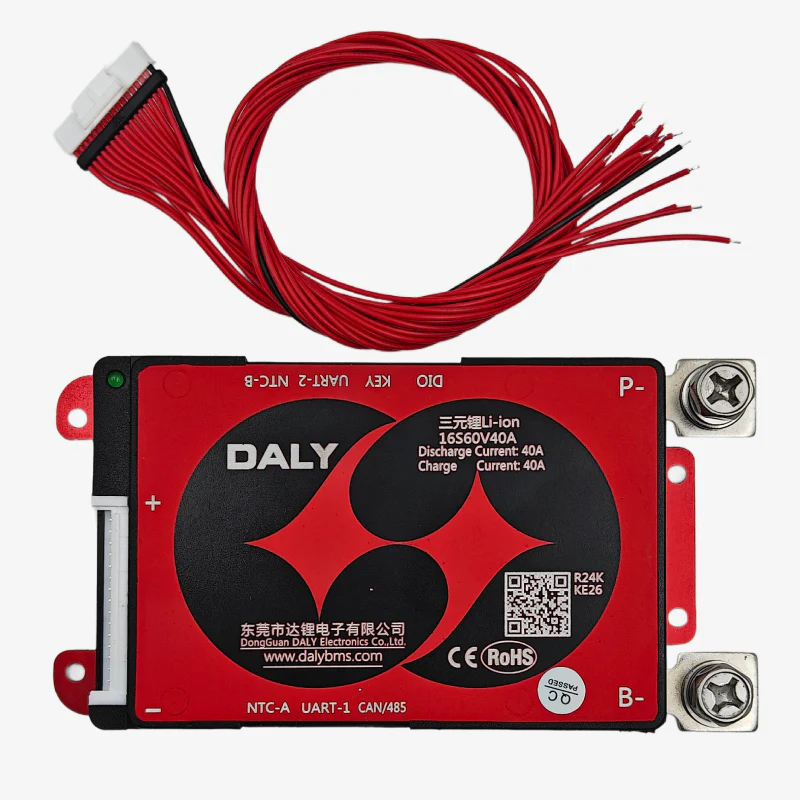

1 × DALY Smart BMS Lithium-Ion 16S 60V 40A Battery Management System Module

1 × Battery Connection Cable

1 × Bluetooth Module

1 × Buzzer/Alarm Module

1 × Switch with Connector

2 × Temperature Sensors (4 NTCs)

1 × Communication/Signal Cable
