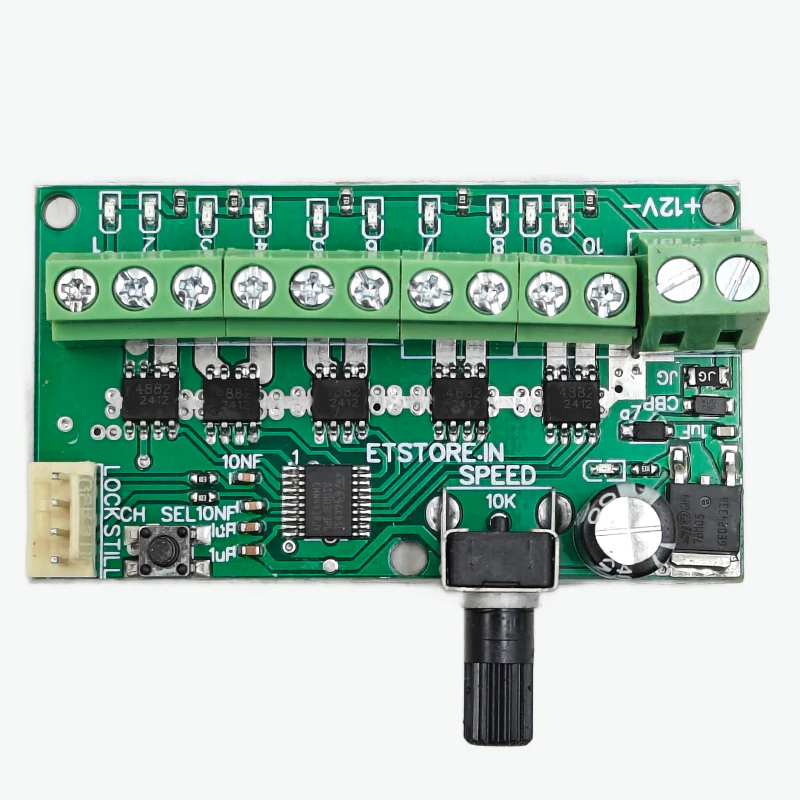

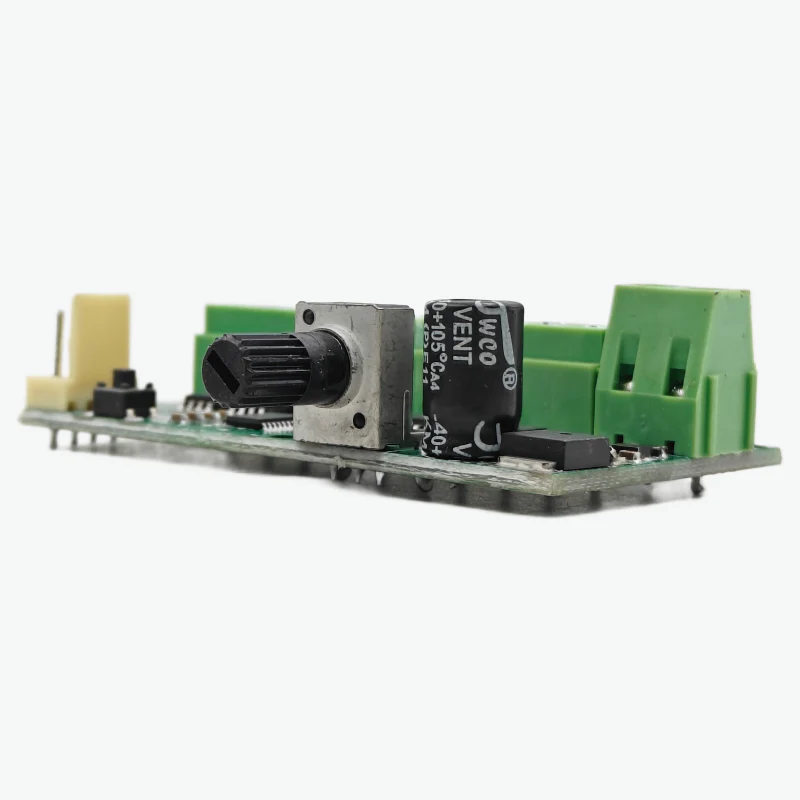

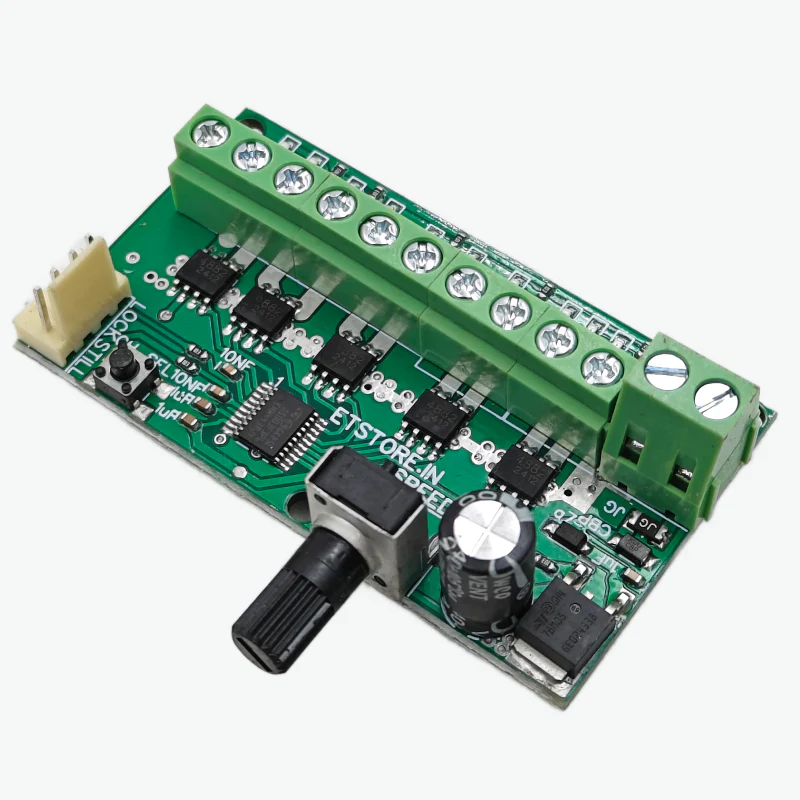

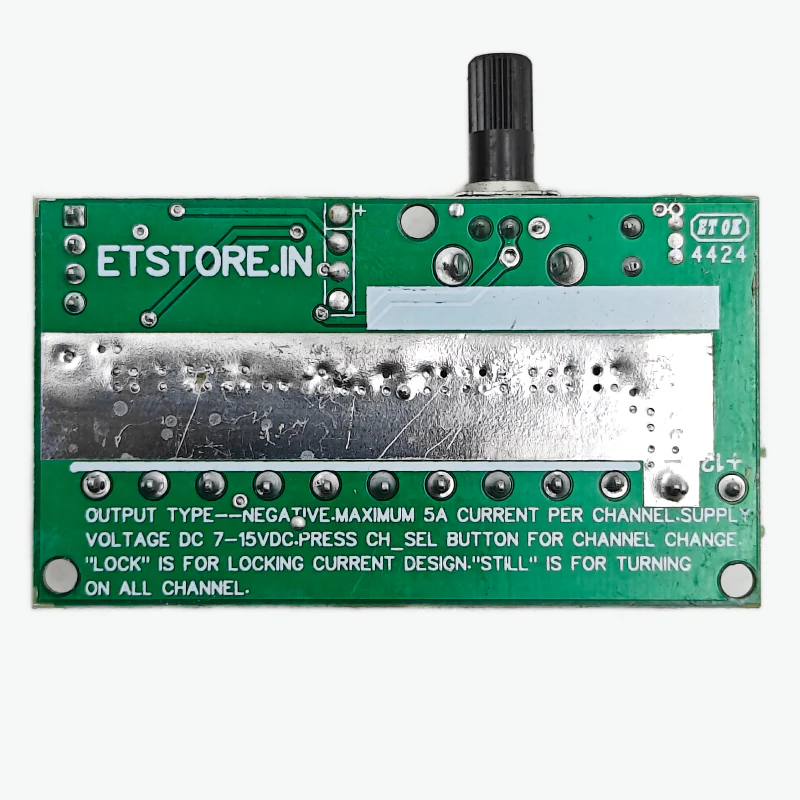

The DC Design Chaser Module is a ready-to-use electronic control board designed to create dynamic and decorative lighting effects across multiple channels. Available in 10, 8, 6, or 4 channel variants, this module allows sequential and pattern-based lighting control with a built-in small speed controller, making it ideal for decorative installations, automotive lighting, stage effects, signage, and DIY electronics projects. Operating on a 7V–15V DC input range, the module supports a total load capacity of up to 8A, allowing it to drive DC lights, LEDs, or other low-voltage DC loads safely and reliably with proper load handling.

Features:

1. Multiple channel options: 10, 8, 6, or 4 channels for versatile lighting setups
2. Built-in small speed controller for adjustable chase speed
3. Sequential and pattern-based lighting control
4. Wide DC operating voltage range: 7V to 15V
5. Supports up to 8A total load current
6. Suitable for DC lights and LED applications
7. Compact PCB design for easy installation
8. Ideal for decorative lighting, automotive, signage, and DIY electronics projects

Specifications:

• Module Type: Multi-Channel DC Design Chaser Controller
• Channel Variants: 10, 8, 6, 4
• Input Voltage: DC 7V – 15V
• Maximum Load Current: Up to 8A (total, application dependent)
• Speed Control: Built-in adjustable speed controller
• Output Type: Sequential / patterned DC output
• Switching Mode: Automatic and continuous chaser patterns
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C

Package Includes:

1 × DC Design Chaser Module (10/8/6/4 Channel with Small Speed Controller, 7–15V DC, 8A)
