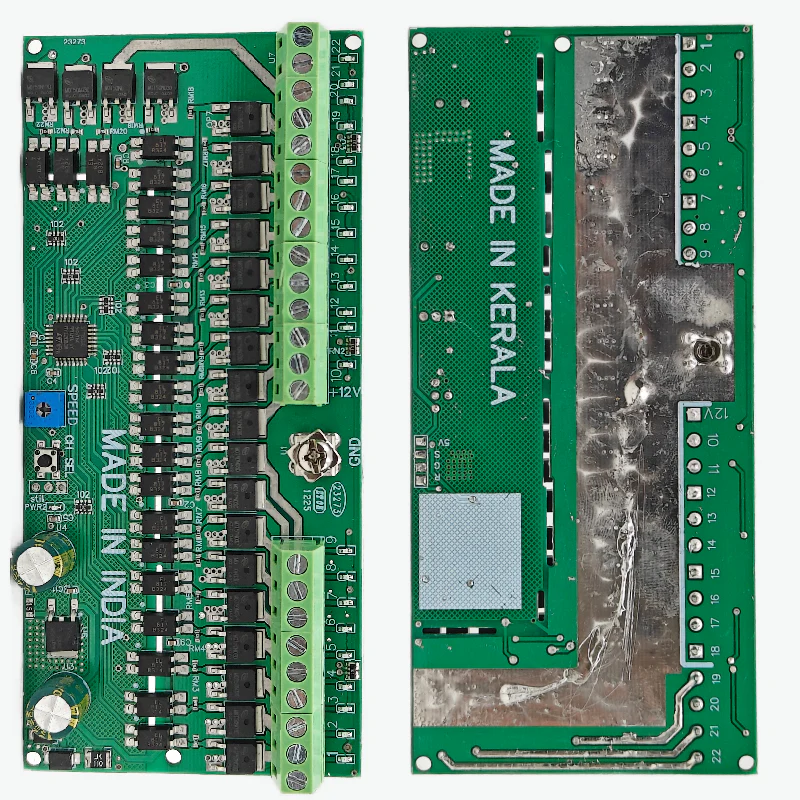

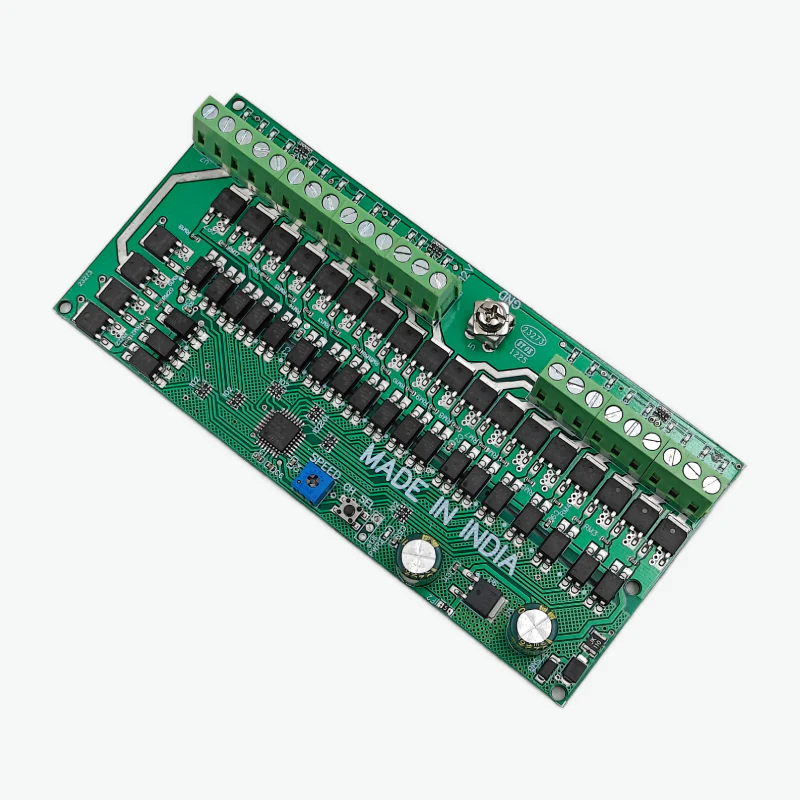

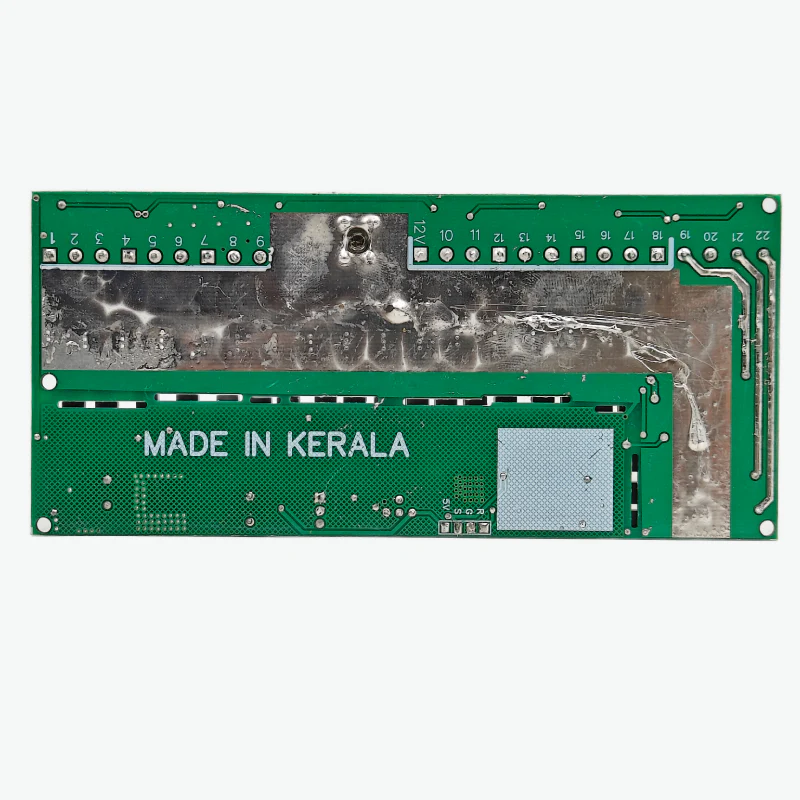

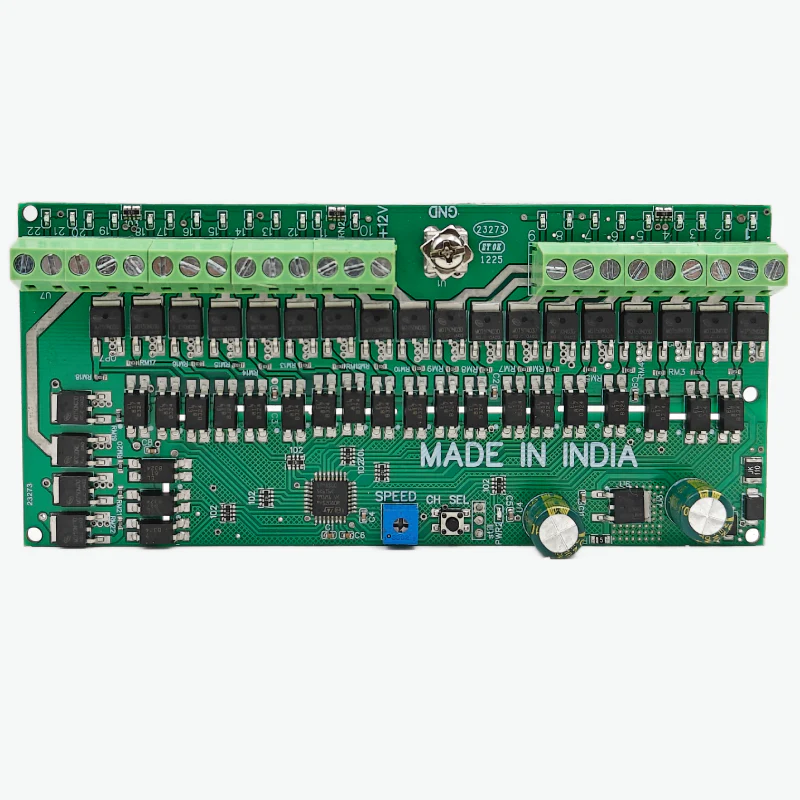

The DC Design Chaser 22 Channel Module is a high-power, ready-to-use electronic control board designed to create sequential and decorative lighting effects across twenty-two output channels. With a total load capacity of up to 20A, this module is ideal for automotive lighting, stage effects, decorative installations, signage, and DIY electronics projects requiring reliable multi-channel DC load control. Operating on a 7V–15V DC input range, the module can safely drive multiple DC lights or LED strips when proper wiring, load distribution, and heat management are applied.

Features:

1. 22-channel DC design chaser output
2. High-current support with up to 20A total load
3. Sequential and pattern-based lighting control
4. Wide DC operating voltage range: 7V to 15V
5. Stable and reliable operation for continuous use
6. Suitable for DC lights, LED strips, and other low-voltage DC loads
7. Compact and robust PCB design for easy installation
8. Ideal for automotive, decorative lighting, stage effects, and DIY projects

Specifications:

• Module Type: 22-Channel DC Design Chaser Controller
• Number of Channels: 22
• Input Voltage: DC 7V – 15V
• Maximum Load Current: Up to 20A (total, application dependent)
• Output Type: Sequential / patterned DC output
• Switching Mode: Automatic and continuous chaser patterns
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C

Package Includes:

1 × DC Design Chaser 22 Channel Module (7–15V DC, 20A)
