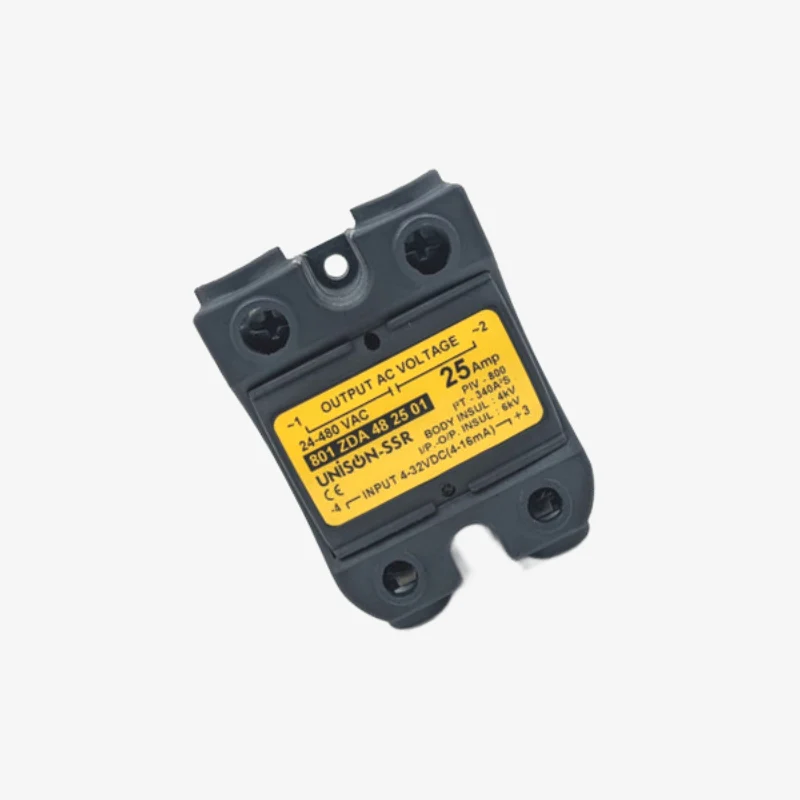

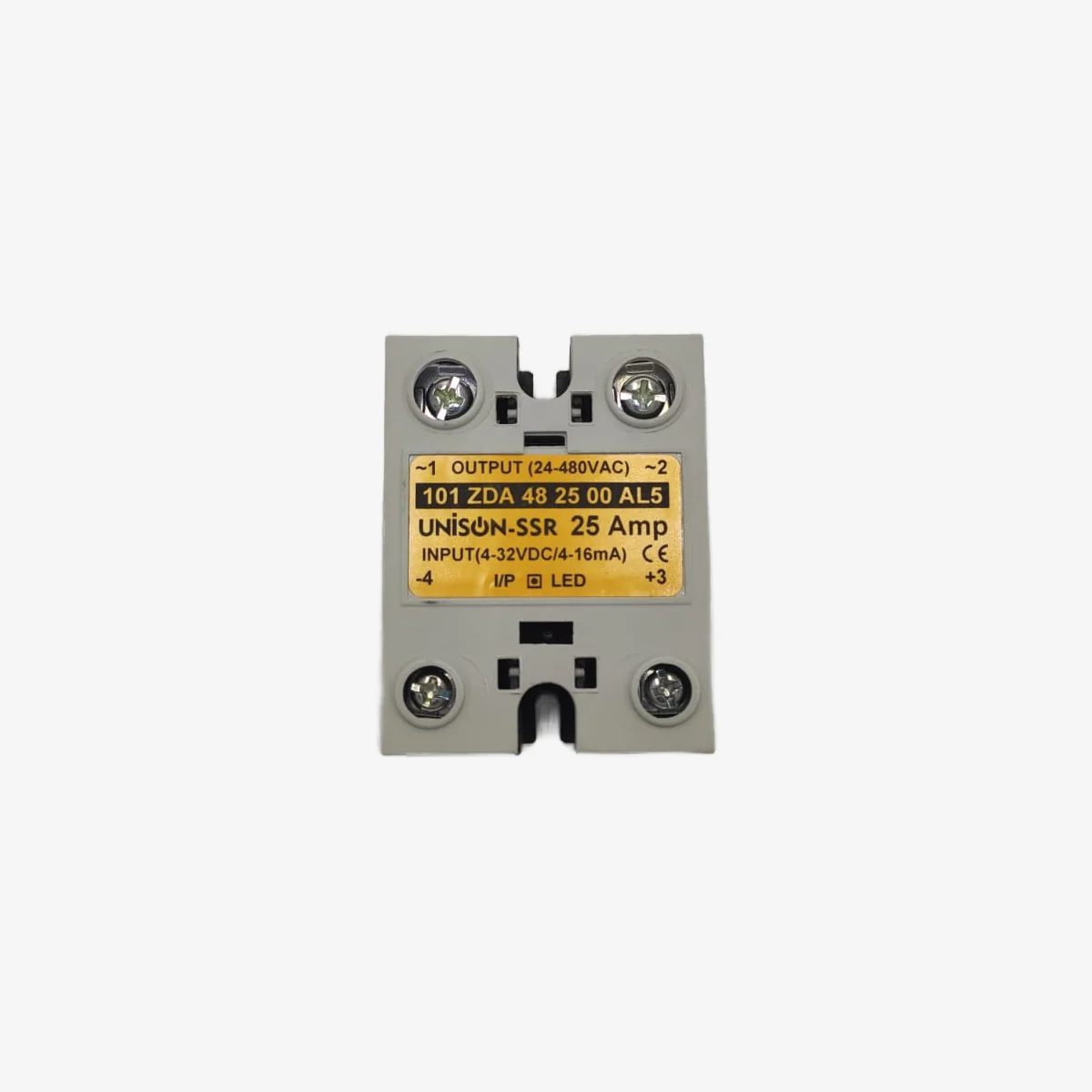

This DC To AC UNISON SSR-25DA Solid State Relay Module allows you to control high-current AC loads using lower voltage DC control circuitry. It switches current loads up to 25A with a 4-32V DC input, using a zero cross-trigger control method. Unlike mechanical relays, this SSR operates without moving contacts, providing faster switching and longer service life.

Features:

1. Long Service Life and High Reliability: Durable design ensures long-term performance.
2. Reduced Electromagnetic Interference: Minimized interference for smoother operation.
3. Compact Size: Designed for maximum simplicity and ease of use.
4. Fast Switching: Can be switched much faster than mechanical relays.
5. High Load Capacity: Supports up to 25A current loads.
6. Protected Terminals: Equipped with a plastic cover to protect screw terminals.


Specifications:

• Model: SSR-25DA
• Rated Load Current: 25A
• Trigger Voltage: 4-32V DC
• Switching Voltage: 24-480V AC @ 25A
• Color: Black
• Input Green LED Induction
• Load Current: 10 Ampere @40 C
• PIV: 800V Pk
• I/P to O/P Insulation : 6kV For 1Min
• Inbuilt Surge Voltage Protection Of 2700Vrms
• Long Life Cycle Up to 10^11 Cycle

Package Includes:

1 x DC To AC UNISON SSR-25A Solid State Relay Module 4-32VDC 24-480VAC
