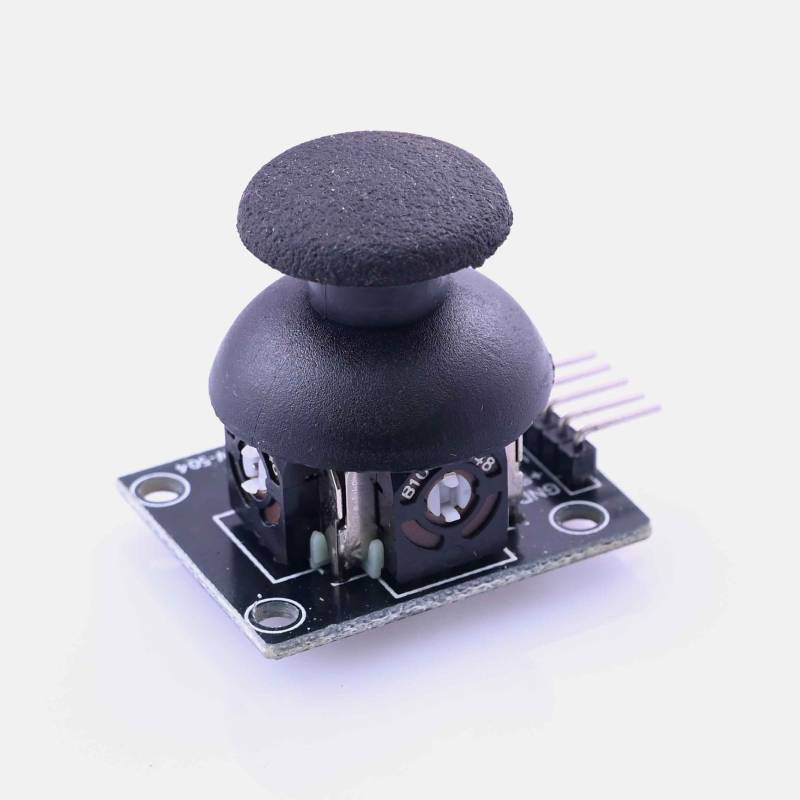

This is a Dual Axis Joystick Module to measure position coordinates on the X and Y axis by moving the “hat”. Directional movements are controlled by simply two potentiometers of 10k ohm – one for each axis. This PS2 Joystick module sensor also has a select button that is actuated when the joystick is press down.



Joystick Module Features and Specifications:

• Compatible with Arduino or with most of the microcontrollers
• Two independent Potentiometers - one for each axis ( X and Y)
• Auto return to center position
• Low weight
• Cup-type Knob
• Operating Voltage: 5V

• Internal Potentiometer value: 10k
• 2.54mm pin interface leads
• Dimensions: 1.57 in x 1.02 in x 1.26 in (4.0 cm x 2.6 cm x 3.2 cm)
• Operating temperature: 0 to 70 °C

Package Includes:

1 x Dual Axis XY Joystick Module
