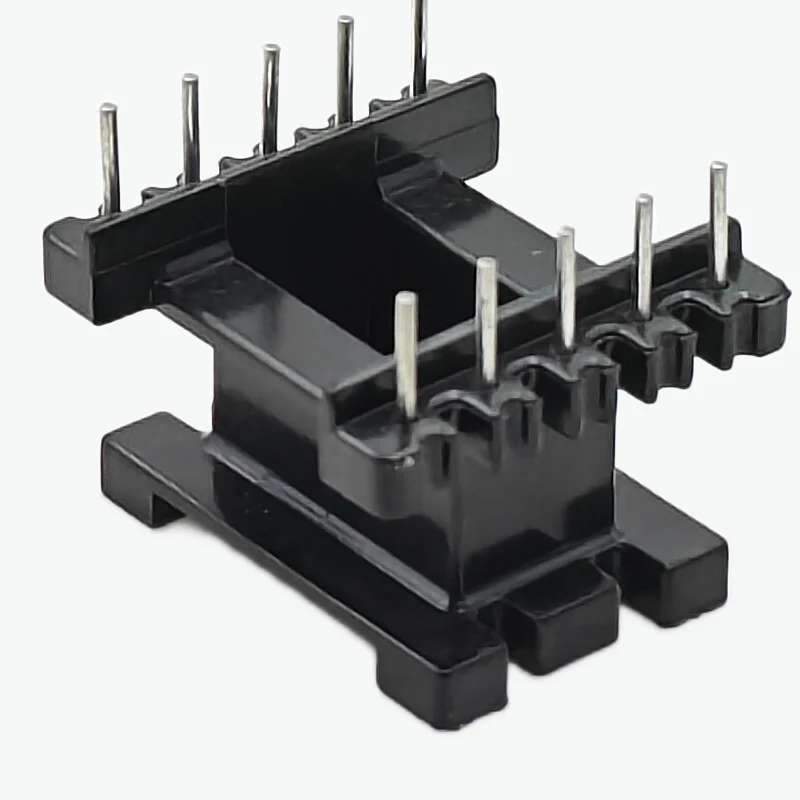

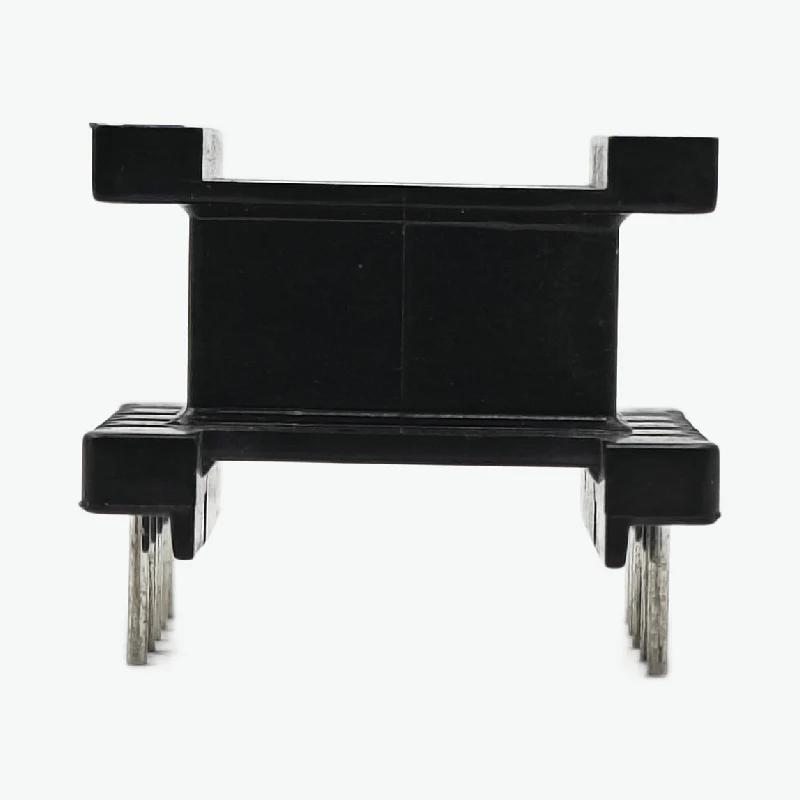

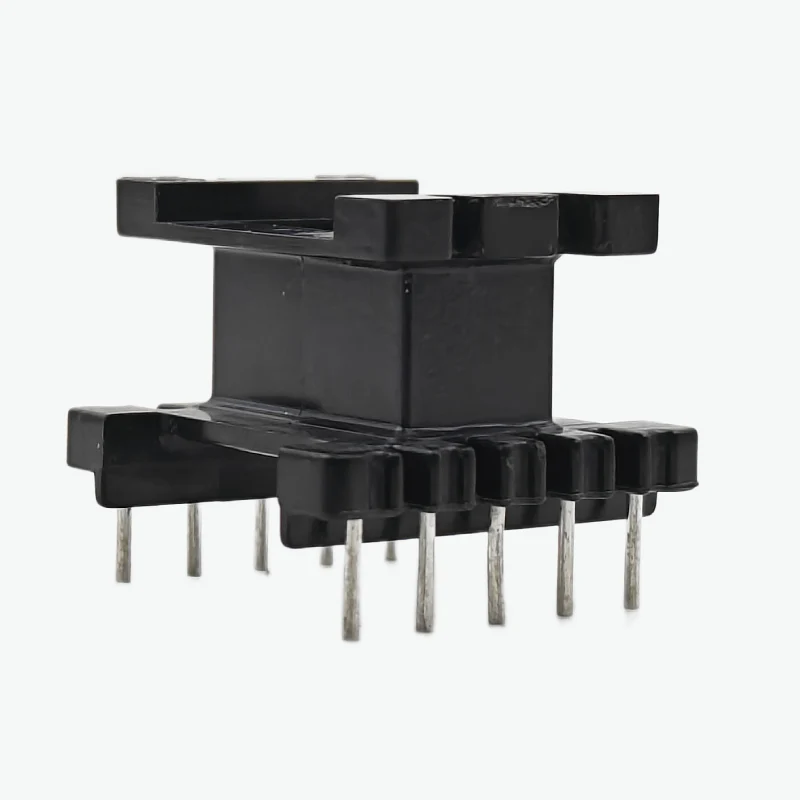

The EE 22 x 13 Phenolic Bobbin is a high-quality transformer coil former designed for reliable winding support in power transformer and SMPS applications. Manufactured from heat-resistant phenolic material, this bobbin provides excellent electrical insulation, mechanical strength, and long-term thermal stability. It ensures accurate coil alignment and secure PCB mounting, making it ideal for industrial transformer manufacturing and electronic power supply designs. Engineered for compatibility with EE22 ferrite cores, this vertical bobbin supports efficient transformer assembly and stable electrical performance.

Features:

1. Designed for EE 22 x 13 transformer core size
2. Heat-resistant phenolic construction
3. Excellent electrical insulation properties
4. 5 + 5 pin configuration for dual winding support
5. Accurate 3.75 mm pin-to-pin spacing for easy PCB soldering
6. Vertical mounting structure
7. Strong mechanical durability for industrial applications
8. Suitable for SMPS, inverter, and power supply transformers

Specifications:

• Core Size Compatibility: EE 22 x 13
• Material: High-Grade Phenolic
• Transformer Type: Power Transformer
• Mounting Type: Vertical
• Number of Terminals: 5 + 5 Pins
• Pin-to-Pin Pitch: 3.75 mm
• Row-to-Row Pitch: 17.5 mm
• Color: Black
• Application: SMPS, Inverters, Power Supplies, Industrial Electronics

Package Includes:

1 × EE 22 x 13 Phenolic Vertical Mount Transformer Bobbin - (10 Pins)
