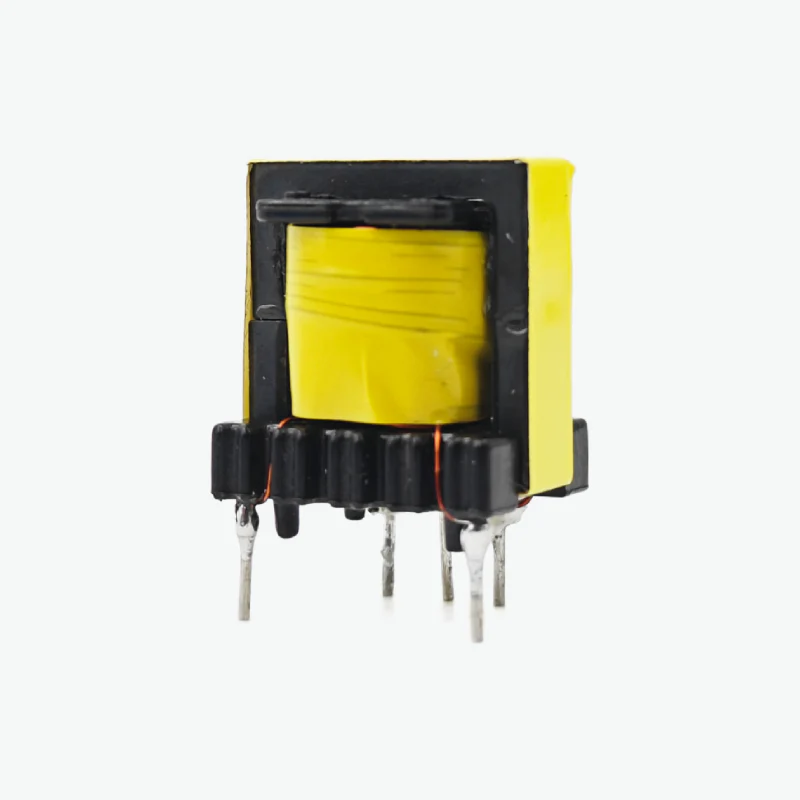

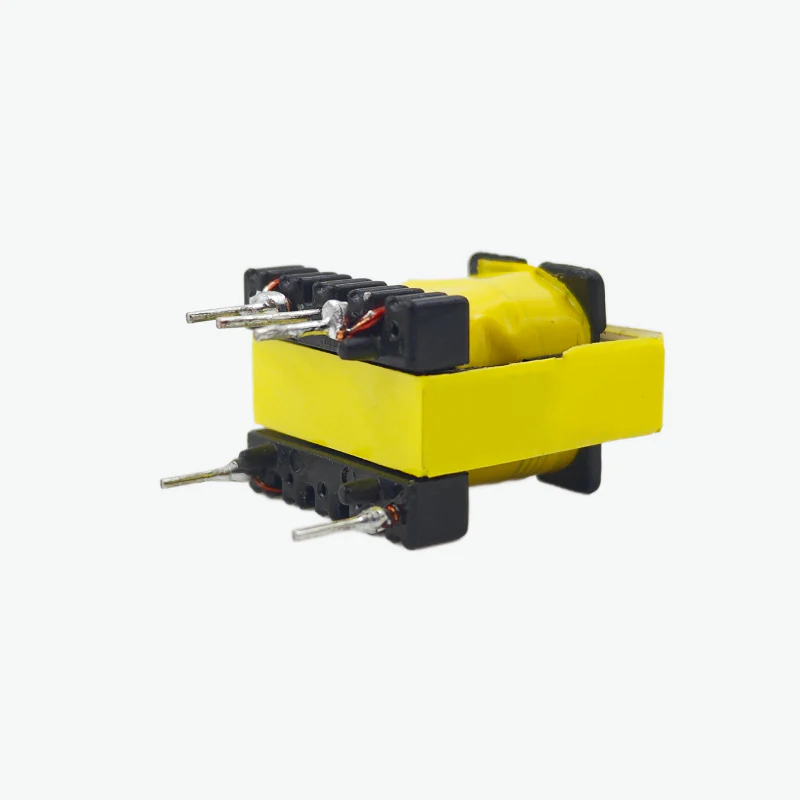

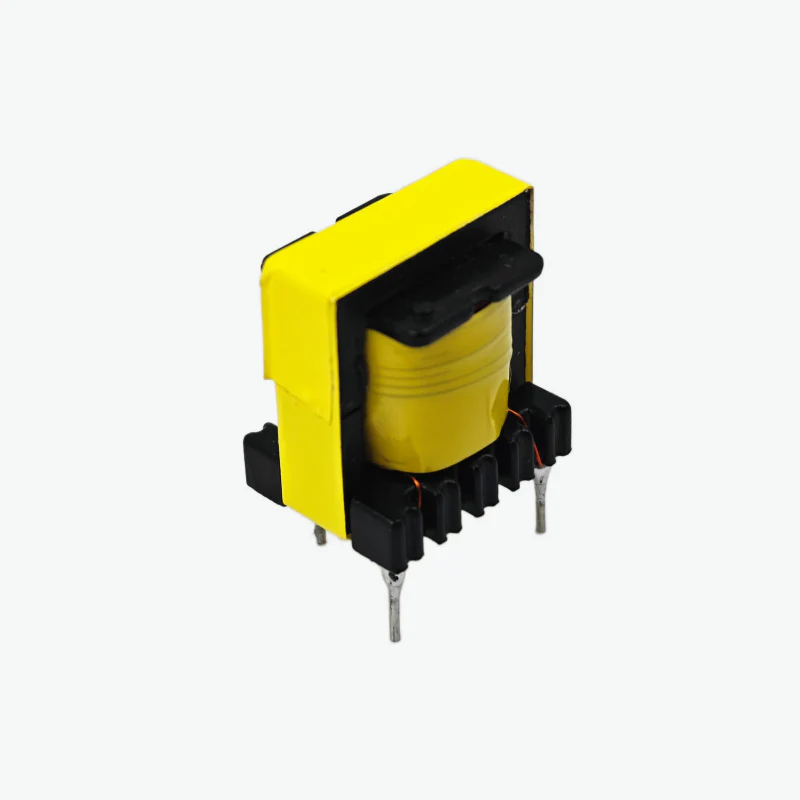

The EE16 High-Frequency SMPS Transformer is a compact and efficient transformer designed for use in switch-mode power supplies (SMPS) with power ratings up to 10 watts. Built with a PC40 core and high-grade copper windings, it offers reliable isolation and stable voltage conversion. Its wide operating frequency range makes it suitable for a variety of applications in AC-DC or DC-DC converters, adapters, and power modules.

Features of EE16 SMPS 10W Transformer:

1. EE16 core with PC40 ferrite material for minimal core losses
2. Suitable for 10W power supply circuits
3. Wide working frequency range: 20kHz to 500kHz
4. Turns ratio of 90:11 for effective voltage step-down or step-up
5. High-grade copper windings for improved conductivity and durability
6. Compact design ideal for PCB mounting
7. Through-hole mounting for secure placement
8. Capable of withstanding temperature extremes from -15°C to +105°C

Specifications of EE16 SMPS 10W Transformer:

• Model Number: EE16
• Core Material: PC44
• Phase: Single
• Power Rating: 10 Watts
• Primary Inductance: ~1.0mH
• Turns Ratio: 90:11
• Working Frequency: 20kHz ~ 500kHz
• Winding Material: High-Grade Copper
• Temperature Range: -15°C to +105°C
• No. of Poles: 5 Pin
• Mounting Style: Through Hole
• Dimensions(L×B×H): 16.3 x 12.5 x 19 mm

Note: It is a switching power supply power transformer and can not be used directly with 220V 50Hz. Direct connection with 50Hz AC will burn the transformer.

Package Includes:

1 × EE16 SMPS High Frequency 10 Watt PCB Mount Transformer
