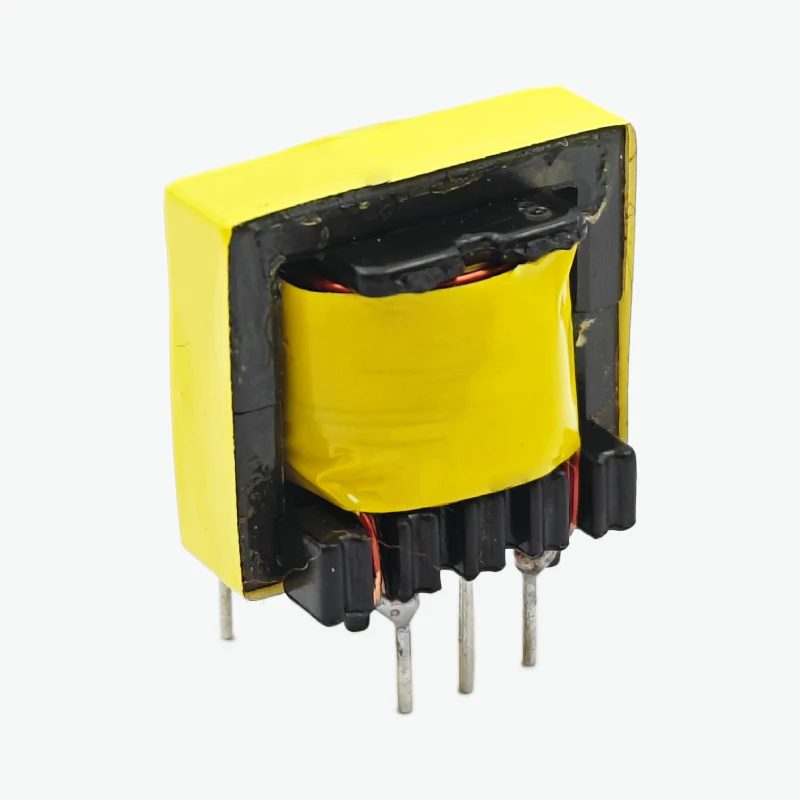

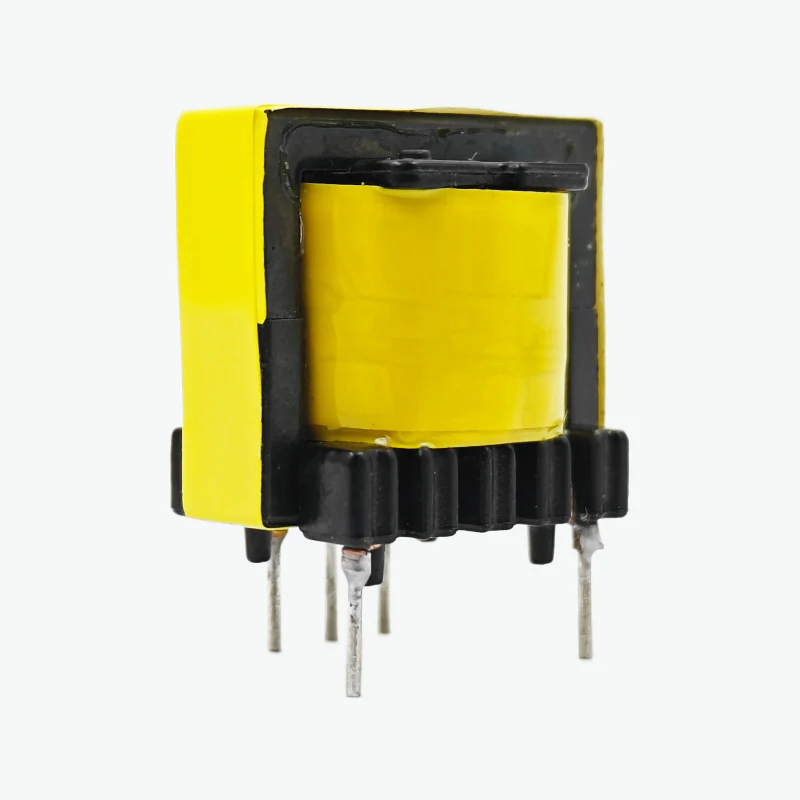

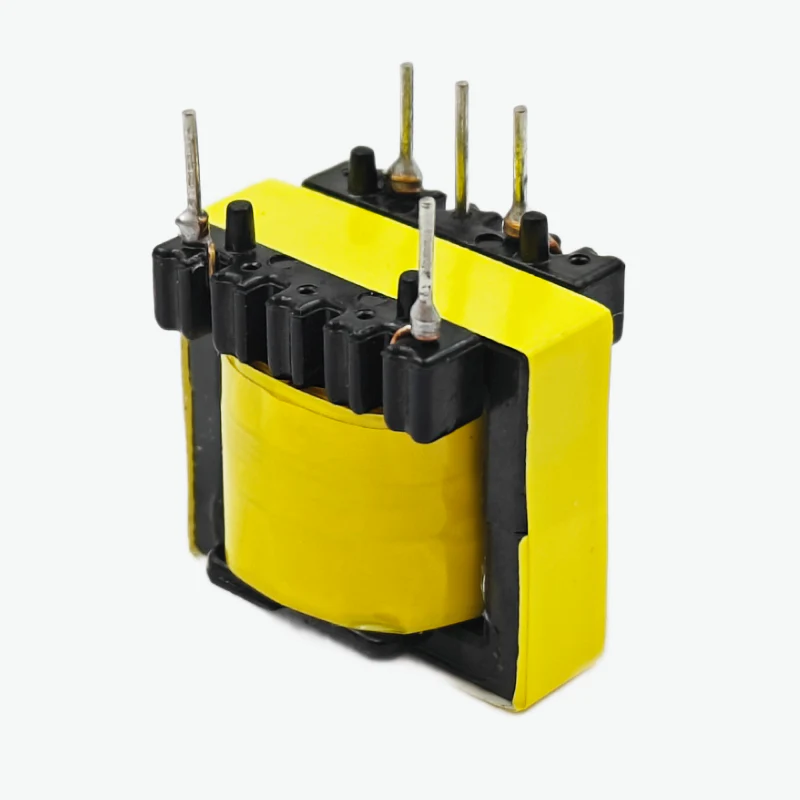

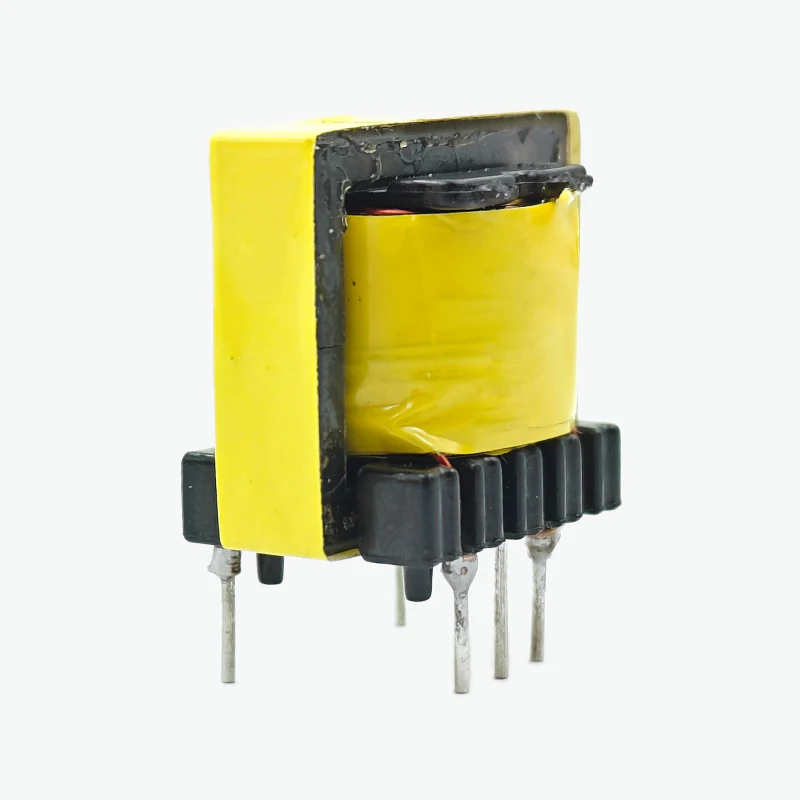

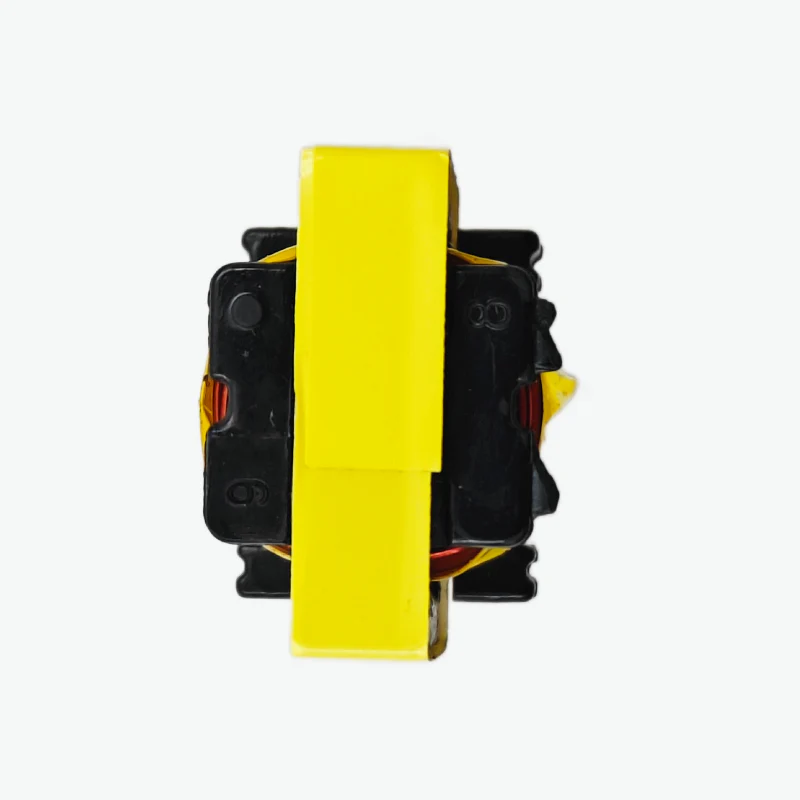

The EE19 High-Frequency SMPS Transformer is designed for compact, efficient power delivery in switch-mode power supply (SMPS) circuits with power ratings up to 20 watts. Featuring a PC40 ferrite core and precision-wound high-grade copper wire, this transformer ensures reliable isolation and consistent voltage conversion. With its broad operating frequency range and sturdy construction, it's ideal for use in AC-DC or DC-DC converters, power adapters, and various low-power modules.

Features of EE19 SMPS 20W Transformer:

1. EE19 core with PC40 ferrite material for low core losses
2. Supports up to 20W power supply circuits
3. Wide working frequency range: 20kHz to 500kHz
4. High-grade copper windings for excellent conductivity and long-term durability
5. Compact form factor optimized for PCB mounting
6. Through-hole mounting ensures secure and stable installation

Specifications of EE19 SMPS 20W Transformer:

• Model Number: EE19
• Core Material: PC40
• Phase: Single
• Power Rating: 20 Watts
• Primary Inductance: ~1.2mH
• Turns Ratio: 130:16
• Working Frequency: 20kHz ~ 500kHz
• Winding Material: High-Grade Copper
• Temperature Range: -15°C to +105°C
• No. of Poles: 5 Pin
• Mounting Style: Through Hole
• Dimensions (L×B×H): 19.3mm x 12.6mm x 19.1mm
• Weight: 10g

Note: This is a switching power supply transformer and is not suitable for direct use with 220V 50Hz mains power. Connecting it directly to 50Hz AC will damage the transformer.

Package Includes:

1 × EE19 SMPS High Frequency 20 Watt PCB Mount Transformer
