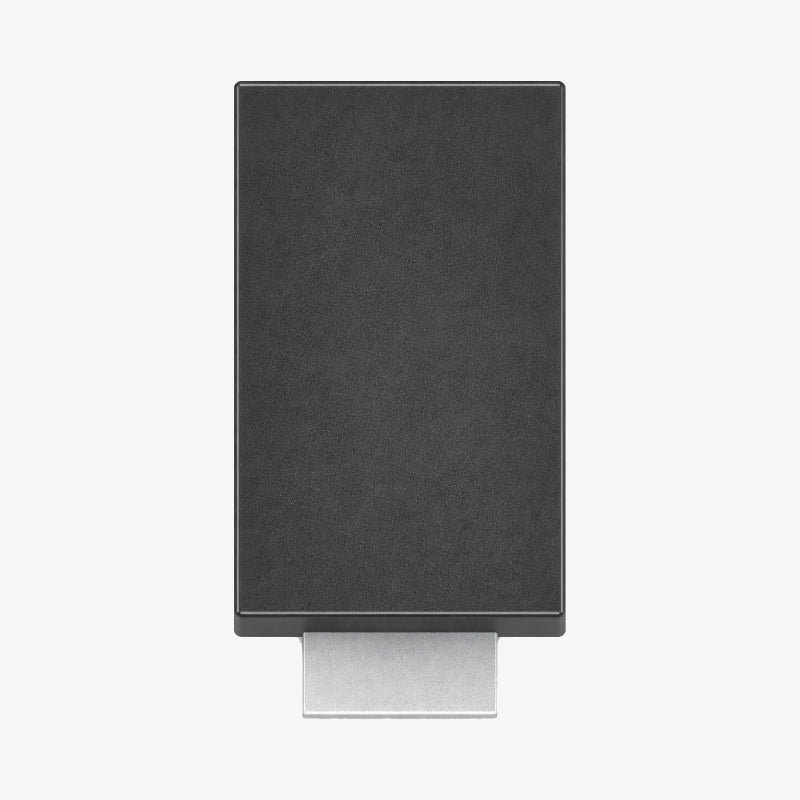

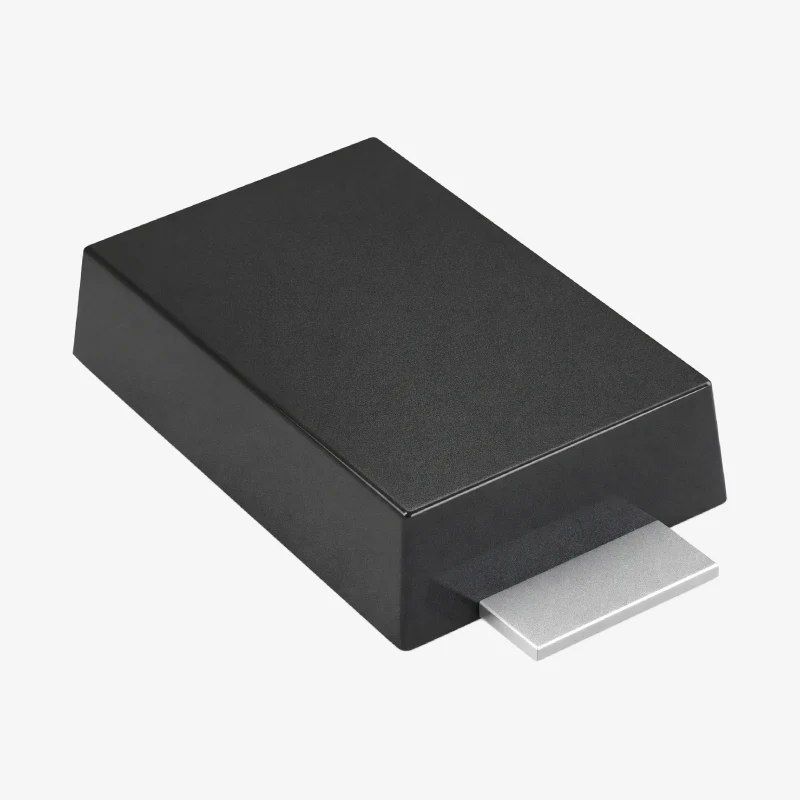

600V 2A 35ns Fast Recovery Rectifier Diode (ES2JBF) - DO-214AA SMBF Package is a fast recovery rectifier diode designed for high-efficiency and high-frequency switching applications, offering a 2A average rectified current, 600V DC reverse voltage capability, low forward voltage drop of 1.7V at 2A, ultra-fast reverse recovery time of 35 ns, and reliable performance in compact SMBF surface-mount form, making it suitable for SMPS, inverters, and power conversion circuits.

Features:

1. Fast recovery diode for high-frequency switching
2. 600V DC reverse voltage capability
3. 2A average rectified current rating
4. Low forward voltage drop of 1.7V at 2A
5. Ultra-fast reverse recovery time of 35 ns
6. High efficiency rectification performance
7. RoHS compliant construction

Specifications:

• Product Type: Fast Recovery Rectifier Diode
• Rated Voltage: 600 V DC
• Rated Current: 2 A
• Forward Voltage: 1.7 V @ 2 A
• Reverse Recovery Time: 35 ns
• Mounting Type: SMD
• Package Type: SMBF
• Operating Temperature: -55°C to +150°C
• Applications: SMPS rectification, high-frequency converters, inverters, freewheeling circuits, power management electronics

Package Includes:

1 ×600V 2A 35ns Fast Recovery Rectifier Diode (ES2JBF) - DO-214AA SMBF Package
