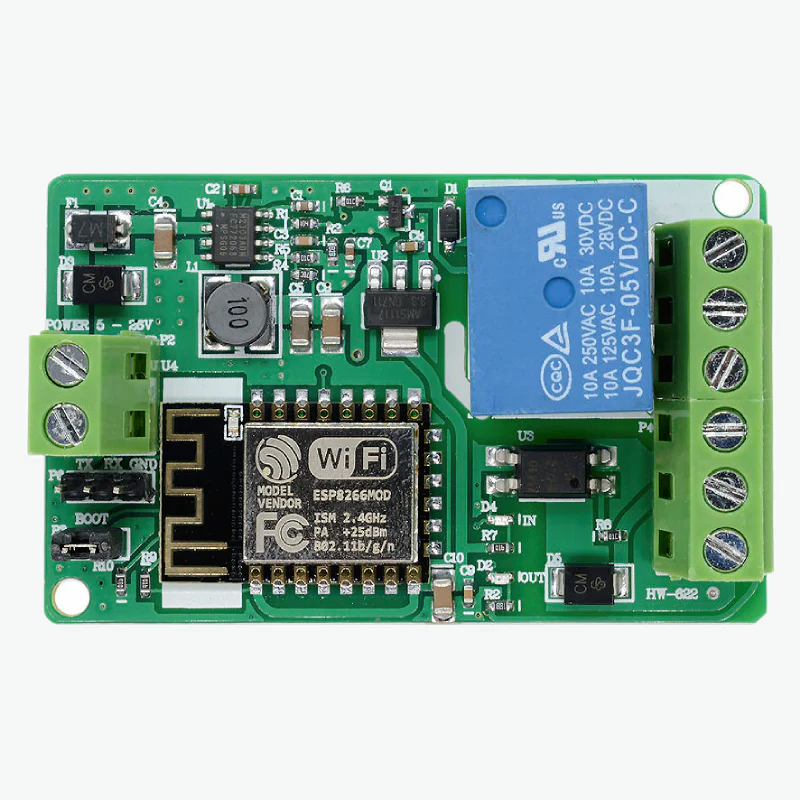

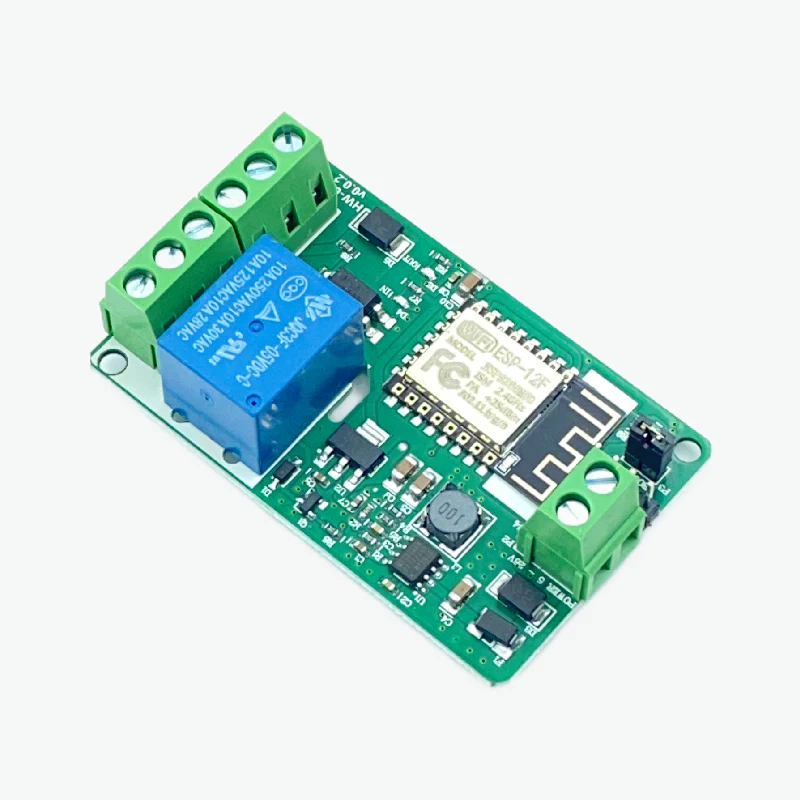

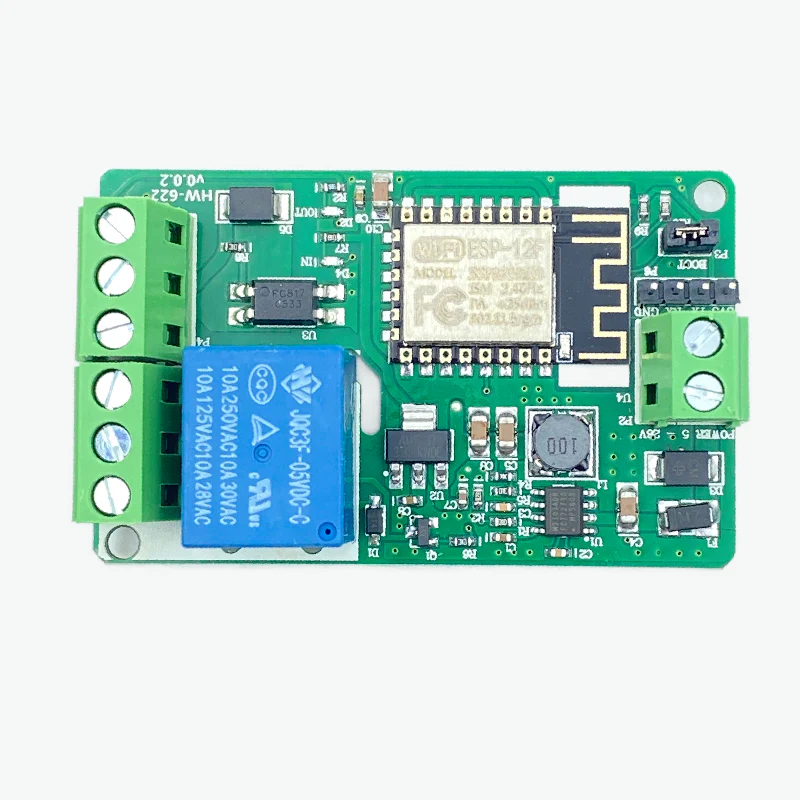

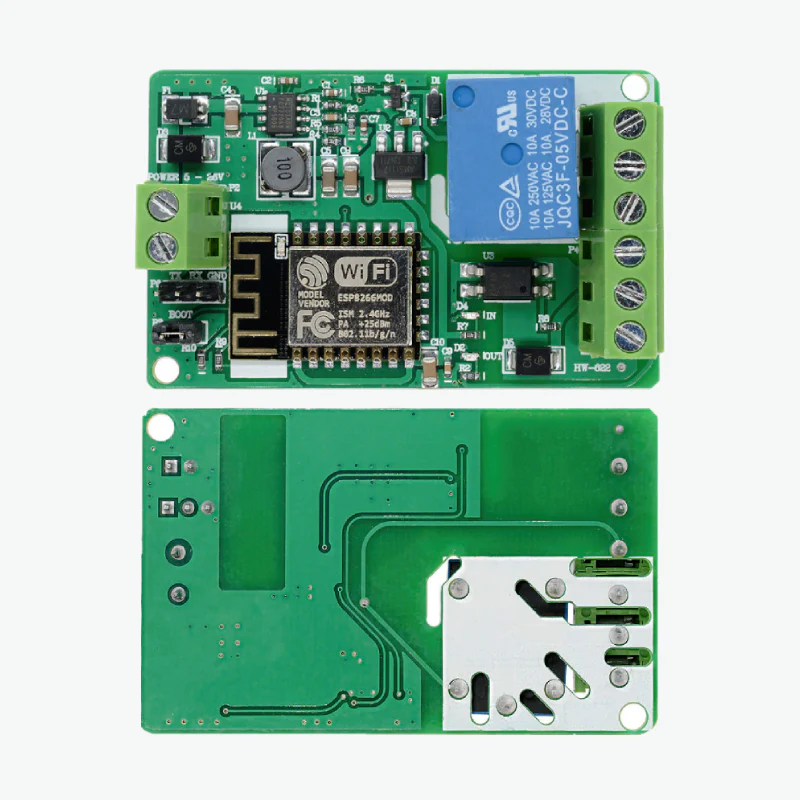

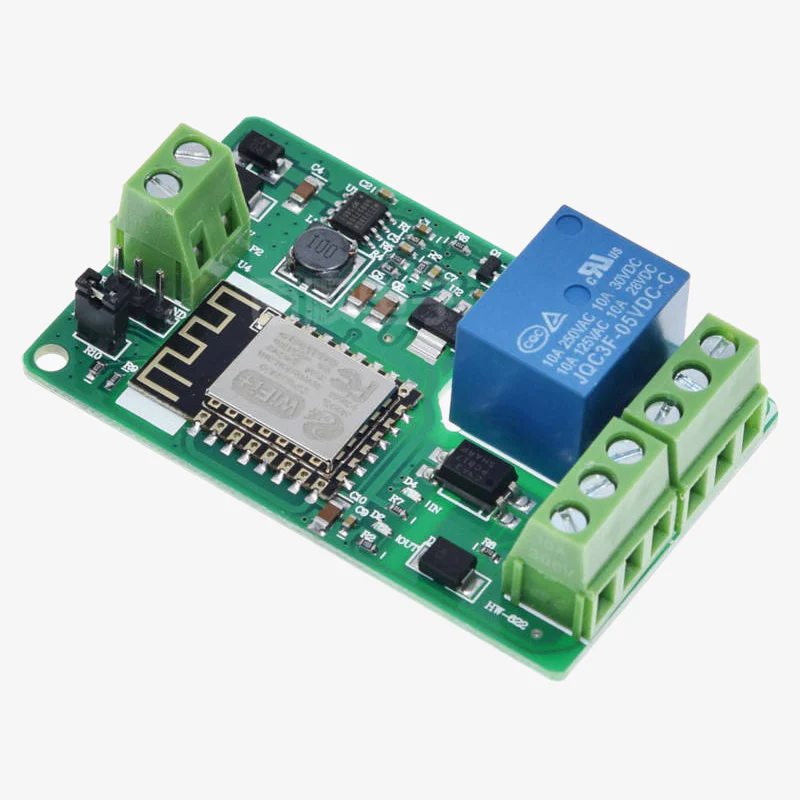

The ESP8266-12E 10A 220V Network Relay WiFi Module is a smart IoT control module designed for remote switching and automation of high-voltage appliances via WiFi. Powered by the ESP8266-12E chipset, this module enables wireless control through mobile apps, web interfaces, or custom firmware, making it ideal for smart home systems, industrial automation, and IoT-based switching applications.

It supports wide DC input voltage from 7V to 30V, allowing flexible power supply options, while the onboard 10A relay provides safe and reliable control of AC loads up to 220V. With integrated GPIO support and programmable capability, users can easily integrate it into custom automation projects.

1. Built-in ESP8266-12E WiFi module for wireless control
2. High-power relay rated up to 10A for 220V AC loads
3. Wide DC input voltage range: 7V – 30V
4. Supports remote control via WiFi network
5. Compatible with IoT platforms and custom firmware
6. Can be controlled using mobile app or web interface
7. Ideal for smart home automation and remote switching
8. Stable operation with onboard isolation and protection
9. Compact PCB design for easy mounting
10. Supports manual and automatic control modes

• Module Type: WiFi Network Relay Module
• Controller Chip: ESP8266-12E
• Relay Rating: 10A @ 220V AC
• Input Voltage: DC 7V – 30V
• Output Type: Relay Switching
• Wireless Standard: IEEE 802.11 b/g/n
• Communication: WiFi
• Control Method: App / Web / Serial Command
• Operating Frequency: 2.4GHz
• Trigger Mode: High/Low Level Control
• Load Type: AC/DC Appliances
• Isolation Type: Relay-based electrical isolation
• Operating Temperature: -20°C to +70°C
• Dimensions: Compact PCB design (approx.)
• Mounting Type: PCB mount with screw terminals

1 × ESP8266-12E 10A 220V Network Relay WiFi Module
