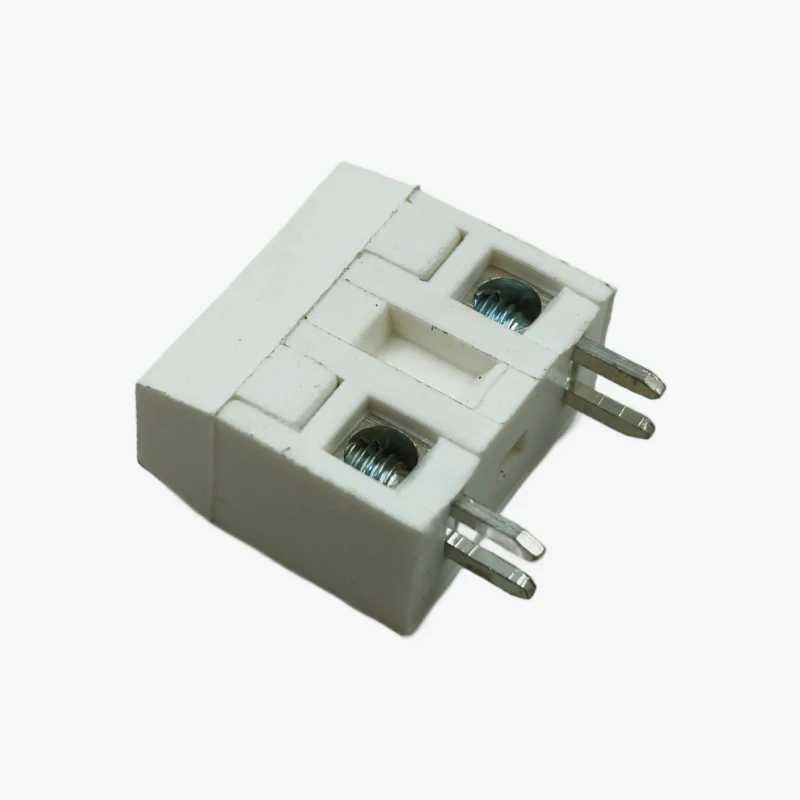

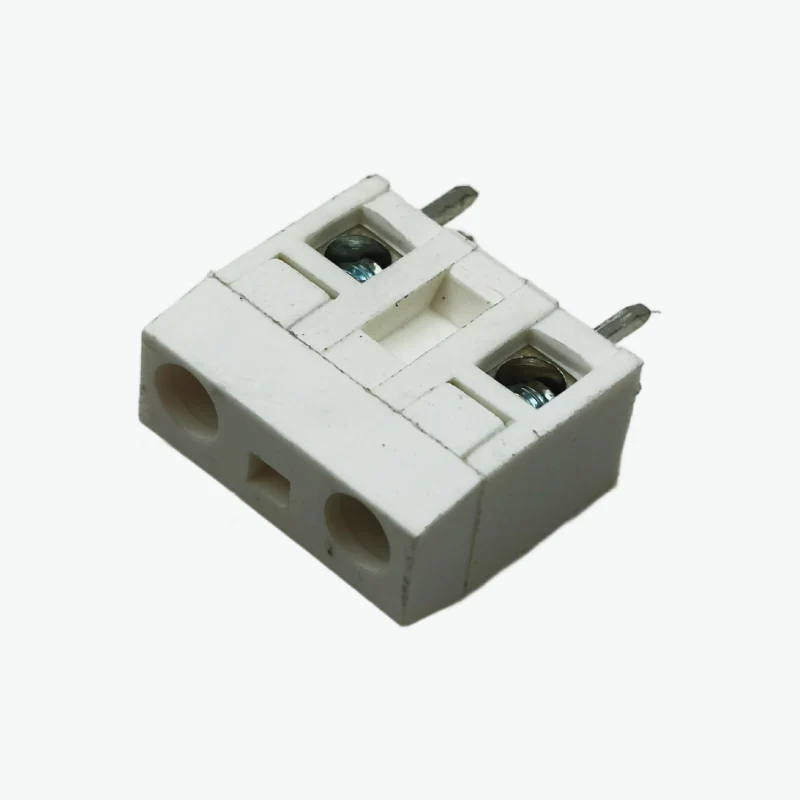

The 2 Terminal 4 Pin 10.16mm Pitch PCB Mount Screw Terminal Block Connector is a high-quality screw-type connector designed for secure and stable wire-to-board connections in high-current and industrial applications. Its dual-pin per terminal design offers enhanced mechanical strength and superior electrical conductivity, making it ideal for power distribution, control panels, and automation equipment.

Features:

1. 2-terminal connector with 4 PCB pins for improved stability and current flow
2. 10.16mm pitch ensures excellent insulation and voltage protection
3. Screw-type clamp provides strong, vibration-resistant wire connections
4. Supports thicker wires for heavy-duty and high-power applications
5. Easy to mount on PCB boards—no soldering of wires required
6. Flame-retardant and durable body ensures long operational life
7. Ideal for power modules, control systems, and industrial automation setups
8. RoHS compliant and built for demanding environments

Specifications:

• Model: 2 Terminal 4 Pin 10.16mm Pitch Terminal Block Connector
• Type: Screw Terminal Block (PCB Mount)
• Number of Terminals: 2
• Number of Pins: 4
• Pitch: 10.16mm
• Rated Voltage: Up to 250V
• Rated Current: Up to 10A
• Wire Size Compatibility: 0.5-2.5mm2(approx.)
• Mounting Type: Through Hole (PCB Mount)
• Body Material: Flame-retardant Plastic\
• Scrwe size: M3
• Screw Type: Steel, zinc-plated for corrosion resistance
• Operating Temperature Range: -40°C to +105°C
• Applications: Power supplies, industrial machinery, automation systems, and control circuits

Package Includes:

1 × 2 Terminal 4 Pin PCB Mount Terminal Block Connector (Screw Type) – 10.16mm Pitch
