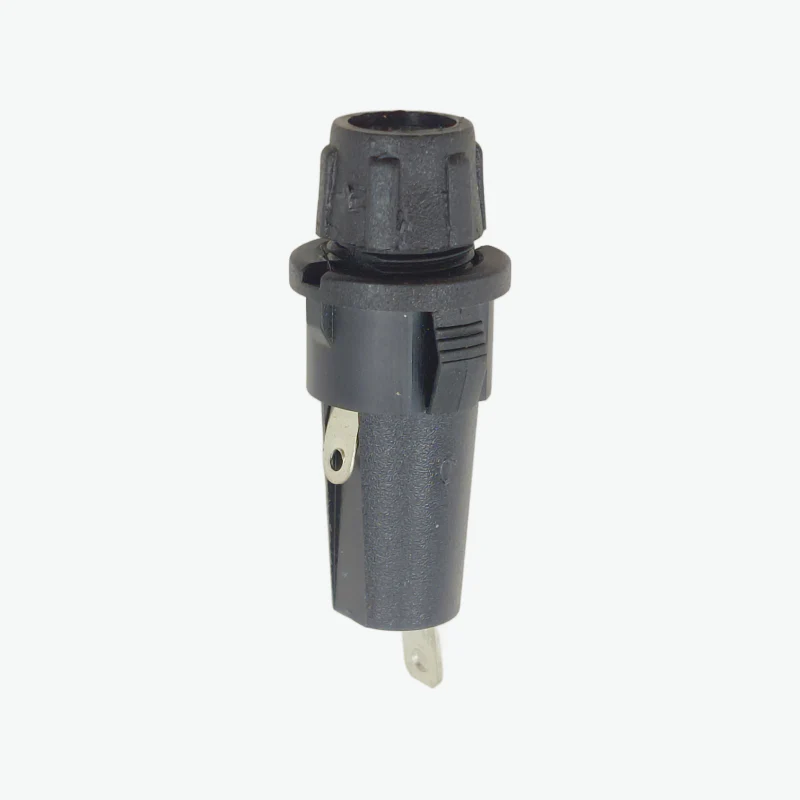

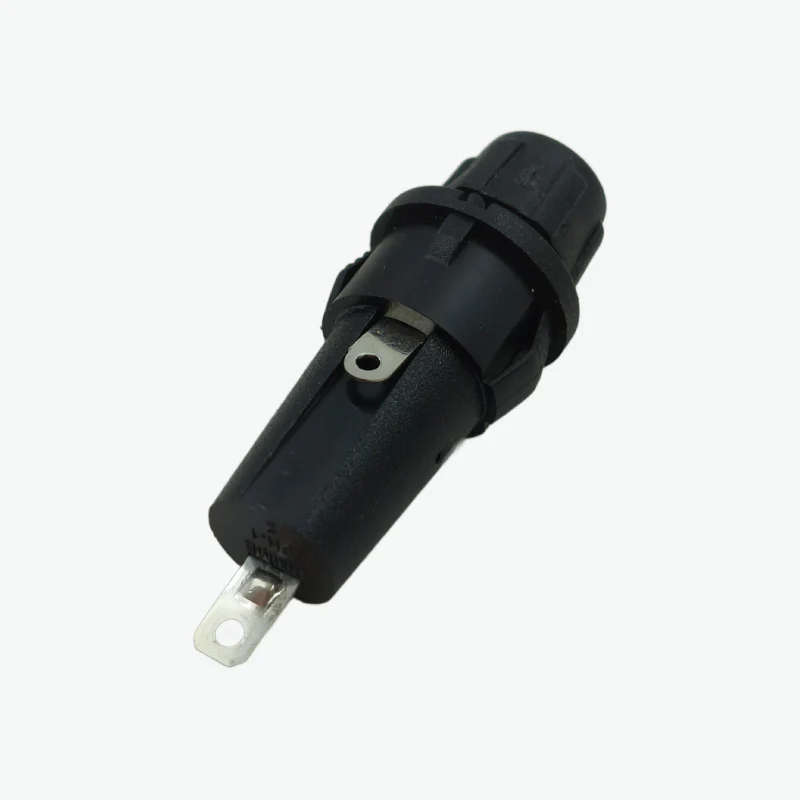

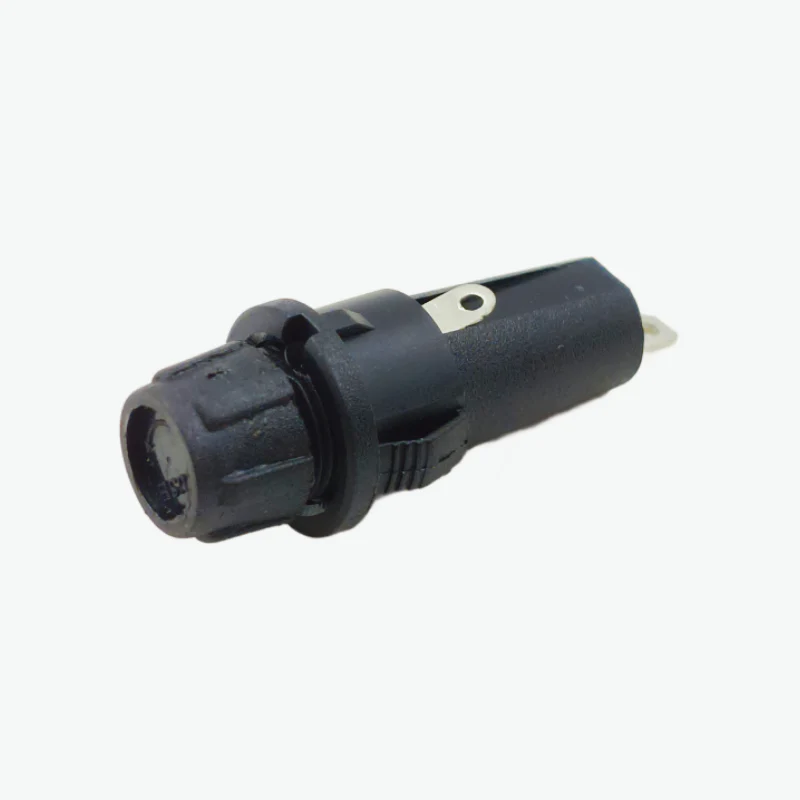

The Snap-In Panel Mount Fuse Holder offers a secure and compact solution for mounting 5×20mm fuse links in electronic and electrical devices. Designed for quick snap-in panel installation, it eliminates the need for screws while maintaining a firm hold. The durable Polyamide Glass-Filled (G.F.) body ensures excellent heat resistance and insulation, while the brass tin-plated contacts provide consistent electrical conductivity and long-lasting performance.

Features:

1. Snap-in panel mount design for fast and easy installation
2. Compatible with standard 5×20mm fuse links
3. Screw-in cap design allows easy fuse replacement
4. Durable Polyamide G.F. body ensures high insulation and temperature resistance
5. Brass tin-plated contacts for stable conductivity and corrosion protection
6. Compact and lightweight for efficient panel design

Specifications:

• Type: Snap-In Panel Mount Fuse Holder
• Mounting Style: Panel, Snap-In
• Material: Polyamide G.F. (Glass-Filled)
• Fuse Size: 5×20mm
• Rated Current/Voltage: 6.3A / 250V AC
• Terminals: Solder Type

• Current Carrying Parts: Brass, Tin-Plated

• Cap Design: Screw-In

• Panel Thickness (Max.): 3mm

• Insulation Resistance: ≥1000 MΩ

• Contact Resistance (Initial): ≤10 mΩ

• High Voltage Breakdown: 2KV AC for 1 minute

• Permissible Temperature (With/Without Load): -20°C to +85°C

• Approximate Weight: 4.1g

Package Includes:

1 × Snap-In Panel Mount Fuse Holder – 5×20mm 6.3A 250V AC
