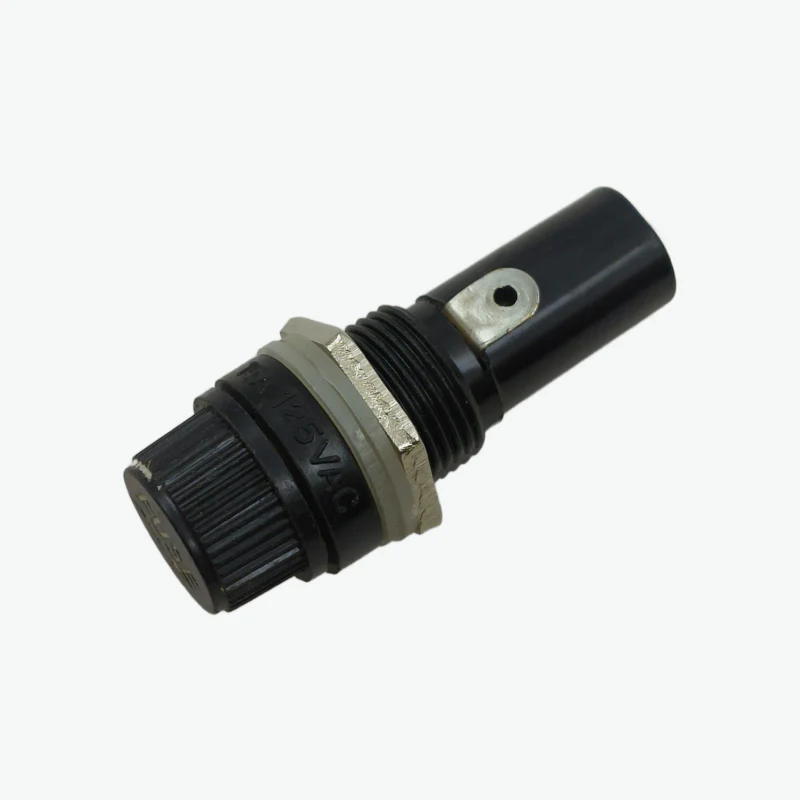

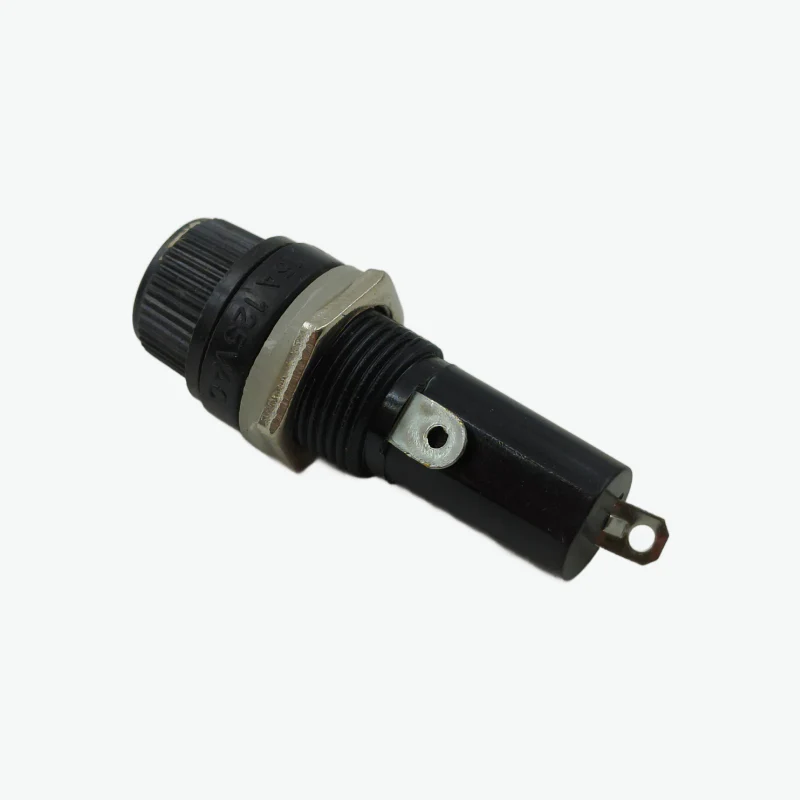

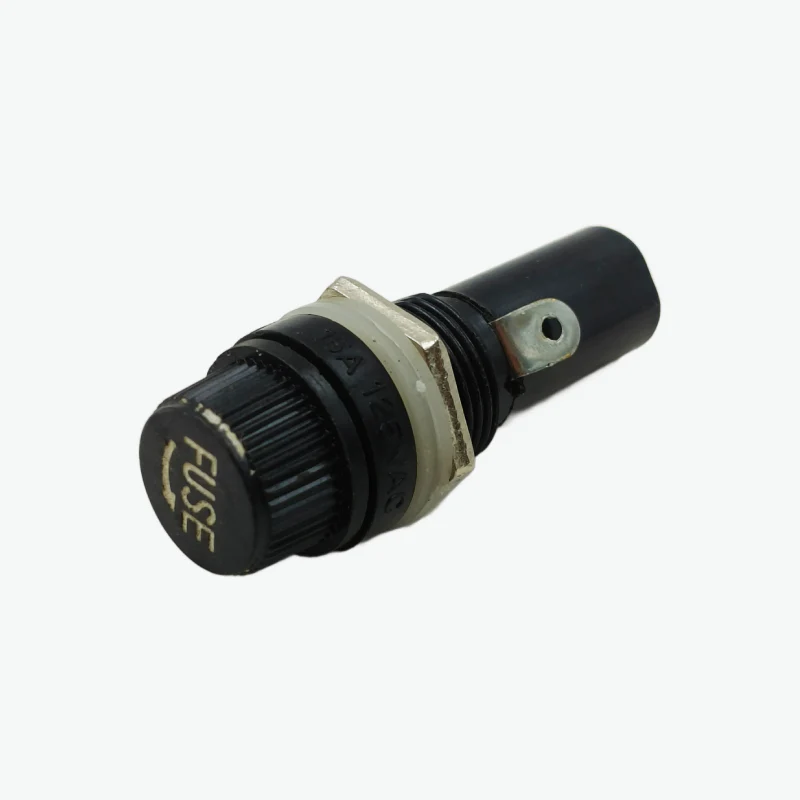

The Screw-In Coin Slot Fuse Holder is a durable and reliable solution for mounting 6.3×32mm fuses in panel applications. Designed for easy installation with a coin slot, it ensures secure and stable fuse retention while providing excellent electrical performance. Its polyamide insulation, brass tin-plated contacts, and high dielectric strength make it suitable for industrial, commercial, and consumer electronic applications.

Features:

1. Screw-in fuse holder with coin slot for easy installation and removal
2. Supports standard 6.3×32mm fuse links

3. Polyamide insulation for high mechanical strength and electrical safety
4. Brass, tin-plated contacts ensure reliable conductivity
5. High insulation resistance
6. Ideal for panel mounting, screw-up style installation

Specifications:

• Type: Screw-In Coin Slot Fuse Holder
• Fuse Size: 6.3×32mm
• Rated Current/Voltage: 10A / 250V AC
• Mounting Style: Panel, Screw-Up
• Contact Material: Brass, Tin-Plated
• Insulation Material: Polyamide
• Contact Resistance (Initial): ≤10 mΩ
• Insulation Resistance: ≥1000 MΩ
• High Voltage Breakdown: 2KV AC for 1 Minute

• Cap Design: Screw-In With Coin Slot
• Approx. Weight: 9.5g


Package Includes:

1 × Screw-In Coin Slot Fuse Holder – 6.3×32mm, 10A 250V AC
