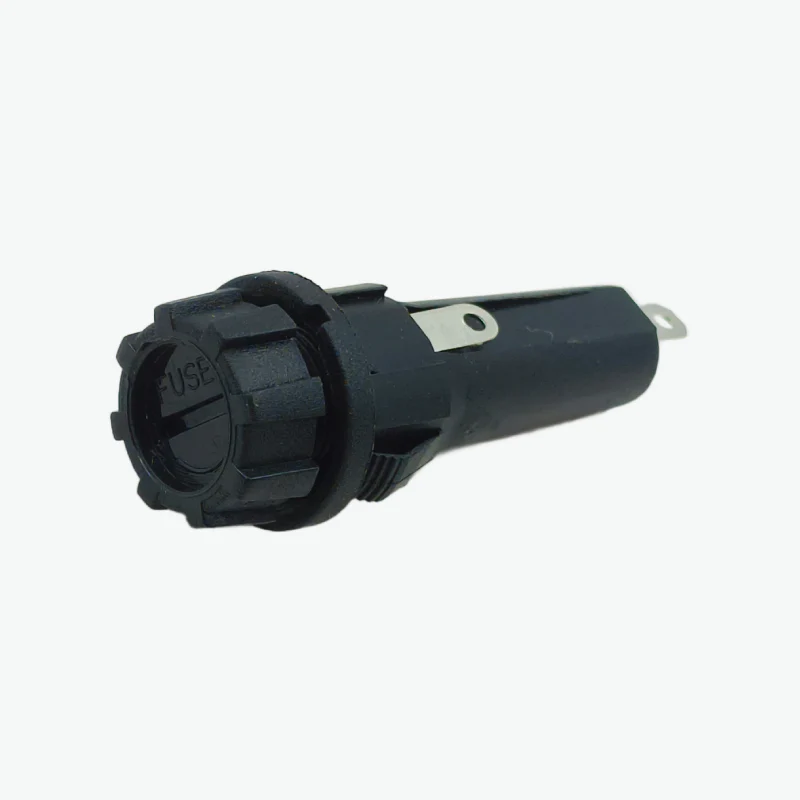

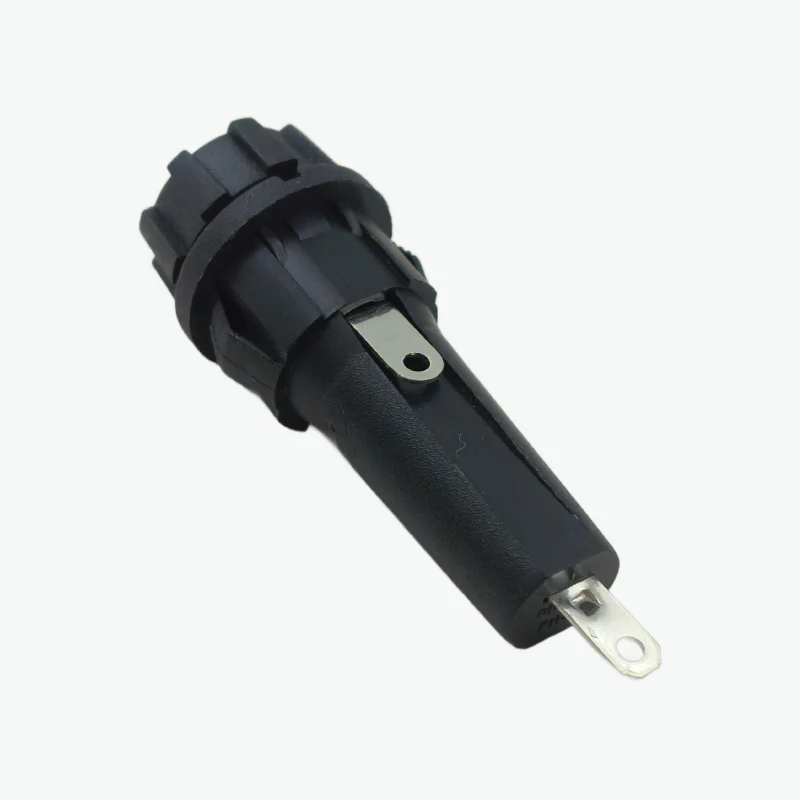

The Snap-In Panel Mount Fuse Holder is a reliable and easy-to-install solution for securely housing 6.3×32mm fuses in electronic and industrial devices. Designed with a snap-in mounting style, it ensures quick panel installation without the need for additional hardware. The coin-slot screw cap design allows easy fuse replacement, while the thermoplastic body and brass tin-plated contacts ensure durability, safety, and consistent performance under varying load conditions.

Features:

1. Snap-in panel mount design for quick and tool-free installation
2. Compatible with standard 6.3×32mm fuse links
3. Screw-in coin-slot cap for easy fuse replacement
4. Durable engineering thermoplastic housing for mechanical and thermal strength
5. Brass tin-plated contacts ensure excellent conductivity and corrosion resistance
6. High insulation and breakdown voltage for enhanced safety

Specifications:

• Type: Snap-In Panel Mount Fuse Holder

• Mounting Style: Panel, Snap-In

• Material: Engineering Thermoplastic

• Fuse Size: 6.3×32mm

• Rated Current/Voltage: 10A / 250V AC

• Terminals: Solder Type

• Current Carrying Parts: Brass, Tin-Plated

• Cap Design: Screw-In with Coin Slot

• Panel Thickness (Max.): 3mm

• Insulation Resistance: ≥1000 MΩ

• Contact Resistance (Initial): ≤10 mΩ

• High Voltage Breakdown: 2KV AC for 1 minute

• Permissible Temperature (With/Without Load): 0°C to +85°C

• Permissible Temperature for Soldering: 270°C for 5 seconds max

• Approximate Weight: 9.5g

Package Includes:

1 × Snap-In Panel Mount Fuse Holder - 6.3×32mm 10A 250V AC
