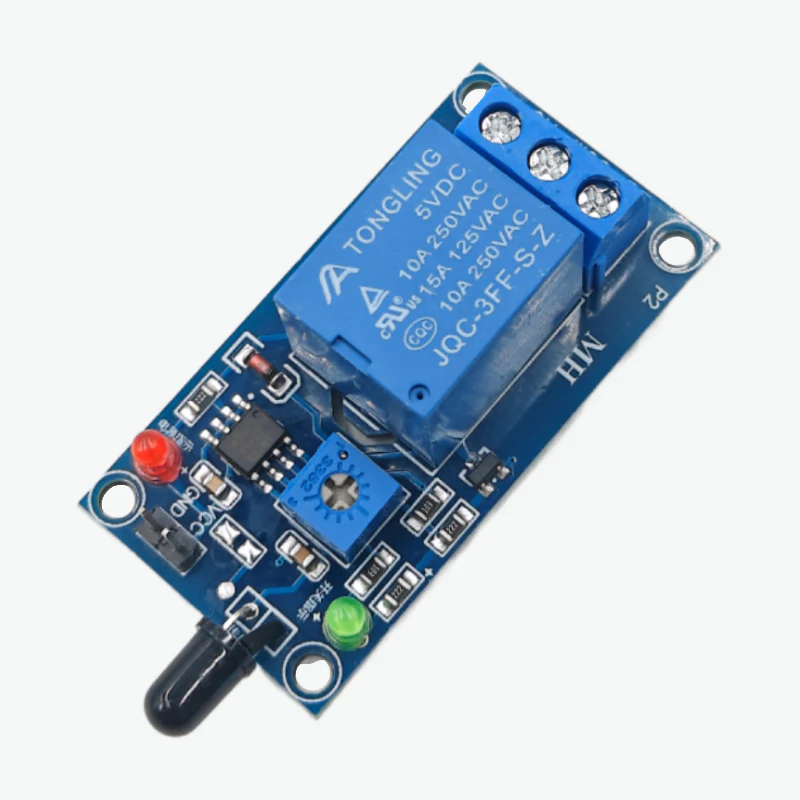

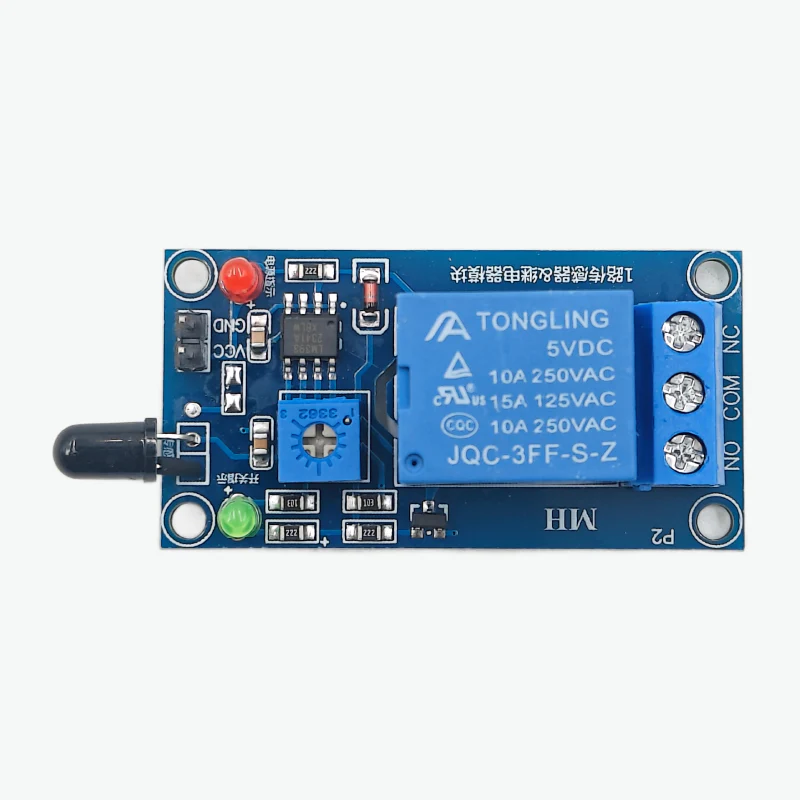

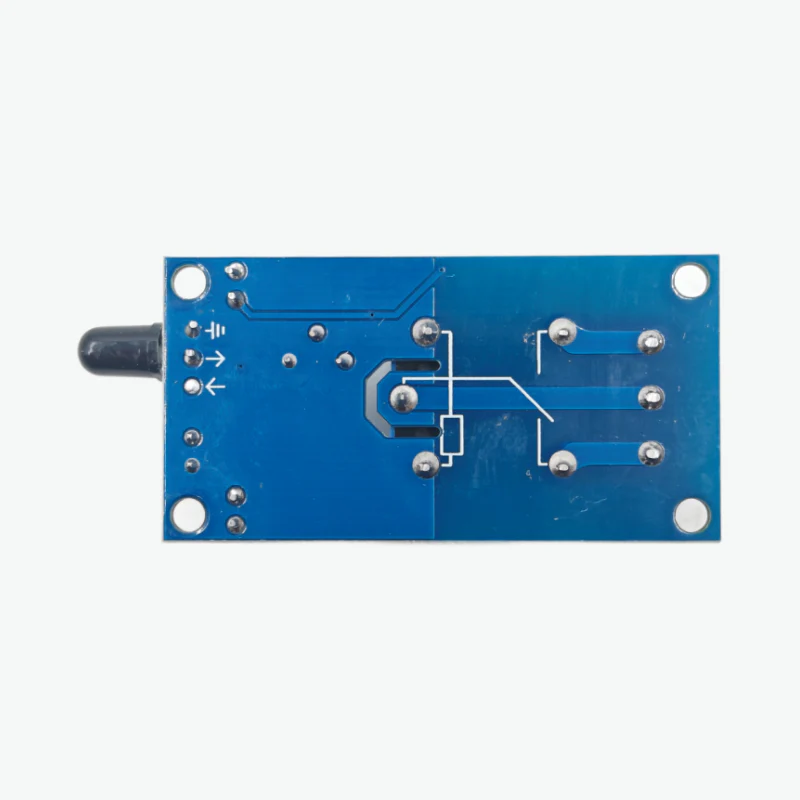

5V DC Flame Detection Sensor Relay Switch Module
The Flame Detection Sensor with Relay Switch Module is designed to detect fire or flames using infrared light waves emitted by the flame. It integrates a flame sensor and relay module to provide a reliable and efficient solution for fire detection systems. The module can activate connected devices like alarms or extinguishers when a flame is detected, ensuring quick responses in fire-prone environments.
5V DC Flame Detection Sensor Relay Module Features:
- Fire/Flame Detection: High sensitivity to infrared wavelengths between 760nm to 1100nm.
- Relay Integration: Built-in relay switch for triggering external devices when flames are detected.
- Adjustable Sensitivity: Onboard potentiometer allows fine-tuning of detection sensitivity.
- Wide Voltage Range: Operates efficiently between 3.3V and 5V.
- Indicator LEDs: Includes power and detection indicator LEDs for easy status monitoring.
- Durable Construction: Designed for reliable operation in industrial and domestic applications.
5V DC Flame Detection Sensor Relay Specifications:
- Operating Voltage: 3.3V to 5V DC
- Detection Range: 760nm to 1100nm IR wavelength
- Relay Output Voltage: Supports up to 250V AC or 30V DC
- Trigger Mode: Active low signal
Package Includes:
1 x 5V DC Flame Detection Relay Switch Module
