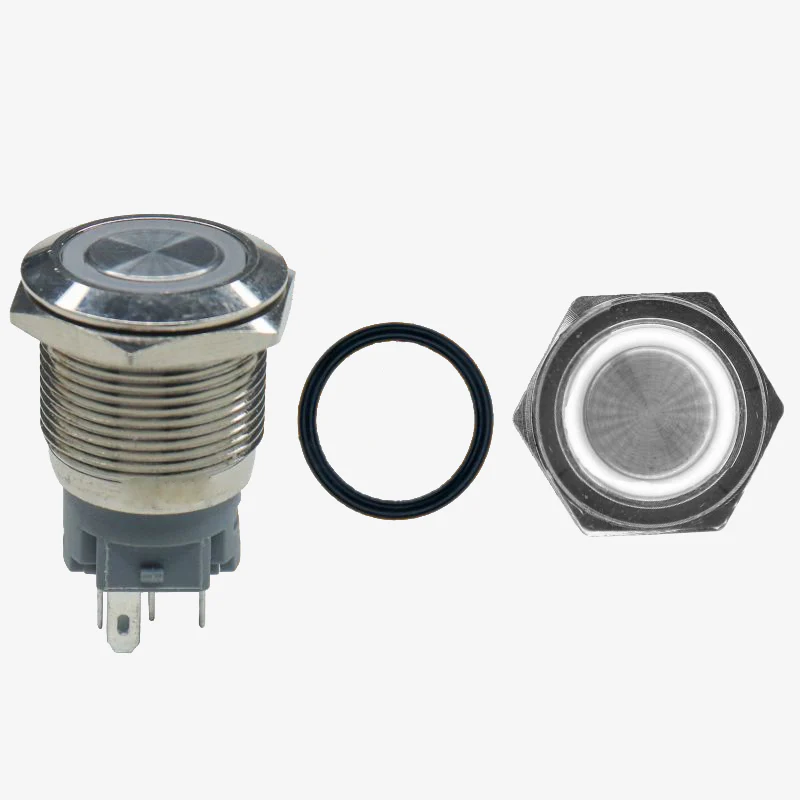

The Flat Head 12mm Self-Lock Metal Push-Button Switch is a robust and reliable panel-mounted switch designed for ON/OFF latching control. Each press toggles the state, making it ideal for system activation, power switching, and control interfaces. The integrated 12V white LED ring provides clear visual feedback, while the stainless-steel construction ensures longevity and durability.

Features:

1. Self-locking (latching) mechanism for stable ON/OFF control
2. Integrated white LED ring for 12V illumination
3. Flat head stainless-steel design for long service life
4. 12mm mounting hole suitable for control panels and compact enclosures
5. Long mechanical lifespan with solid tactile action
6. Suitable for electronics projects, equipment switches, automotive mods, and DIY builds

Specifications:

• Switch Type: Self-lock (Latching), Non-Momentary
• LED Color: White
• LED Operating Voltage: 12V
• Mounting Hole Diameter: 12mm
• Head Style: Flat head
• Contact Configuration: 1NO + 1NC (varies; commonly 1NO)
• Operating Voltage (Contacts): Up to 250V AC / 24V DC
• Rated Current: 1A – 3A
• Body Material: Stainless Steel
• LED Life: > 40,000 hours
• Mechanical Life: > 100,000 cycles
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥100MΩ
• Operating Temperature: –25°C to +80°C
• Terminal Type: Solder lug/pin terminals
• Applications: Power switching, control panels, equipment activation, DIY kits, automotive systems

Package Includes:

1 × Flat Head 12mm 12V Ring Light Self-Lock Metal Push-Button Switch – White Light
