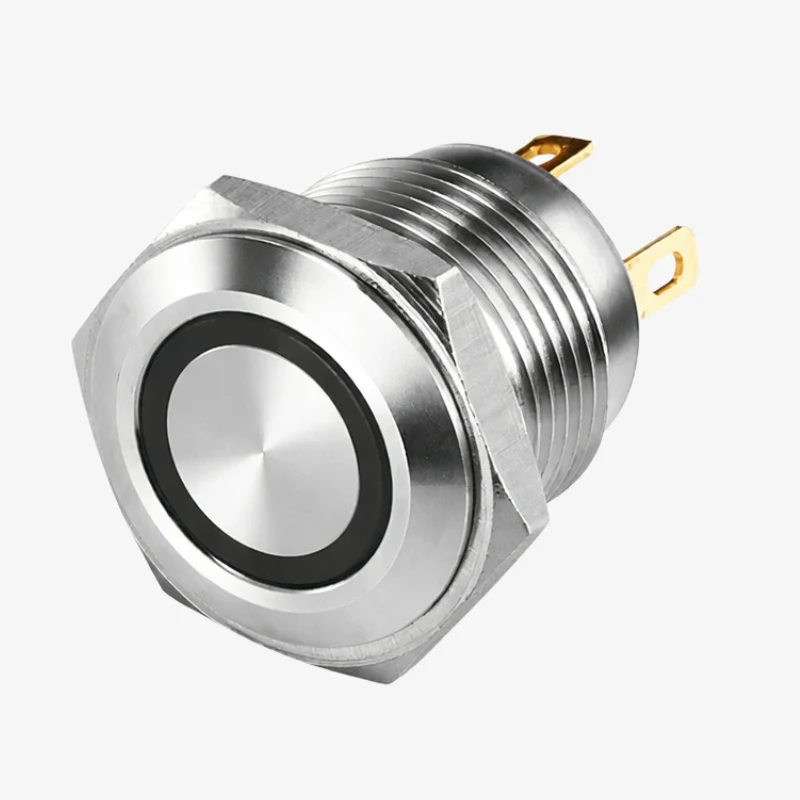

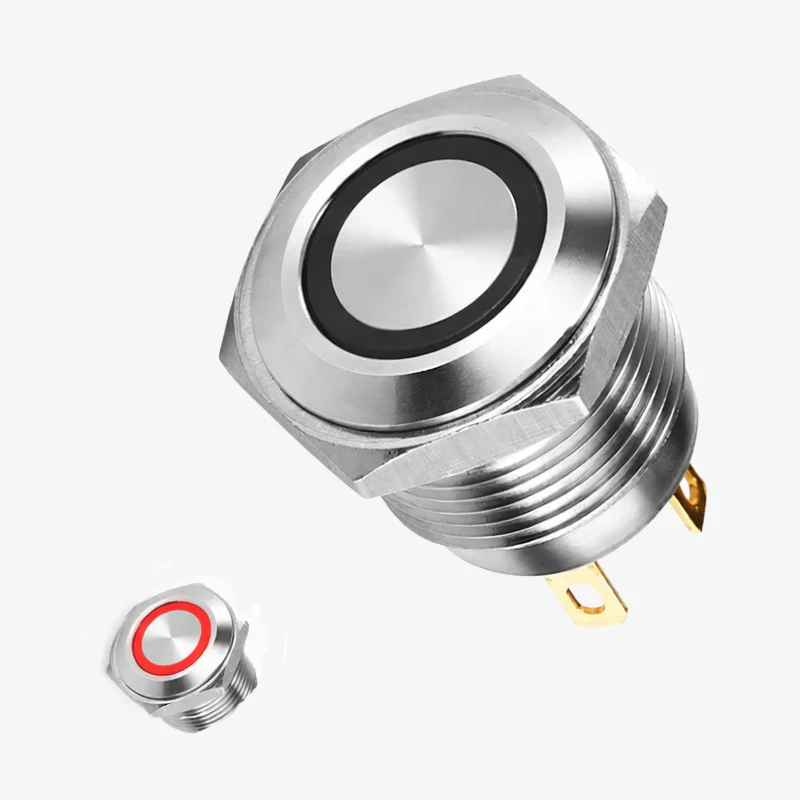

Flat Head 16mm 3V–6V Ring Light Non-Latching Metal Push-Button Switch – Red Light is a compact stainless steel momentary push-button switch designed for reliable control of start and stop functions in electronic and electrical equipment, featuring a flat head design with integrated red LED ring illumination, non-latching operation with normally open contact, short button stroke for quick response, and soldering feet terminals, making it suitable for automotive, marine, industrial, and household applications requiring instantaneous switching.

Features:

1. 16 mm panel-mount metal push-button switch
2. Non-latching (momentary) operation
3. Flat head design with red LED ring light
4. Operates on 3V–6V LED supply
5. Normally open contact configuration
6. Short button stroke for fast response
7. Durable stainless steel construction

Specifications:

• Product Type: Metal Push-Button Switch
• Mounting Size: 16 mm
• Operation Type: Non-Latching
• Contact Form: One Normally Open (NO)
• LED Voltage: 3V–6V
• Illumination Color: Red
• Material: Stainless Steel
• Button Stroke: ≤ 0.5 mm
• Contact Resistance: ≤ 50 mΩ
• Insulation Resistance: ≥ 50 MΩ

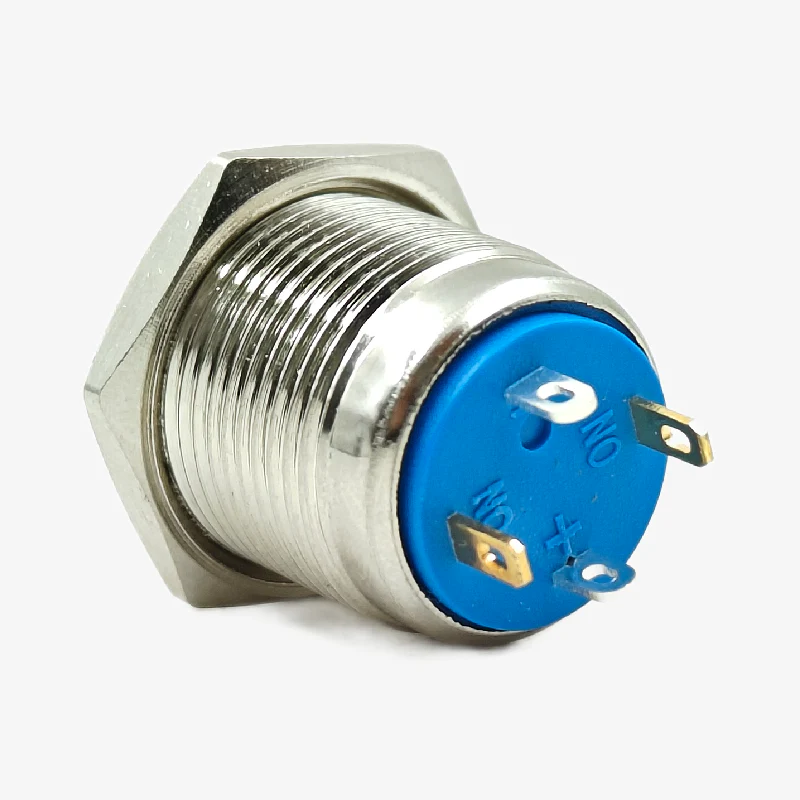

• Connection Method: Soldering Feet
• Applications: Automotive systems, trucks, ships, ignition systems, household doorbells, control panels, electronic equipment

Package Includes:

1 × Flat Head 16mm 3V-6V Ring Light Non-Latching Metal Push-Button Switch - Red Light
