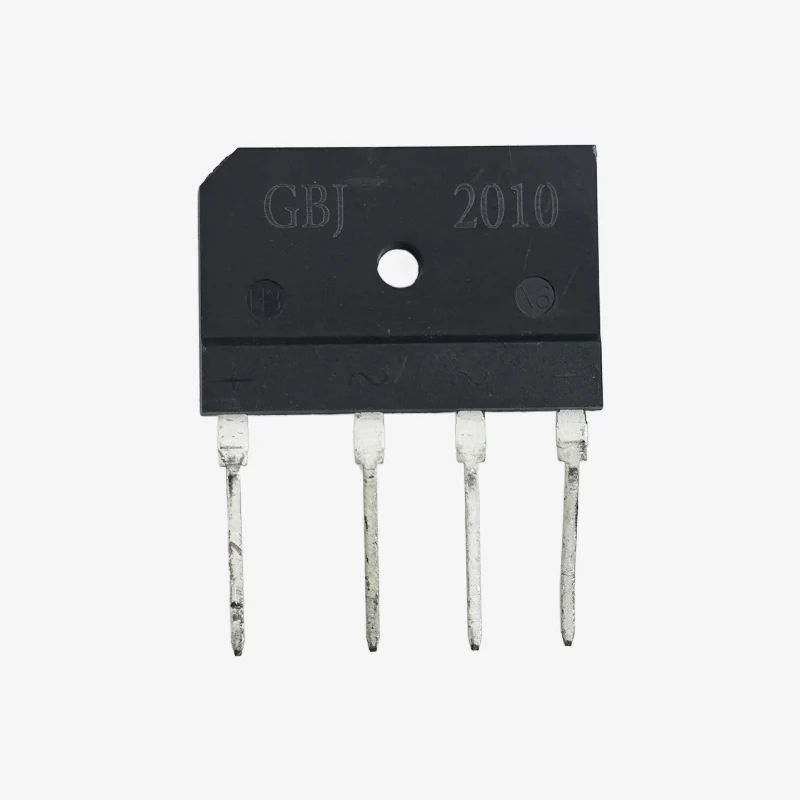

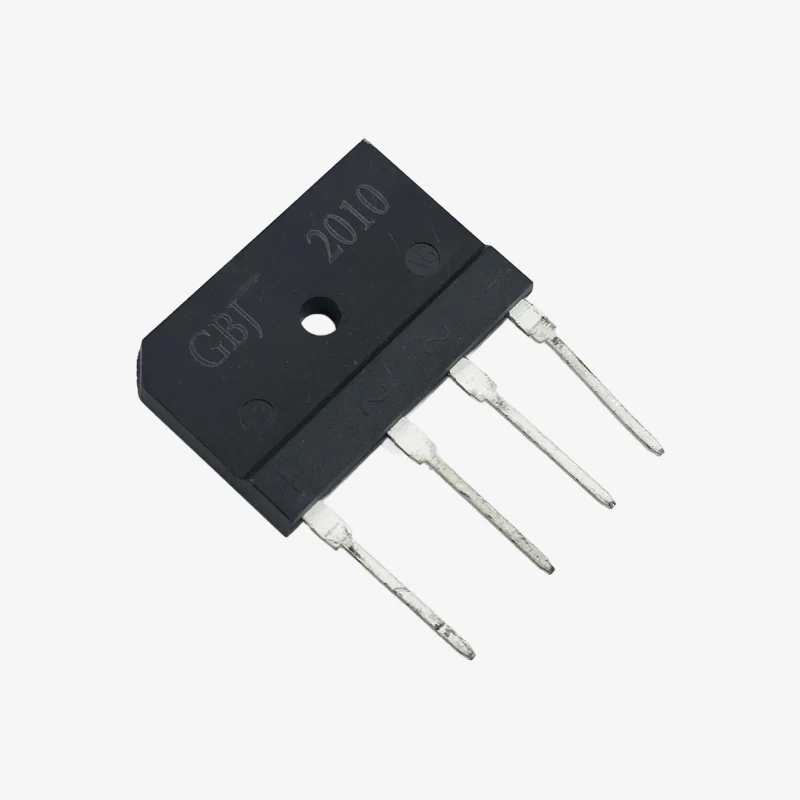

The GBJ2010 Bridge Rectifier 20A is a high-current through-hole rectifier designed for AC to DC conversion in demanding power applications. Built with a glass-passivated die and UL 94V-0 flame-rated molded plastic body, it ensures excellent surge capability and thermal reliability. Ideal for use in power supplies, inverters, motor drives, and UPS systems.

Features:

1. High forward current capacity up to 20A

2. Surge overload tolerance up to 240A peak

3. Glass-passivated die for enhanced stability

4. Low reverse leakage and forward voltage drop

5. High dielectric strength of 1500VRMS with RoHS compliance

Specifications:

• Average Forward Current (IF(AV)): 20A (TC = 110°C)

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Working Peak Reverse Voltage (VRWM): 1000V

• DC Blocking Voltage (VR): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 240A (8.3ms half-sine wave)

• Forward Voltage (VF): 1.05V at IF = 10A

• Reverse Current (IR) at 25°C: 10µA

• Reverse Current (IR) at 125°C: 500µA

• Thermal Resistance Junction-to-Case (RθJC): 0.8°C/W

• Typical Junction Capacitance (Cj): 60pF

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature (TSTG): -55°C to +150°C

Package Includes:

1 × GBJ2010 20A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
