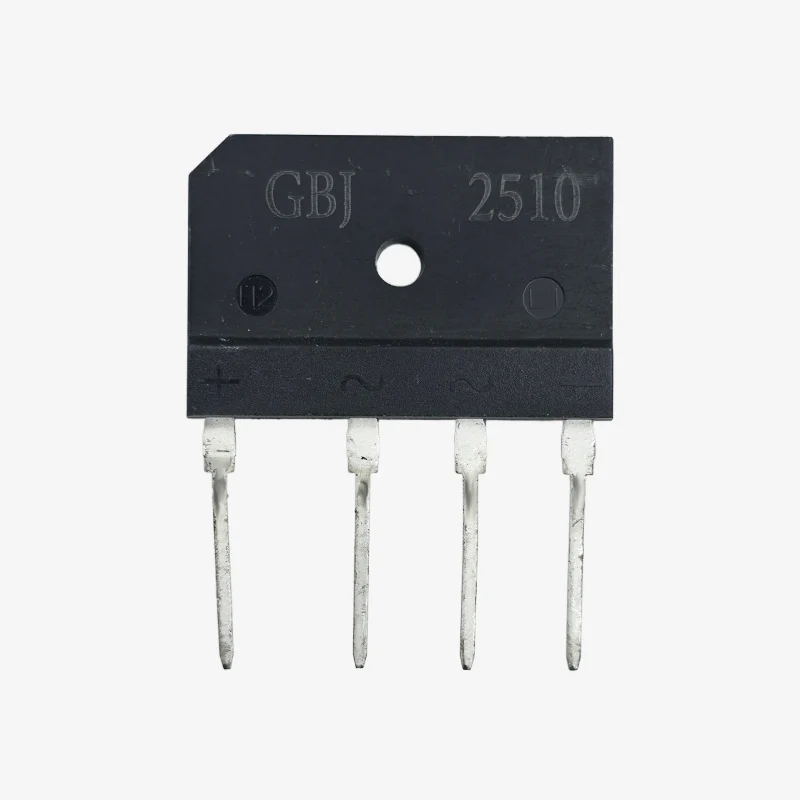

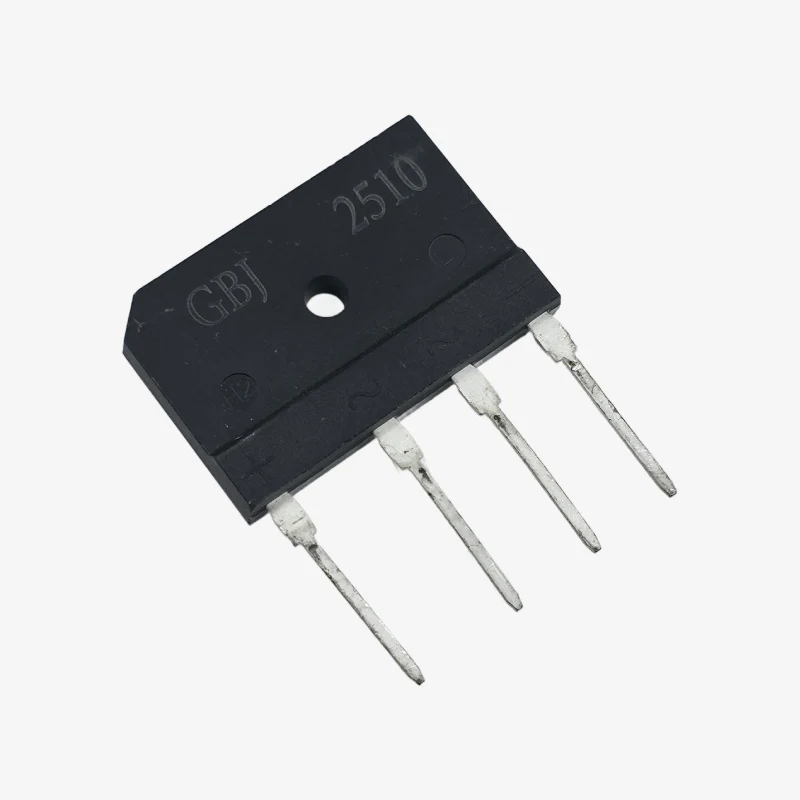

The GBJ2510 Bridge Rectifier 25A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded UL 94V-0 plastic body, it ensures superior thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.

Features:

1. High average rectified current of 25A

2. Excellent surge current handling up to 350A

3. Low forward voltage drop for efficient rectification

4. UL-recognized molded plastic case with flame-retardant rating

5. Suitable for PCB mounting with built-in stand-offs and reliable lead soldering

Specifications:

• Average Forward Rectified Current (IF(AV)): 25A (TC = 100°C)

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• DC Blocking Voltage (VDC): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 350A (8.3ms half-sine wave)

• Forward Voltage (VF): 1.1V at IF = 12.5A DC

• Reverse Current (IR) at 25°C: 10µA

• Reverse Current (IR) at 125°C: 500µA

• Thermal Resistance Junction-to-Case (RθJC): 1.0°C/W

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature (TSTG): -55°C to +150°C

Package Includes:

1 × GBJ2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
