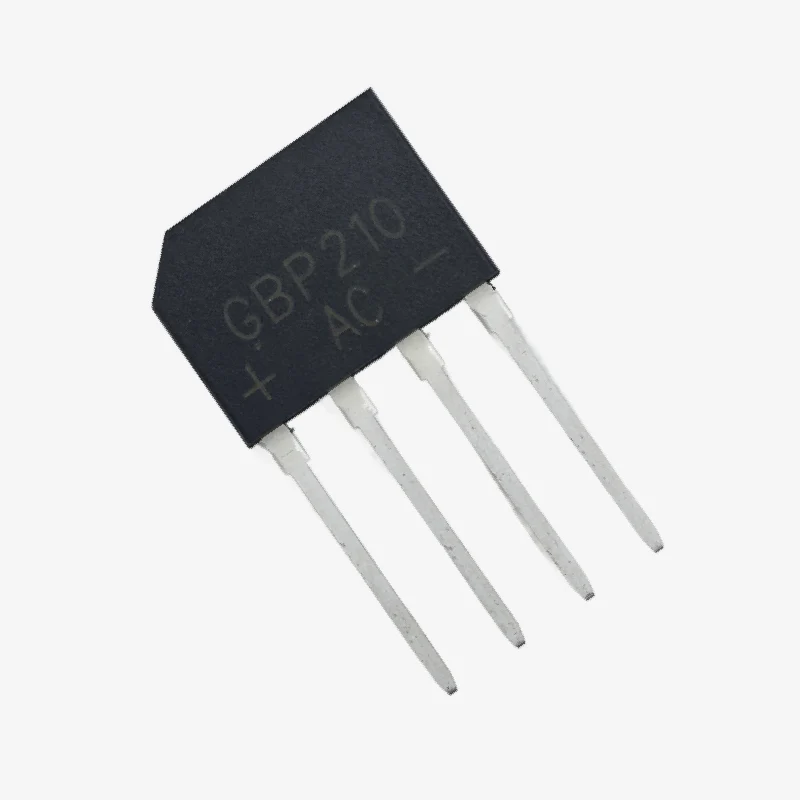

The GBP210 Bridge Rectifier 2A is a compact through-hole rectifier designed for efficient AC to DC conversion in general-purpose electronic circuits. Its diffused junction structure ensures high current capability and long-term reliability. Ideal for power adapters, chargers, control panels, and low-power rectification systems.

CLICK HERE FOR DATASHEET

Features:

1. Diffused junction design for stable performance

2. High surge current capacity up to 60A

3. Low forward voltage drop for energy-efficient operation

4. Reliable plated leads suitable for PCB mounting

5. Compact molded package with excellent thermal resistance

Specifications:

• Average Forward Rectified Current (IO): 2.0A (TA = 50°C)

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• DC Blocking Voltage (VR): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 60A (8.3ms half-sine wave)

• Forward Voltage (VFM): 1.1V at IF = 2.0A

• Reverse Current (IRM) at 25°C: 10µA

• Reverse Current (IRM) at 100°C: 500µA

• Thermal Resistance Junction-to-Ambient (RθJA): 30°C/W

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature (TSTG): -55°C to +150°C

Package Includes:

1 × GBP210 2A 1000V Single Phase Bridge Rectifier Module - Axial 4-Lead Package
