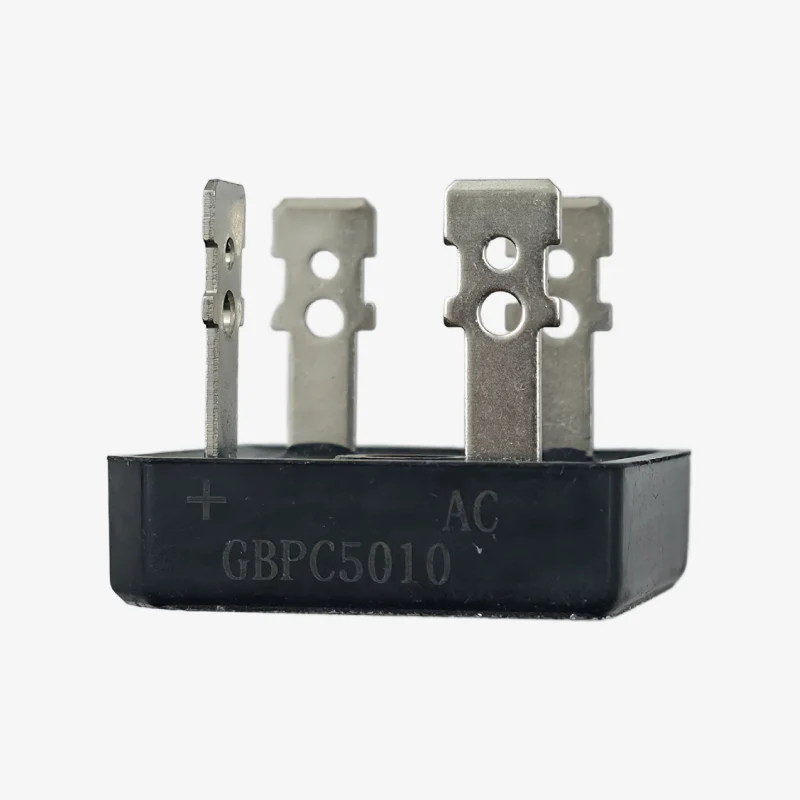

The GBPC5010 Bridge Rectifier 50A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded plastic body, it ensures excellent thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.

CLICK HERE FOR DATASHEET

Features:

1. High current handling capability up to 50A

2. Exceptional surge tolerance of 450A

3. Low forward voltage drop for efficient power conversion

4. Glass-passivated junction with isolated epoxy case for maximum heat dissipation

5. Suitable for screw mounting and high-power PCB applications

Specifications:

• Average Forward Rectified Current (IF(AV)): 50A (TC = 50°C)

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Working Peak Reverse Voltage (VRWM): 1000V

• DC Blocking Voltage (VDC): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 450A (8.3ms half-sine wave)

• Forward Voltage (VF): 1.1V at IF = 25A

• Reverse Current (IR) at 25°C: 5µA

• Reverse Current (IR) at 125°C: 500µA

• Typical Junction Capacitance (Cj): 400pF

• Thermal Resistance Junction-to-Case (RθJC): 1.0°C/W

• RMS Isolation Voltage from Case to Leads (VISO): 2500V

• Operating Junction Temperature (TJ): -65°C to +150°C

• Storage Temperature (TSTG): -65°C to +150°C

Package Includes:

1 × GBPC5010 50A 1000V Bridge Rectifier Diode Module
