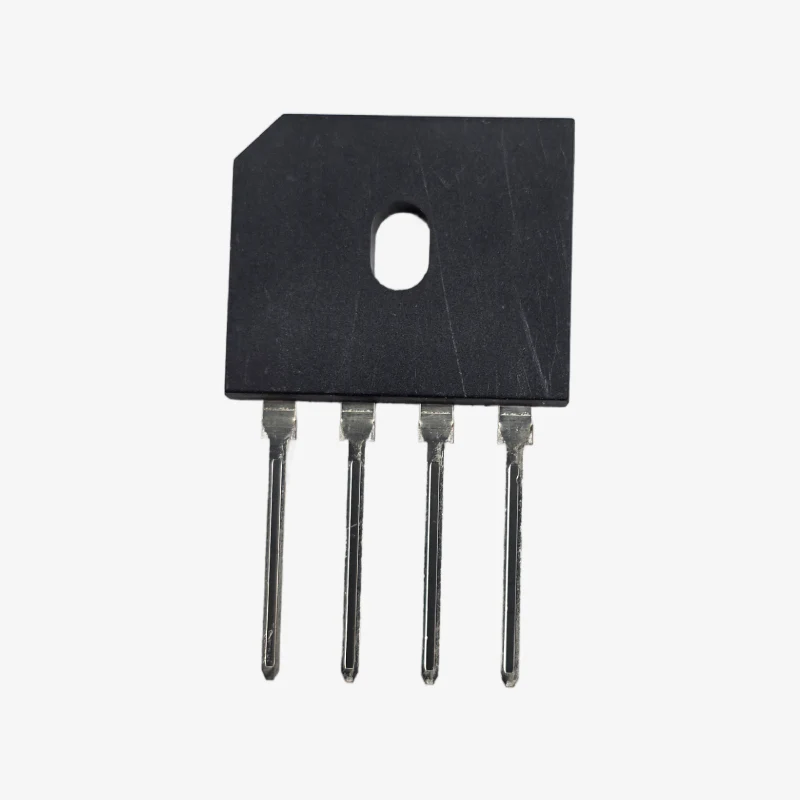

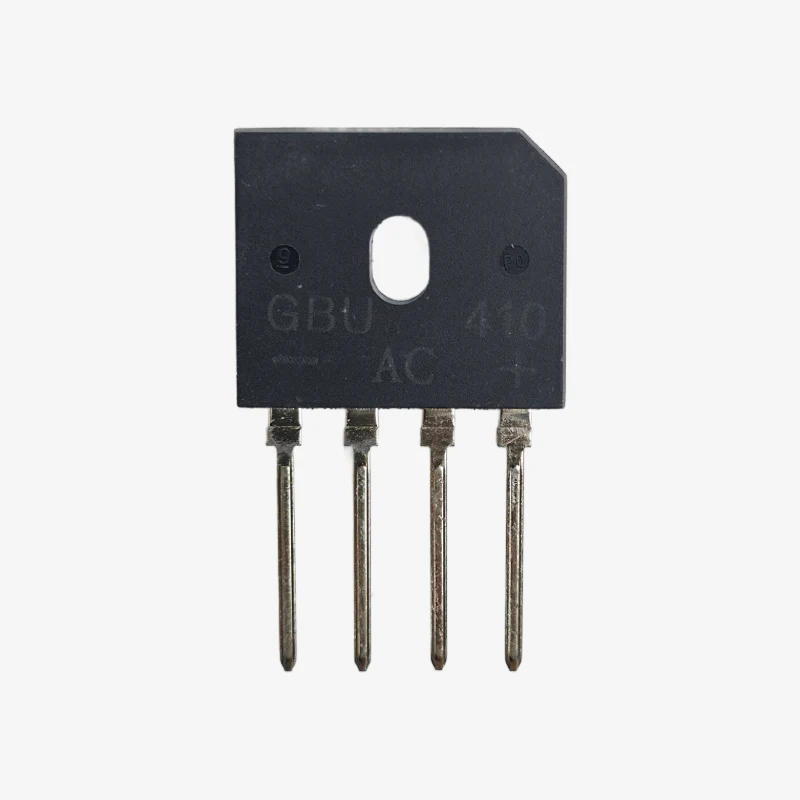

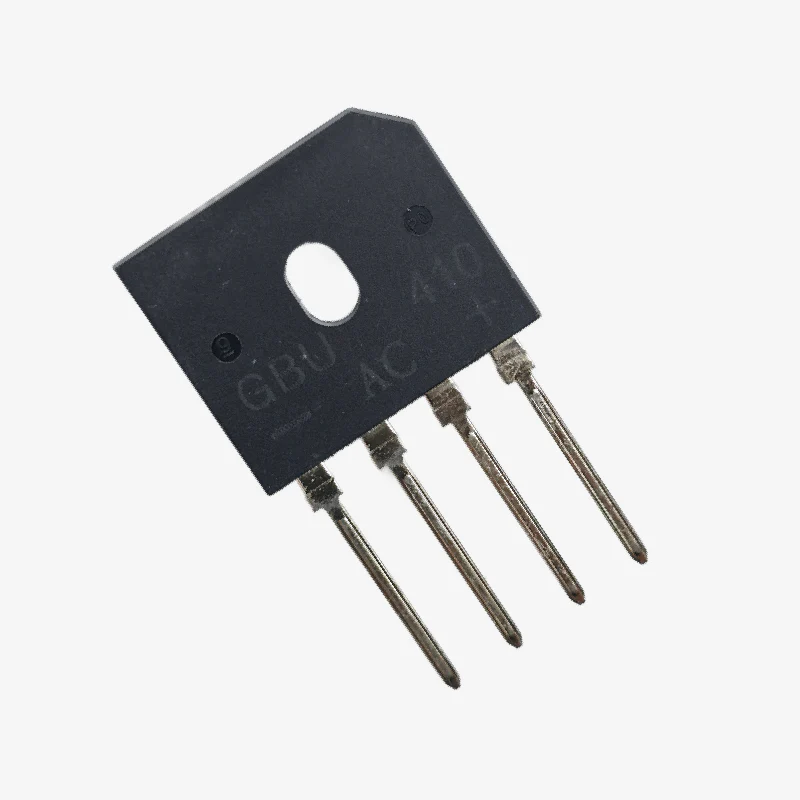

The GBU410 Bridge Rectifier 4A is a high-efficiency through-hole rectifier designed for reliable AC to DC conversion in power supplies and industrial equipment. Its molded plastic body and glass-passivated chip ensure durability and consistent performance under high surge currents. Ideal for chargers, adapters, and motor control circuits.

CLICK HERE FOR DATASHEET

Features:

1. Reliable molded plastic construction with glass passivated chip

2. Low forward voltage drop for reduced power loss

3. High surge current capability up to 120A

4. Flame-retardant epoxy rated UL 94V-0

5. Leads solderable per MIL-STD-202 Method 208

Specifications:

• Average Forward Current (IF(AV)): 4.0A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Peak Forward Surge Current (IFSM): 120A (8.3ms single half sine wave)

• Instantaneous Forward Voltage (VF): 1.05V at IF = 2.0A

• Reverse Current (IR) at 25°C: 10µA

• Thermal Resistance Junction to Case (RθJC): 5.5°C/W

• Thermal Resistance Junction to Ambient (RθJA): 23°C/W

• Dielectric Strength (Vdis): 2kV

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature Range (TSTG): -55°C to +150°C


Package Includes:

1 × GBU410 4A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
