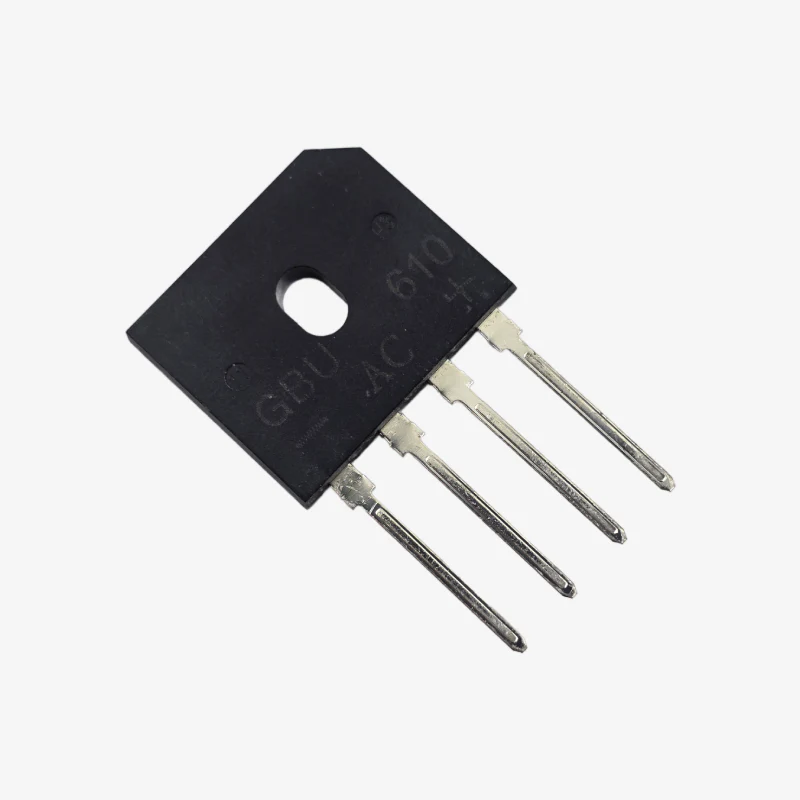

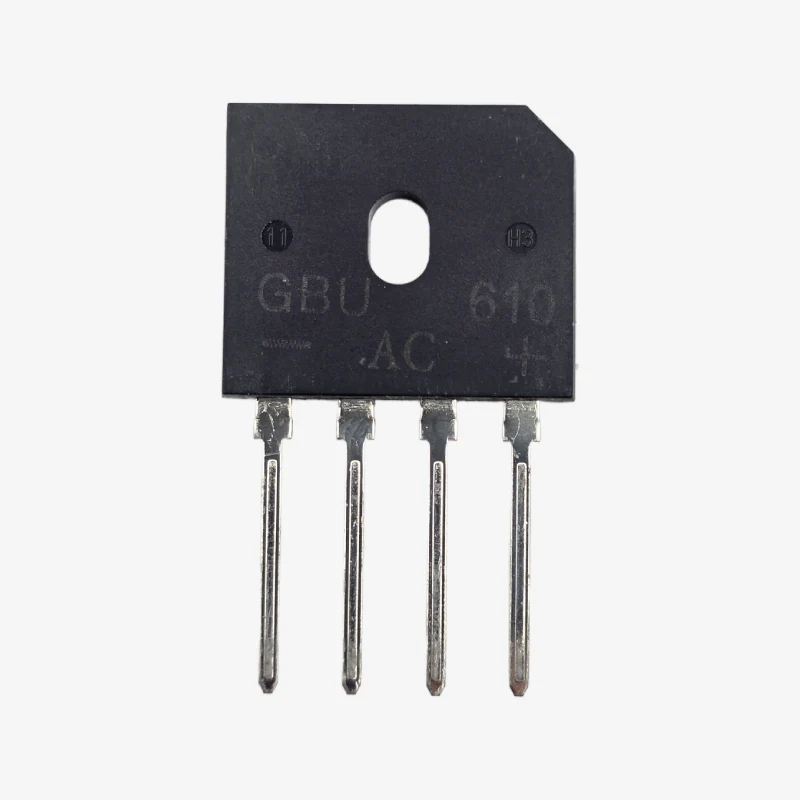

The GBU610 Bridge Rectifier 6A is a high-current, through-hole rectifier ideal for AC to DC conversion in power supplies, UPS systems, and industrial drives. Its rugged molded plastic body and PCB-mounted design ensure excellent mechanical stability and thermal performance under demanding loads.

CLICK HERE FOR DATASHEET

Features:

1. UL-recognized construction for safety compliance

2. Glass-passivated chip for reliable long-term operation

3. Built-in PCB stand-offs for easy mounting

4. High surge current handling up to 150A

5. Flame-retardant plastic rated UL 94V-0

Specifications:

• Average Forward Current (IF(AV)): 6.0A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• DC Blocking Voltage (VDC): 1000V

• RMS Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 150A (8.3ms single half sine wave)

• Instantaneous Forward Voltage (VF): 1.1V at IF = 3.0A

• Reverse Current (IR) at 25°C: 10µA

• Reverse Current (IR) at 125°C: 500µA

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature Range (TSTG): -55°C to +150°C

• Thermal Resistance Junction to Case (RθJC): 5.5°C/W (typical)


Package Includes:

1 × GBU610 6A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
