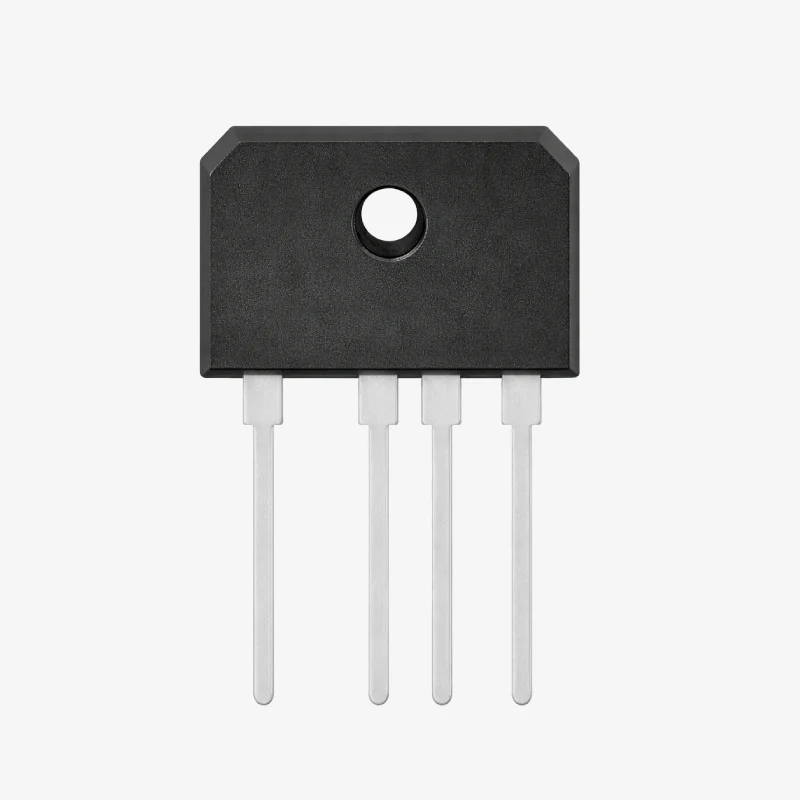

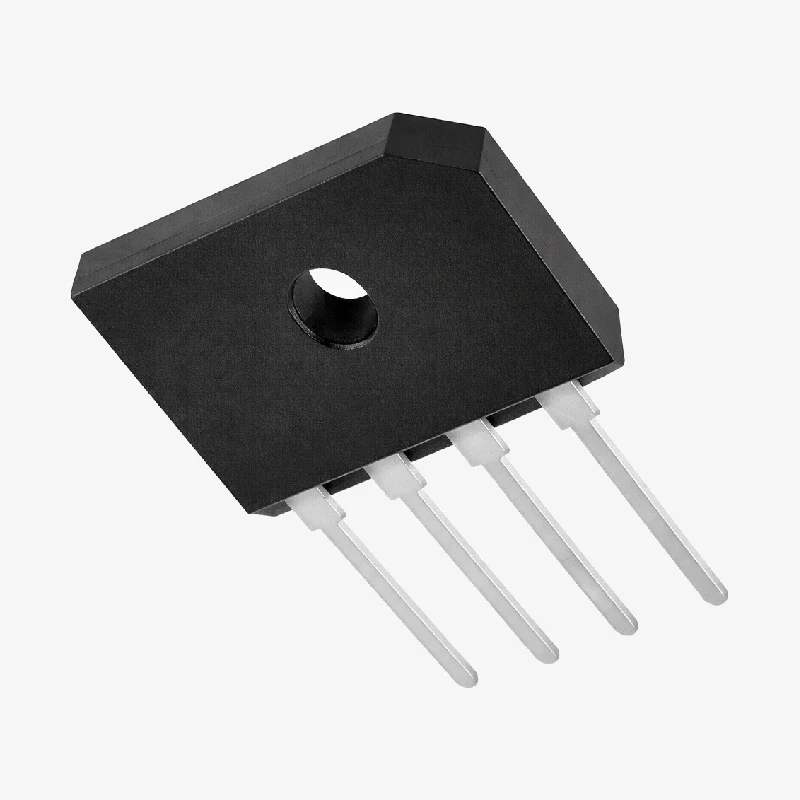

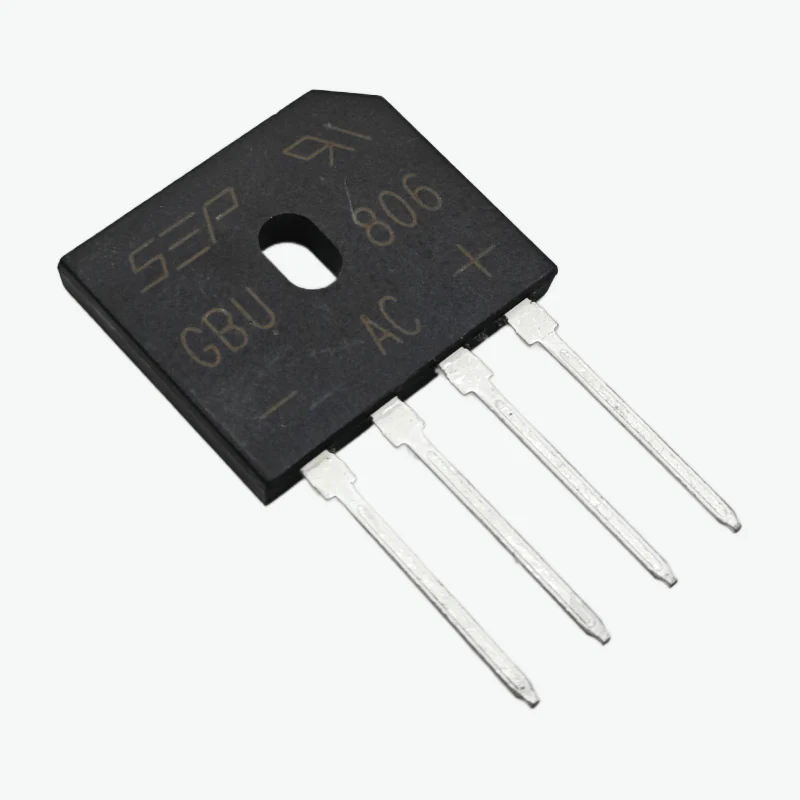

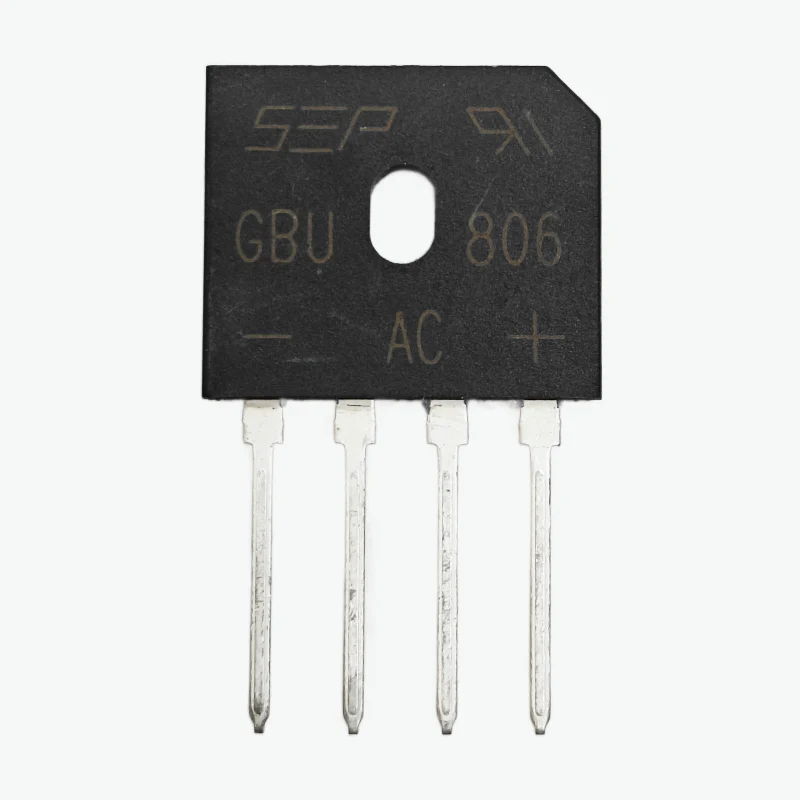

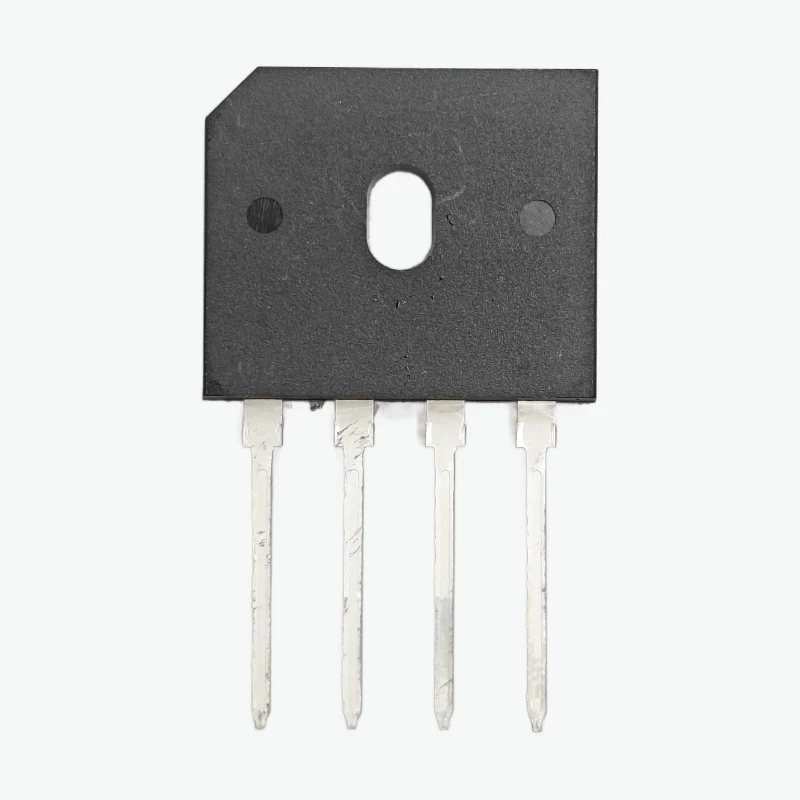

GBU806 SLKOR 8A 600V Bridge Rectifier – GBU Package is a high-current single-phase bridge rectifier designed for efficient AC to DC conversion, offering an 8A rectified current rating with a 600V reverse voltage capability, low forward voltage drop of 1V at 4A, high surge current endurance up to 175A, and robust thermal performance, making it suitable for power supplies, chargers, adapters, and general-purpose rectification in industrial and consumer electronic applications.

Features:

1. 8A average rectified current capability
2. 600V DC reverse voltage rating
3. Low forward voltage drop of 1V at 4A
4. High peak forward surge current up to 175A
5. Low reverse leakage current
6. GBU package for mechanical strength and heat dissipation
7. RoHS compliant construction

Specifications:

• Product Type: Bridge Rectifier
• Capacitance / Rating / Model (as applicable): GBU806
• Rated Voltage / Current (as applicable): 600V, 8A
• Voltage Drop: 1V @ 4A
• Peak Forward Surge Current: 175A
• Reverse Leakage Current: 5 µA @ 600V
• Mounting Type: Through Hole
• Package Type: GBU
• Operating Temperature: -55°C to +150°C
• Applications: AC to DC power supplies, battery chargers, adapters, SMPS, motor drives, industrial and consumer electronics

Package Includes:

1 × GBU806-SLKOR-175A 1V 4A-8A 600V GBU Bridge Rectifiers ROHS
