The GY-53 VL53L0X is a high-precision laser Time-of-Flight (ToF) ranging distance sensor module that measures distances with millimeter-level accuracy. Its compact design and advanced technology make it ideal for robotics, drones, and proximity detection applications.

Features

• Laser ToF Technology: Measures distance based on the time taken for light to return, ensuring precise readings.
• High Accuracy: Provides millimeter-level measurement accuracy.
• Wide Measurement Range: Supports distances from 30mm to 2000mm.
• Multiple Interfaces: Supports I2C and PWM communication for flexibility in integration.
• Compact Design: Lightweight and space-efficient for embedded applications.
• Low Power Consumption: Suitable for battery-powered devices.

Specifications

• Sensor Model: VL53L0X.
• Measurement Range: 30mm to 2000mm.
• Operating Voltage: 3.3V–5V.
• Communication Interface: I2C (default address: 0x29) and PWM.
• Field of View (FoV): ±15°.
• Response Time: <50ms for distance measurement.
• Dimensions: L - 25mm, W: 12.2mm

Applications

• Obstacle avoidance in robotics and drones.
• Proximity sensing in industrial automation.
• Gesture recognition and presence detection.
• Depth sensing and mapping.

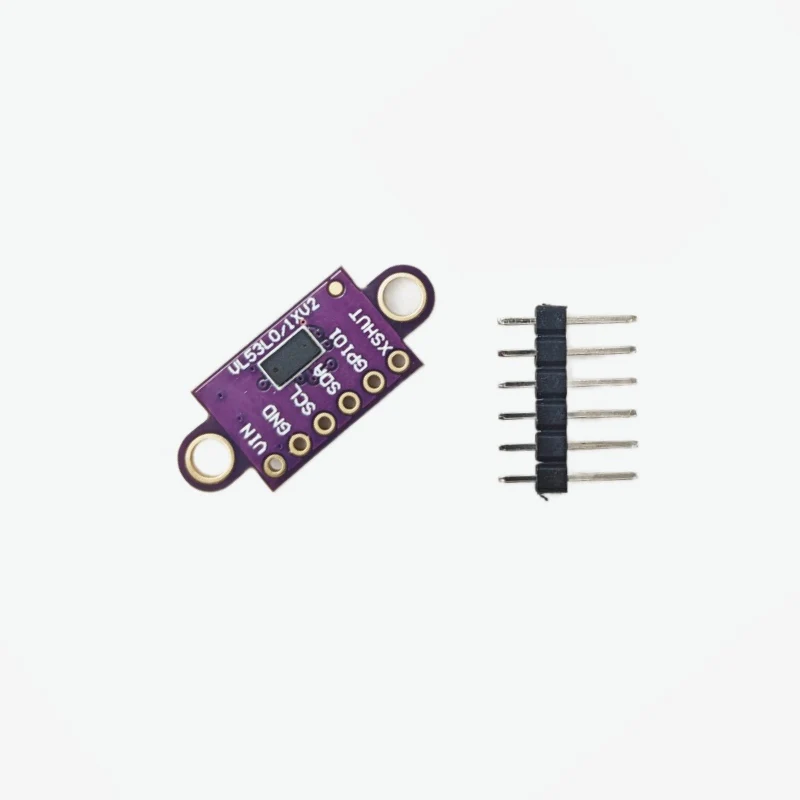

Pinout:

1. VIN (VCC): Power supply input, typically 2.6V to 5V.
2. GND: Ground connection.
3. SCL: Serial Clock Line for I2C communication.
4. SDA: Serial Data Line for I2C communication.
5. XSHUT: Shutdown pin to control the sensor's power state.
6. GPIO1 (optional): Interrupt output for signaling specific events.

Package Includes:

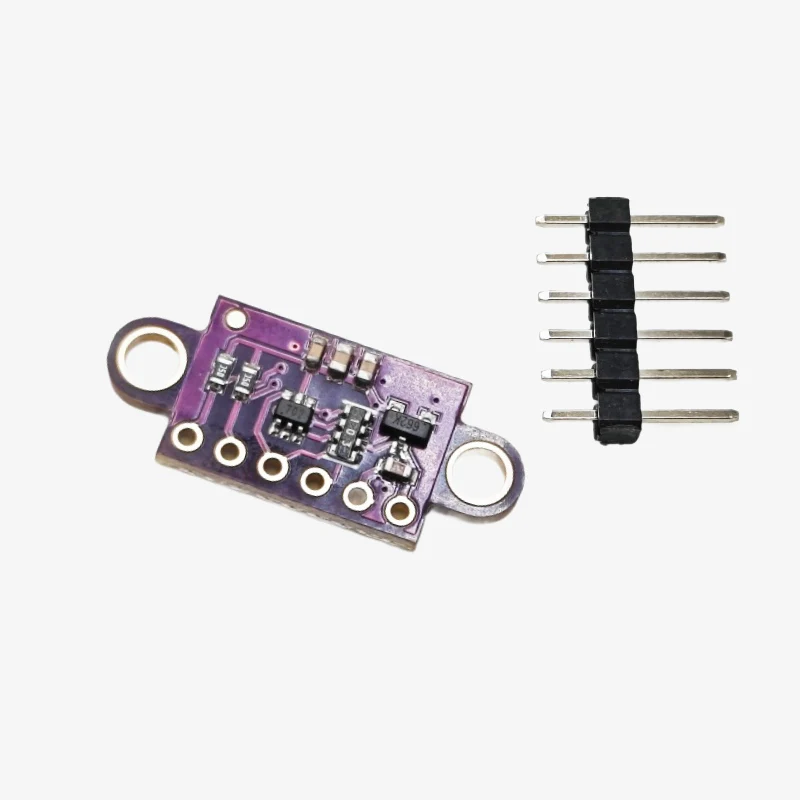

1 x GY-53 VL53L0X Laser ToF Flight Time Ranging Sensor Module

1 x header pins
