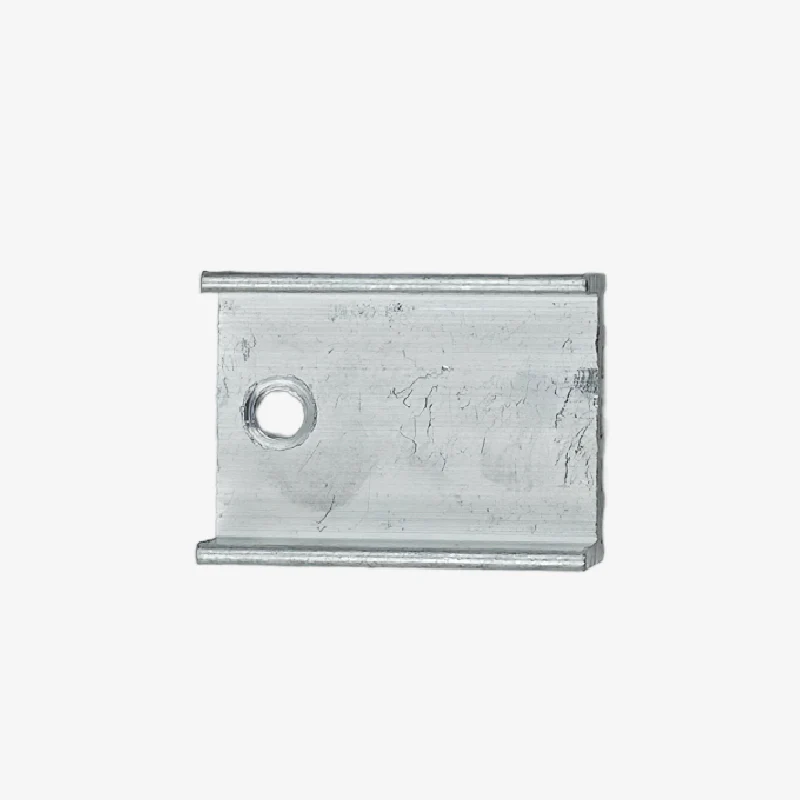

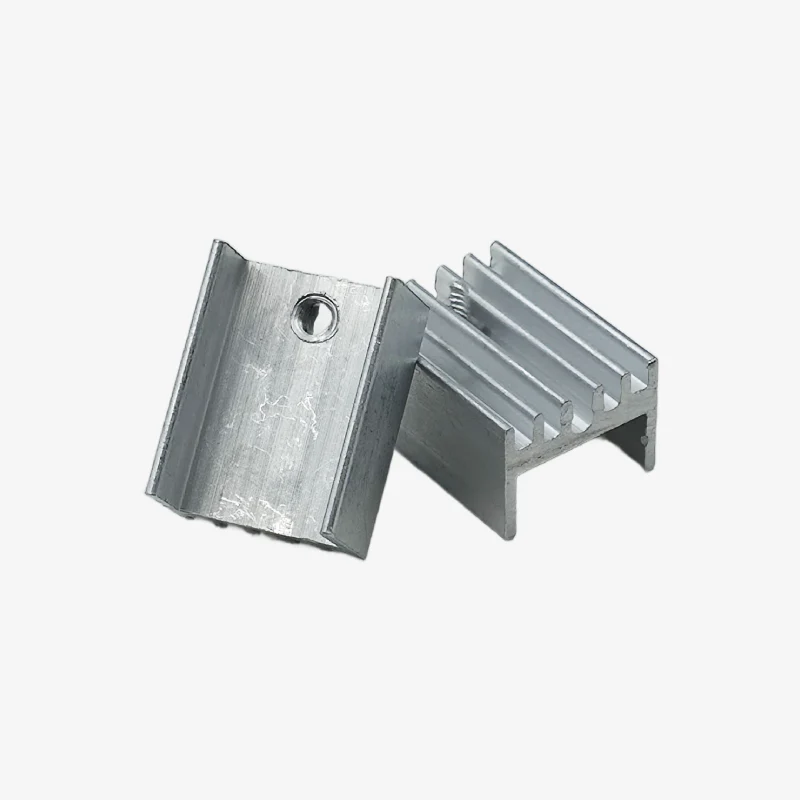

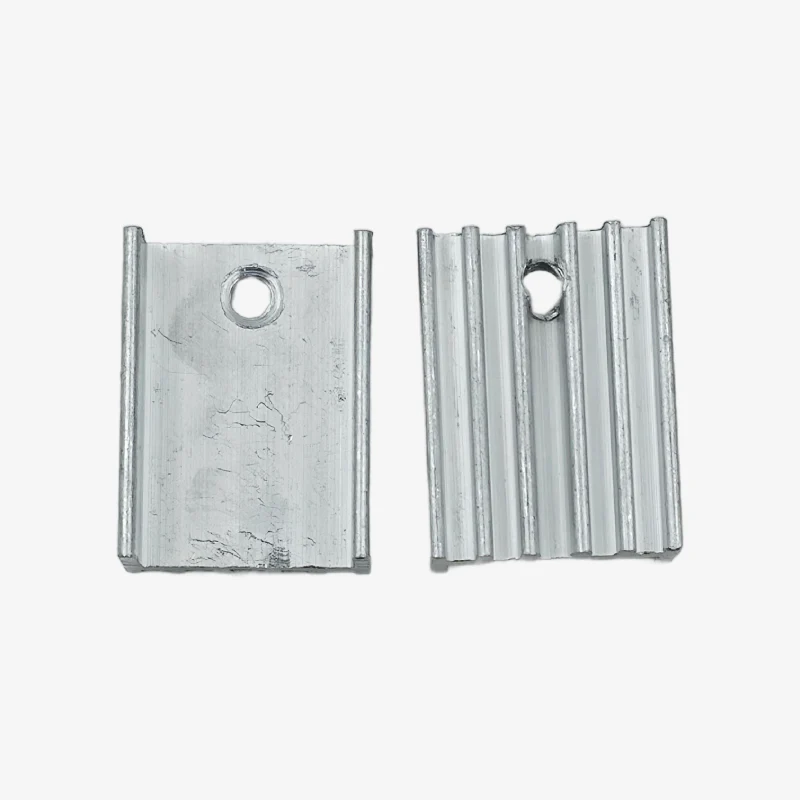

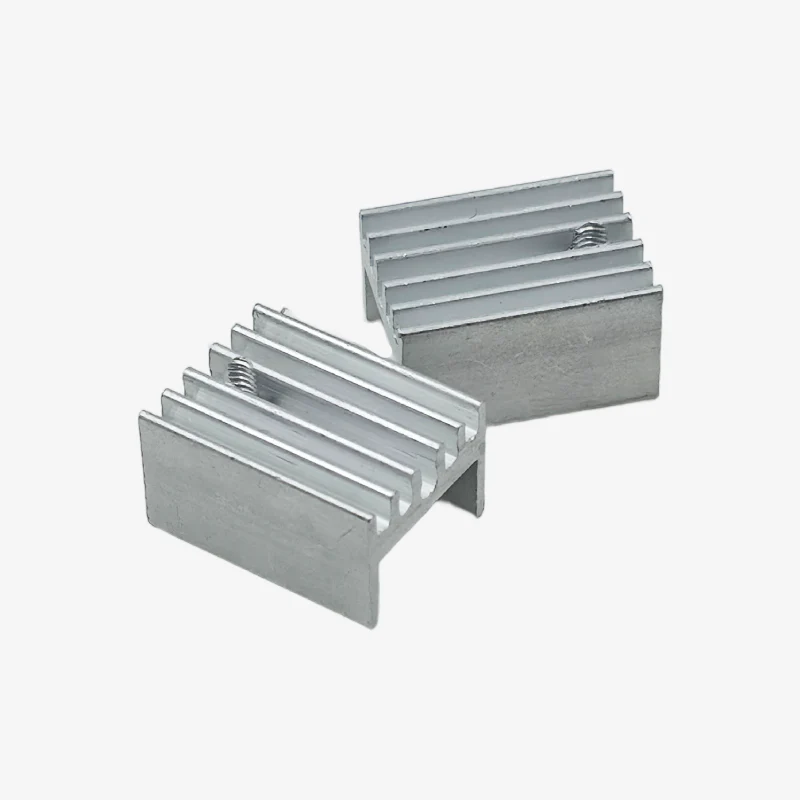

Heat sinks are components used to provide a thermal pathway to reduce the temperature rise in electrical circuits. This TO-220 heat sink, as the name implies, is used to cool off electrical components housed in a TO-220 package. It has a screw for easy attachments to components. The most common components that use this heat sink in electrical circuits are : Voltage regulators like 7805, 7812, LM317 , power transistors and diodes.



Features of TO-220 Heat Sink

• Aluminum heat sink
• Excellent heat transfer properties
• Lightweight
• Suitable for components in TO220 packages
• Commonly used in TO-220 packaged voltage regulators, power transistors and diodes.



Additional Resources

• TO-220 Heat Sink datasheet

Package Includes

1 x TO-220 Aluminum Heatsink for Transistors and Voltage regulators
