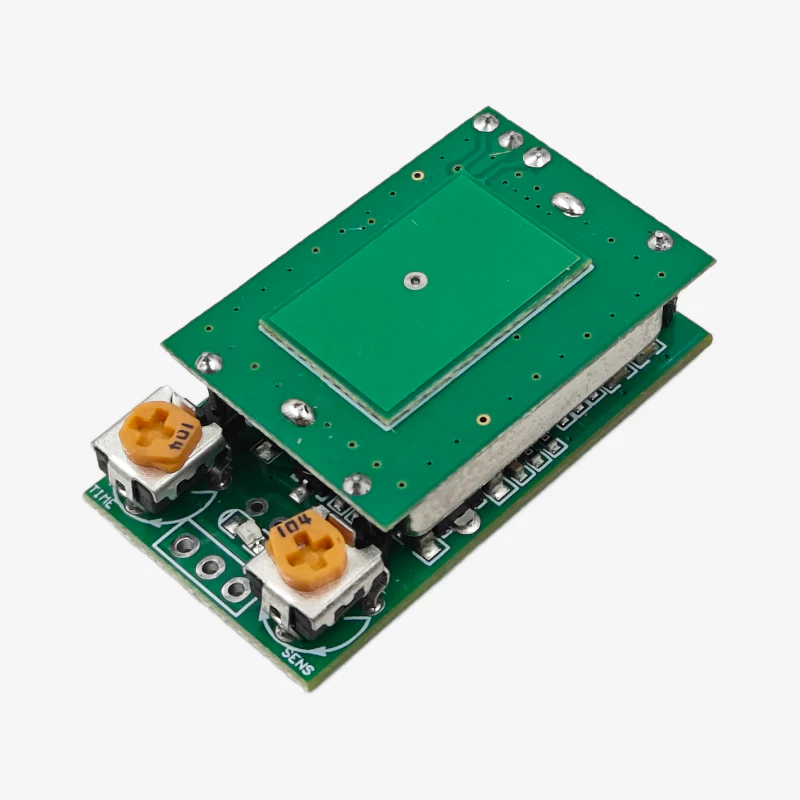

The HFS-DC06 Microwave Motion Sensor Module is a compact 5.8GHz Doppler radar detector designed for non-contact motion detection in LED lighting, security, automation, and energy-saving applications. Operating on the Doppler effect, it can sense motion through plastic, glass, and thin walls, offering higher sensitivity and wider detection range compared to PIR sensors. With its stable 5V DC operation and compact footprint, it is ideal for smart lighting and embedded motion-activated systems.

Features:

1. 5.8GHz microwave Doppler radar motion detection
2. High sensitivity with wide detection angle
3. Detects motion through non-metallic materials (plastic, glass, wood)
4. Stable DC 5V operation suitable for LED lighting and control circuits
5. Compact, lightweight module for easy integration
6. Better performance than PIR in temperature-variable environments
7. Ideal for automatic lighting, security systems, smart switches, and energy-saving projects

Specifications:

• Model: HFS-DC06
• Operating Frequency: 5.8GHz (Microwave Doppler Radar)
• Operating Voltage: DC 5V
• Operating Current: ~20–30mA (typical)
• Detection Distance: Up to 6–8 meters (varies by environment)
• Detection Angle: ~120°
• Output Type: Digital high/low signal
• Trigger Mode: Re-triggerable
• Sensing Principle: Doppler radar (non-contact motion detection)
• Transmission Power: < 2mW (safe, low energy)
• Material Penetration: Works through plastic, glass, thin doors, and acrylic
• Operating Temperature: –20°C to +65°C
• Applications: LED motion lighting, security alarms, automatic switches, smart home devices

Package Includes:

1 × HFS-DC06 5.8GHz Microwave Motion Doppler Radar Sensor Module
