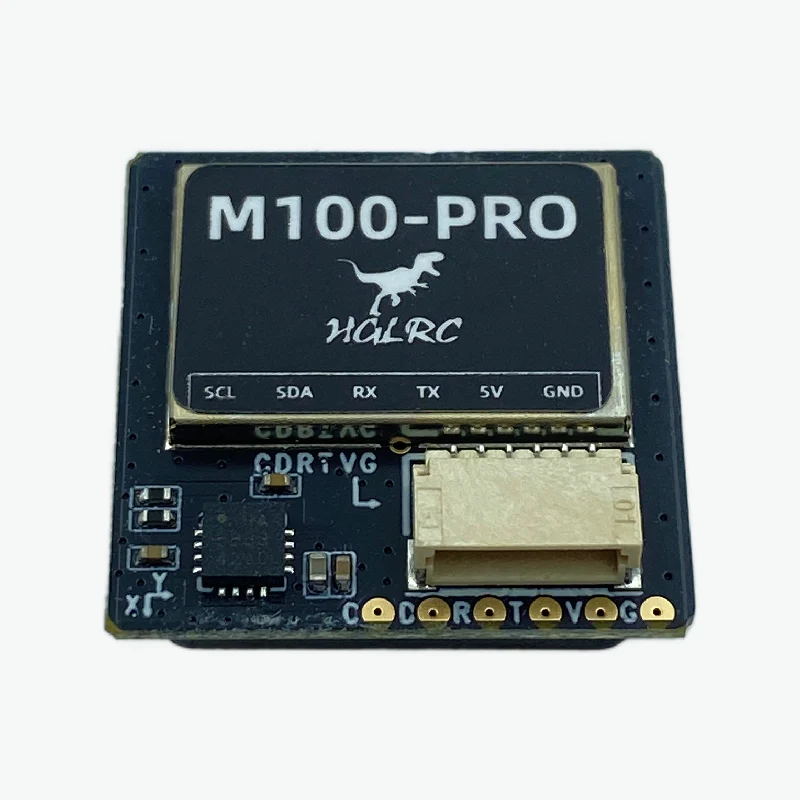

HGLRC M100 PRO GPS is a compact and high-performance GNSS module designed for accurate positioning and navigation in FPV drones and embedded systems. Powered by a 10th generation B101 chip, it delivers fast satellite acquisition and stable performance with support for multiple satellite systems. The ceramic antenna ensures strong signal reception, while the lightweight design makes it ideal for drone applications requiring precision and reliability.

Features:

1. 10th generation B101 GNSS chip for fast and accurate positioning
2. Supports multiple satellite systems for improved accuracy
3. 120 receiving channels for quick satellite lock
4. Ceramic antenna for strong and stable signal reception
5. High speed support up to 500m/s
6. Compact and lightweight design for drone applications
7. Stable communication using UBX protocol
8. Wide operating temperature range for reliable performance

Specifications:

• Product Type: GPS Module
• Model: M100 PRO
• Chip: B101 10th Generation GNSS
• Receiving Channel: 120
• Baud Rate: 115200
• Protocol: UBX
• Antenna Type: Ceramic Antenna
• Frequency: GPS L1 GLONASS G1 BDS B1 GALILEO E1 QZSS L1 SBAS L1 IRNSS
• Max Speed: 500m/s
• Input Voltage: 3.6V to 5.5V
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C
• Dimensions: 21.2mm x 21.2mm x 8.2mm
• Weight: 7.9g

Applications:

• FPV drones and UAV navigation systems
• Return to home and autonomous flight control
• Robotics and positioning systems
• IoT tracking and location based devices
• Aerial photography and drone stabilization
• DIY drone building and upgrade projects

Package Includes:

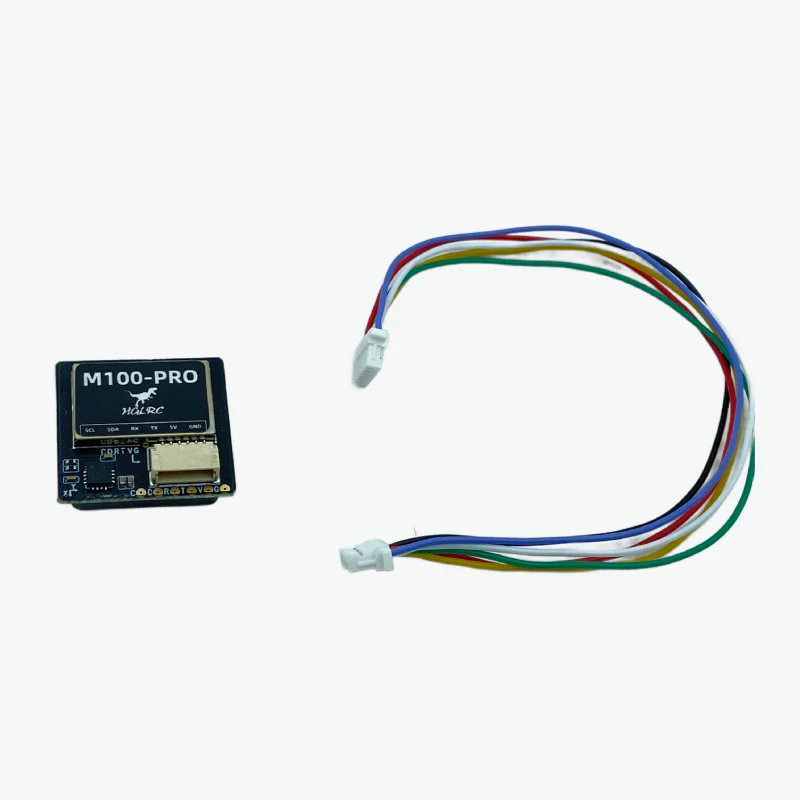

1 × HGLRC M100 PRO GPS Module
