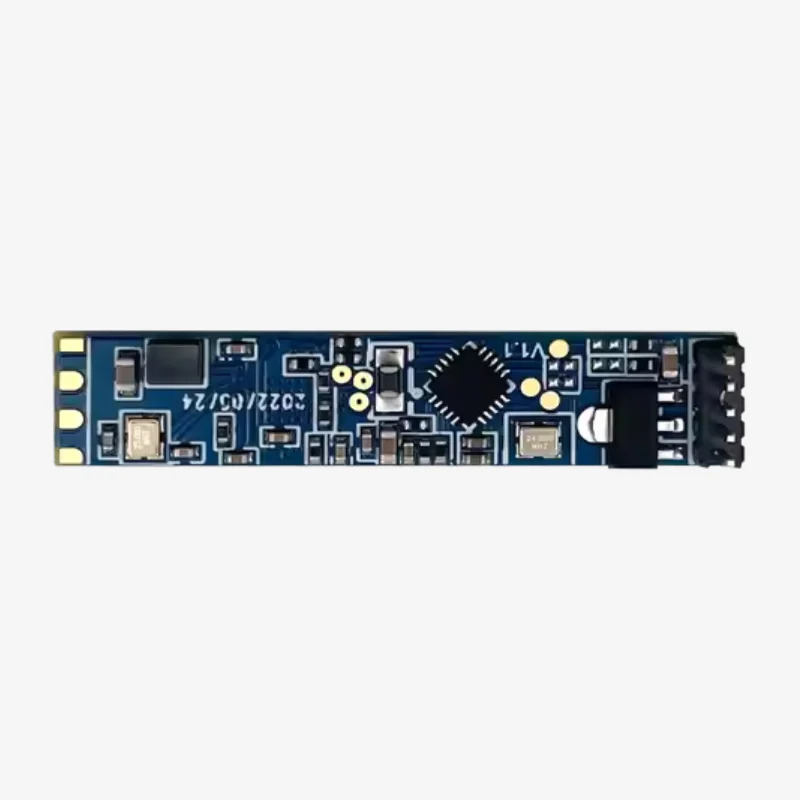

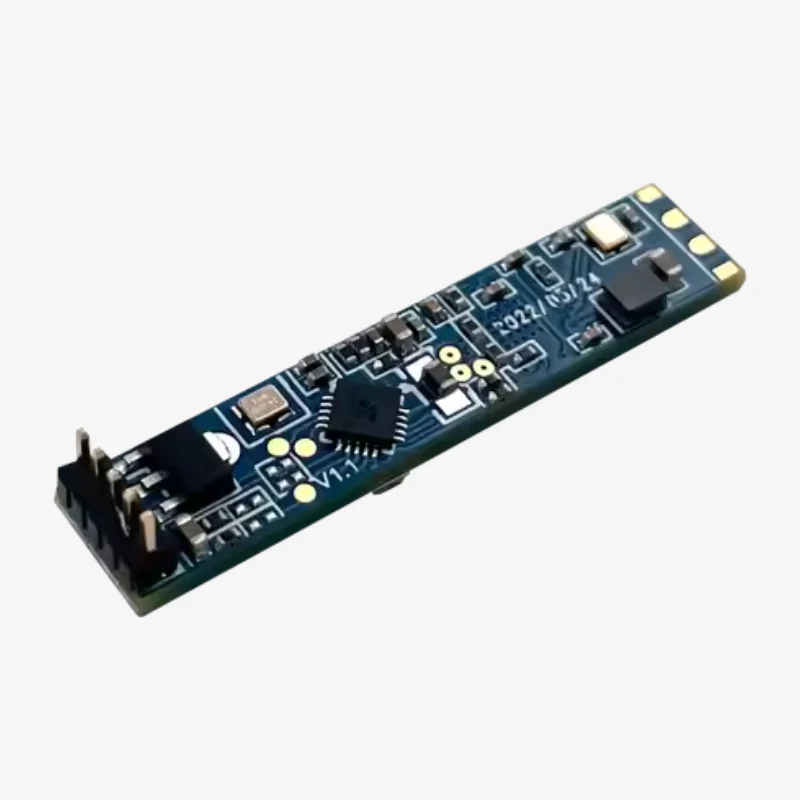

The Hi-Link HLK-LD2410 is a high-performance 24GHz radar sensor module designed for human presence and motion detection. Using millimeter-wave radar technology, it can detect both movement and micro-movements, such as breathing, making it ideal for smart home automation, security systems, and health monitoring applications. The module offers a wide detection range and high sensitivity, ensuring reliable performance even in low-light or obstructed environments.

HLK-LD2410 Human Body Detection Radar Sensor Features:

1. 24GHz millimeter-wave radar technology for high-precision detection.
2. Human presence and motion detection, including micro-movements (e.g., breathing).
3. Adjustable detection range (up to 5 meters).
4. Compact and low-power design for energy efficiency.
5. Integrated PCB antenna for reliable signal transmission.
6. UART communication interface for easy integration with microcontrollers and embedded systems.
7. High immunity to environmental factors like light, temperature, and humidity.

HLK-LD2410 Human Body Detection Radar Sensor Specifications:

• Operating Frequency: 24GHz
• Detection Range: Up to 5 meters (configurable)
• Detection Type: Human presence, motion, and micro-movements
• Communication Interface: UART (serial communication)
• Operating Voltage: 5V DC
• Power Consumption: Low power design
• Antenna Type: Integrated PCB antenna
• Operating Temperature: -40°C to 85°C

Package Includes:

1 × Hi-Link HLK-LD2410 24GHz Human Detection Radar Sensor Module
