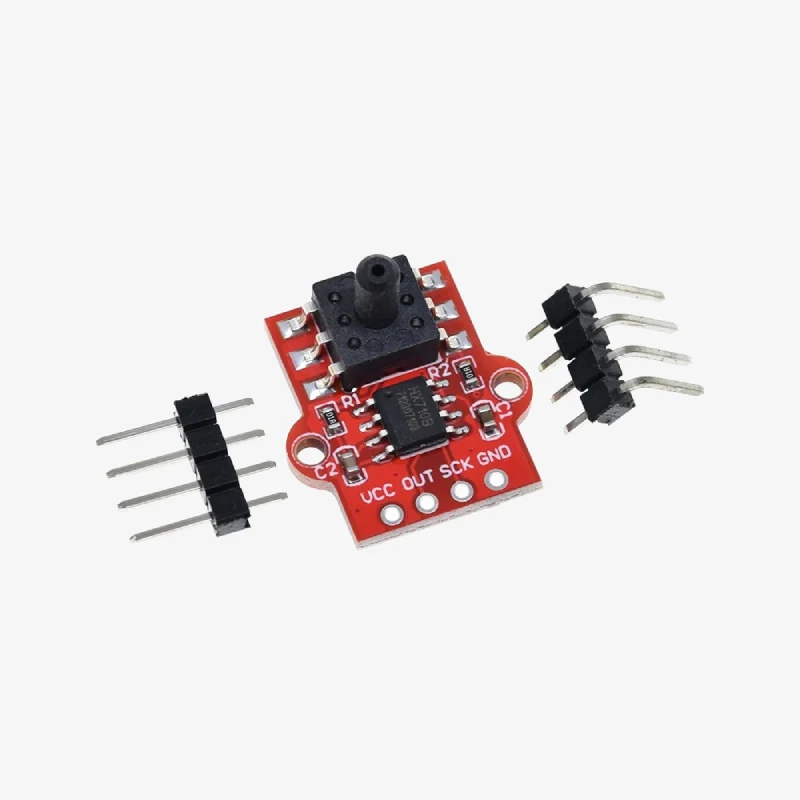

The HX710B Air Pressure Sensor Module is a high-precision module designed to measure low air pressure ranges, making it ideal for applications like barometric measurements, environmental monitoring, and medical devices.

Features

• Precise Pressure Measurement: Accurately measures air pressure from 0 to 40 kPa.
• Wide Voltage Range: Operates smoothly with 3.3V to 5V power supplies, compatible with most microcontrollers.
• Integrated ADC: Built-in 24-bit Analog-to-Digital Converter for stable and accurate digital outputs.
• Low Power Design: Optimized for battery-powered and portable applications.
• Compact and Lightweight: Small form factor suitable for embedded systems.

Specifications

• Pressure Range: 0 to 40 kPa.
• Supply Voltage: 3.3V–5V.
• Resolution: High resolution with 24-bit ADC.
• Output Interface: Digital output (I2C/SPI-compatible depending on configuration).
• Operating Temperature: -40°C to +85°C.
• Module Dimensions: [Specify dimensions if available].

Applications

• Barometric pressure sensing.
• Respiratory monitoring in medical devices.
• Environmental monitoring stations.
• Weather data logging.
• Altitude measurement for drones and RC vehicles.

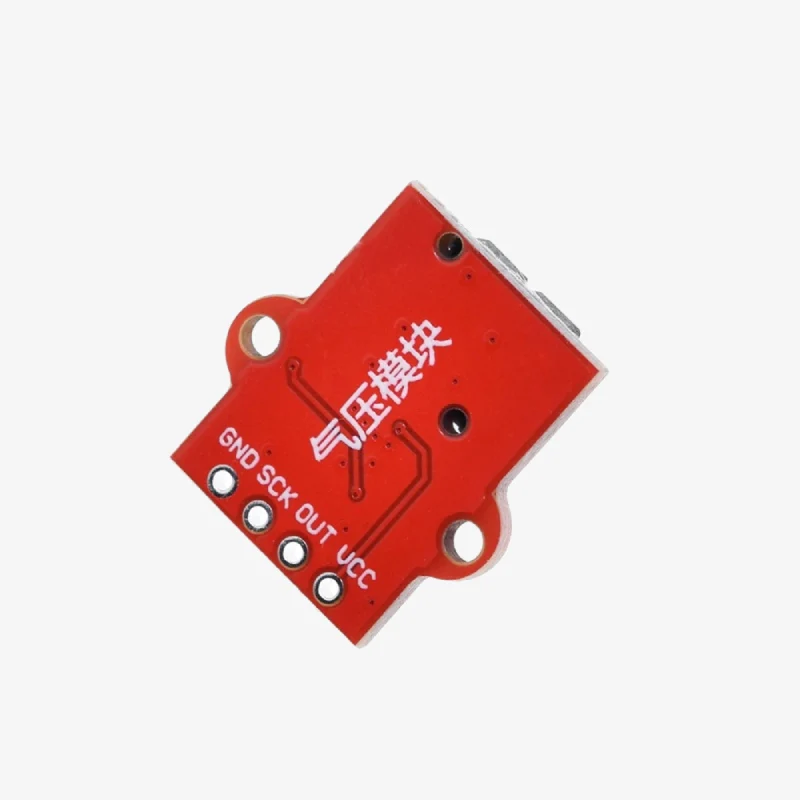

Pinout:

• VCC: Power supply (3.3V to 5V)

• GND: Ground

• OUT: Pressure output (analog voltage)

• SCK: Clock line for digital interface

• DOUT: Data output for digital interface

Package Includes:

1 x HX710B Air Pressure Sensor Module
