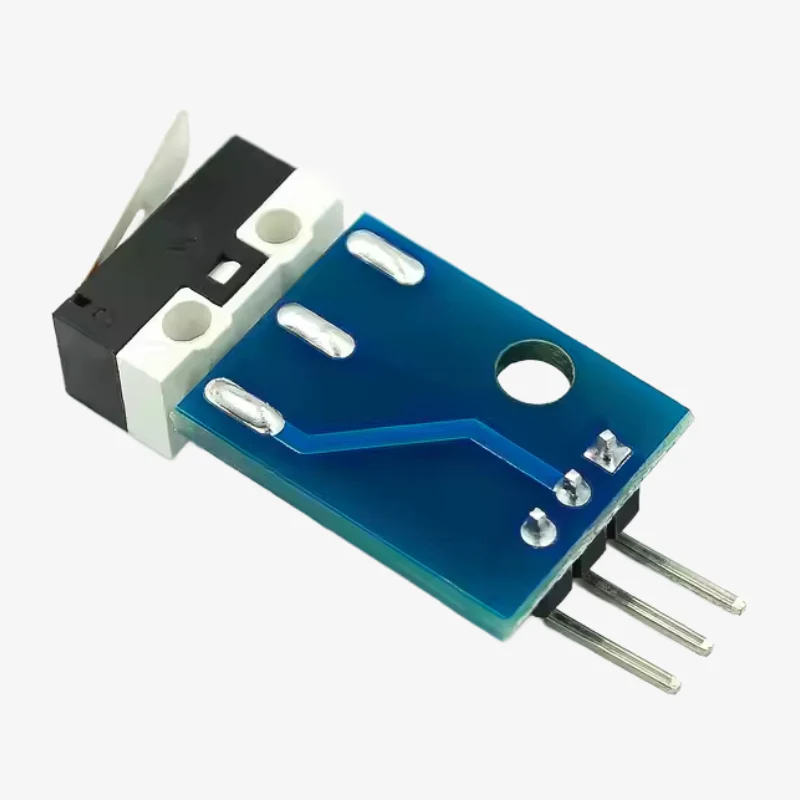

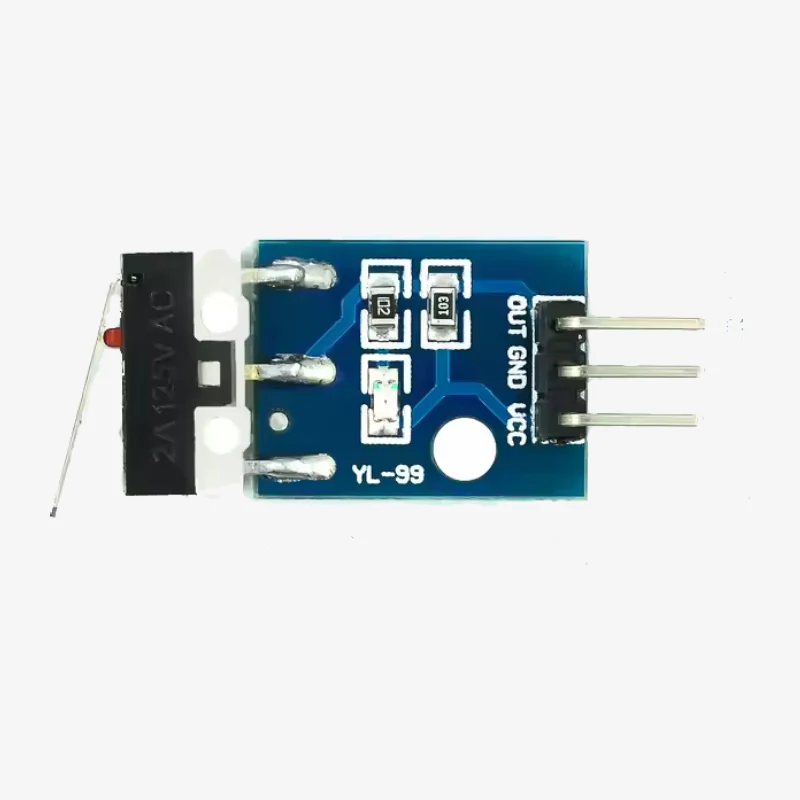

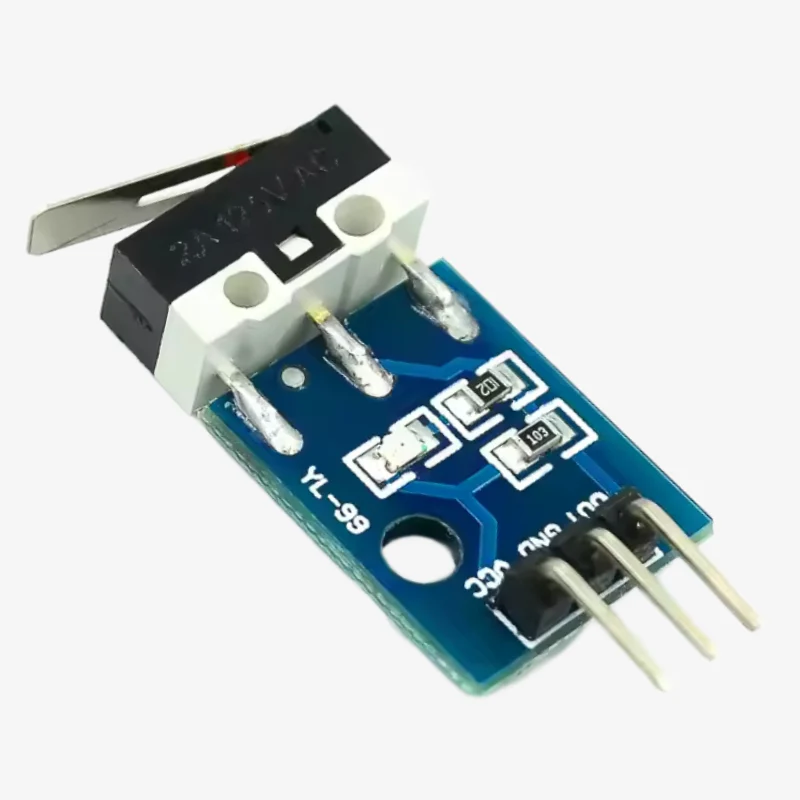

The Impact Collision Switch Sensor Module is a compact and reliable sensor designed to detect physical impacts, collisions, or mechanical contact. It features a built-in micro switch that triggers when force is applied, making it ideal for obstacle detection, robotic applications, and limit-switch mechanisms. The module provides a digital output signal, allowing easy integration with microcontrollers, Arduino, and other embedded systems.

Impact Collision Switch Sensor Module Features:

1. High-sensitivity micro switch for impact detection.
2. Provides a digital output signal (HIGH/LOW).
3. Simple 3-pin interface: VCC, GND, and OUT.
4. Compatible with Arduino, Raspberry Pi, and other microcontrollers.
5. Can be used for collision detection, obstacle avoidance, and safety applications.
6. Durable PCB design with onboard resistors for stable operation.

Impact Collision Switch Sensor Module Specifications:

• Operating Voltage: 3.3V - 5V DC
• Output Type: Digital (HIGH/LOW)
• Trigger Mechanism: Mechanical micro switch
• Interface: 3-pin (VCC, GND, OUT)
• Operating Temperature: -20°C to 85°C
• Module Dimensions: Compact size for easy integration

Package Includes:

1 × Impact Collision Switch Sensor Module
