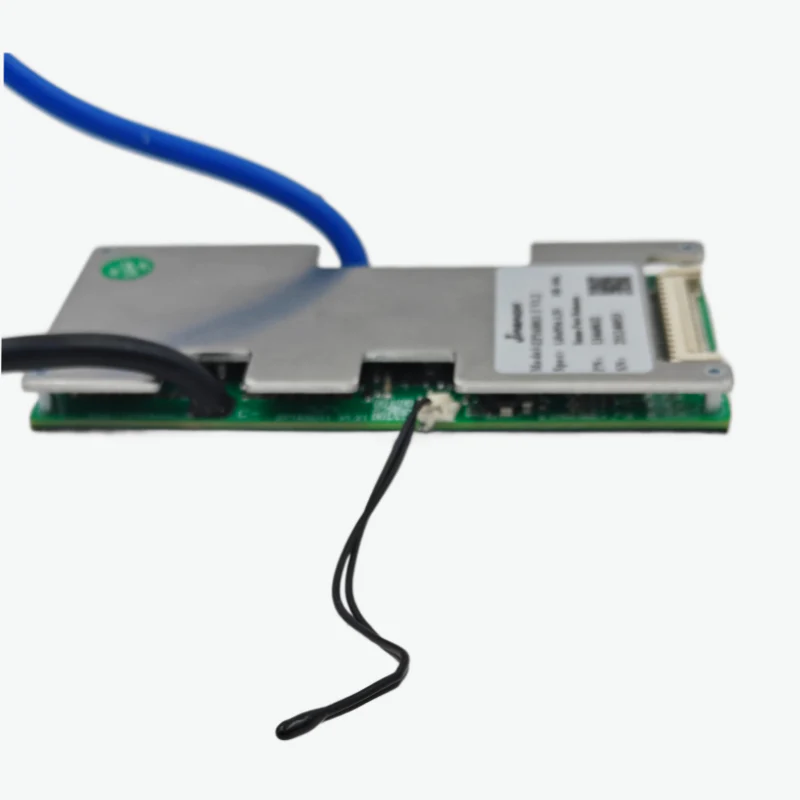

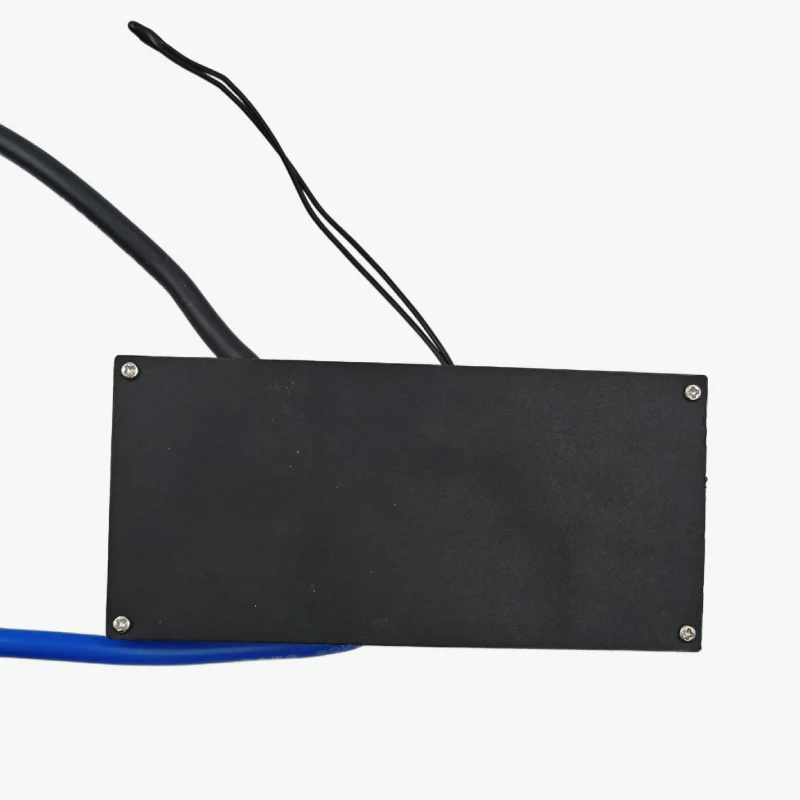

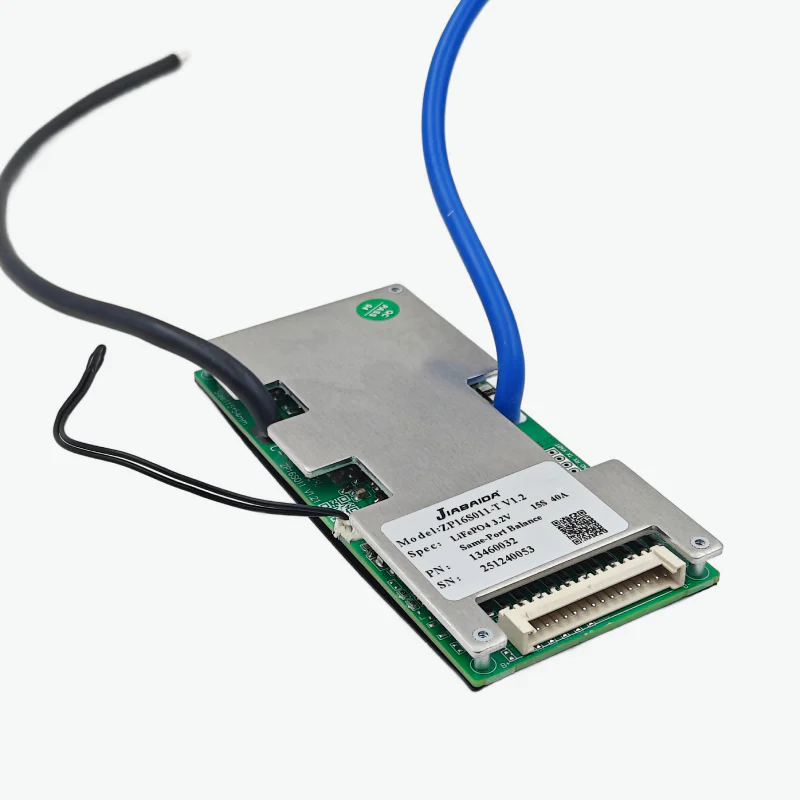

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS is a smart Battery Management System  built on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs. It offers reliable protection against overcharge, over-discharge, overcurrent, and short circuits while providing passive balancing for maintaining cell voltage uniformity. With a continuous discharge current of 40A, it is suitable for applications such as electric bikes, energy storage systems, and portable power solutions.

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Features:

• 40A continuous discharge capability for moderate-load applications
• Passive balancing to improve battery pack performance and lifespan
• Comprehensive protection circuitry for voltage and current control
• Built on ZP16S011 hardware for stable operation
• Ideal for medium-power LiFePo4 battery systems

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Specification:

Specification	Value
Model	ZP16S011
Supported Cells	15S (LiFePo4)
Nominal Voltage (V)	48V
Charge Voltage (V)	54.75V
Charge Current (A)	20A
Continuous Discharge Current (A)	40A
Balance Current (mA)	30 ±5
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.55 ±0.05
Over Discharge Detect Voltage (V)	2.20 ±0.1
Over Discharge Release Voltage (V)	2.50 ±0.1
Operating Temperature (°C)	-20 to 70
Dimensions (mm)	115 x 54 x 12mm



Package Includes:

1 x Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board
