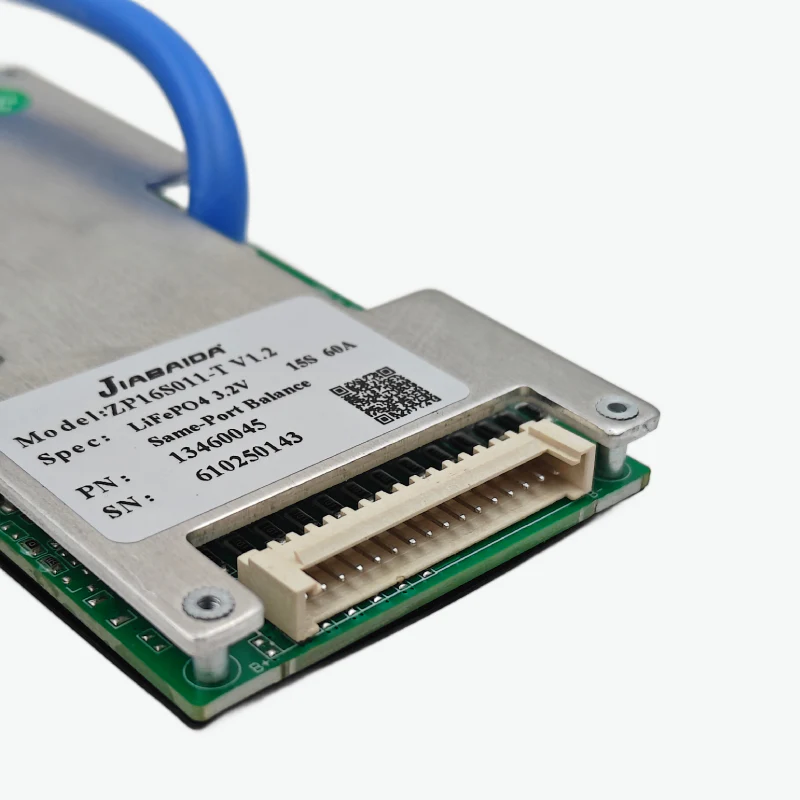

Jiabaida (JBD) LiFePo4 15S 48V 60A is a robust Battery Management System (BMS) based on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs requiring moderate to high discharge current. It offers intelligent passive balancing and comprehensive protection features such as overcharge, over-discharge, overcurrent, and short circuit protection. This BMS is ideal for medium- to high-demand applications like solar storage systems, electric bikes, and mobile power units.

Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Features:

• 60A continuous discharge capability
• Passive balancing for optimized battery life
• Integrated over-voltage, under-voltage, short circuit, and overcurrent protection
• ZP16S011 hardware ensures efficient and stable performance
• Suitable for powerful LiFePo4 battery systems

Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Specification:

Specification	Value
Model	ZP16S011
Supported Cells	15S (LiFePo4)
Nominal Voltage (V)	48V
Charge Voltage (V)	54.75V
Charge Current (A)	20A
Continuous Discharge Current (A)	60A
Balance Current (mA)	30 ±5
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.55 ±0.05
Over Discharge Detect Voltage (V)	2.20 ±0.1
Over Discharge Release Voltage (V)	2.50 ±0.1
Operating Temperature (°C)	-20 to 70
Dimensions (mm)	115 x 54 x 12



Package Includes:

1 x Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
