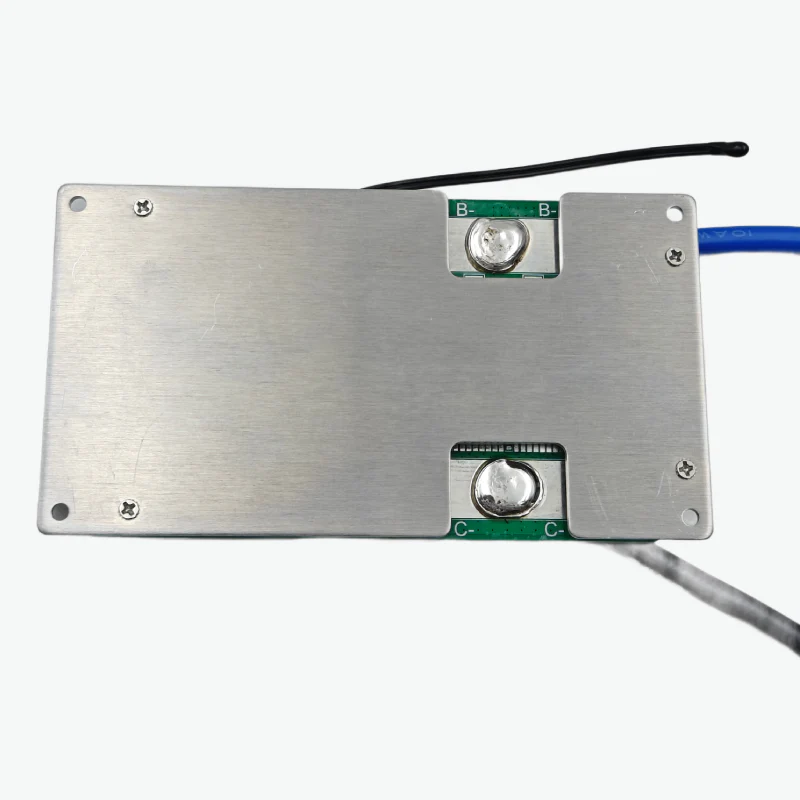

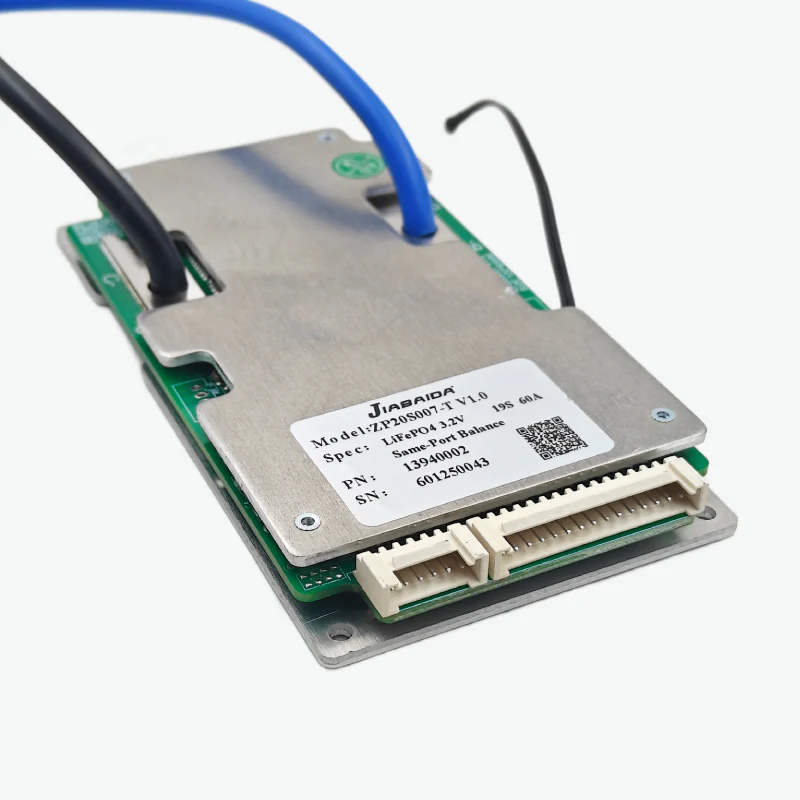

Jiabaida (JBD) LiFePo4 19S 60.8V 60A is a high-efficiency Battery Management System (BMS) designed with TP20S001 hardware, tailored for 19-cell LiFePo4 battery packs. This BMS offers intelligent passive balancing, advanced safety features, and a durable build suitable for high-power systems such as electric bikes, energy storage, and power backup units. It protects the battery pack from overcharging, over-discharging, short circuits, and excessive current, ensuring long battery life and stable performance.

Jiabaida (JBD) LiFePo4 19S 60A BMS Features:

• 60A continuous discharge current for high-load applications
• Intelligent passive balancing for cell voltage stability
• Integrated protection: over-voltage, under-voltage, short circuit, and overcurrent
• TP20S001 hardware ensures reliable operation and precision control
• Suitable for large LiFePo4 battery-powered systems

Jiabaida (JBD) LiFePo4 19S 60A BMS Specification:

Specification	Value
Model	TP20S001
Supported Cells	19S (LiFePo4)
Nominal Voltage (V)	60.8V
Charge Voltage (V)	69.35V
Charge Current (A)	30A
Continuous Discharge Current (A)	60A
Balance Current (mA)	30 ±5
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.55 ±0.05
Over Discharge Detect Voltage (V)	2.20 ±0.1
Over Discharge Release Voltage (V)	2.50 ±0.1
Operating Temperature (°C)	-20 to 70
Dimensions (mm)	128 x 63 x 12



Package Includes:

1 x Jiabaida (JBD) LiFePo4 19S 60A Battery Management System - BMS Protection Board
