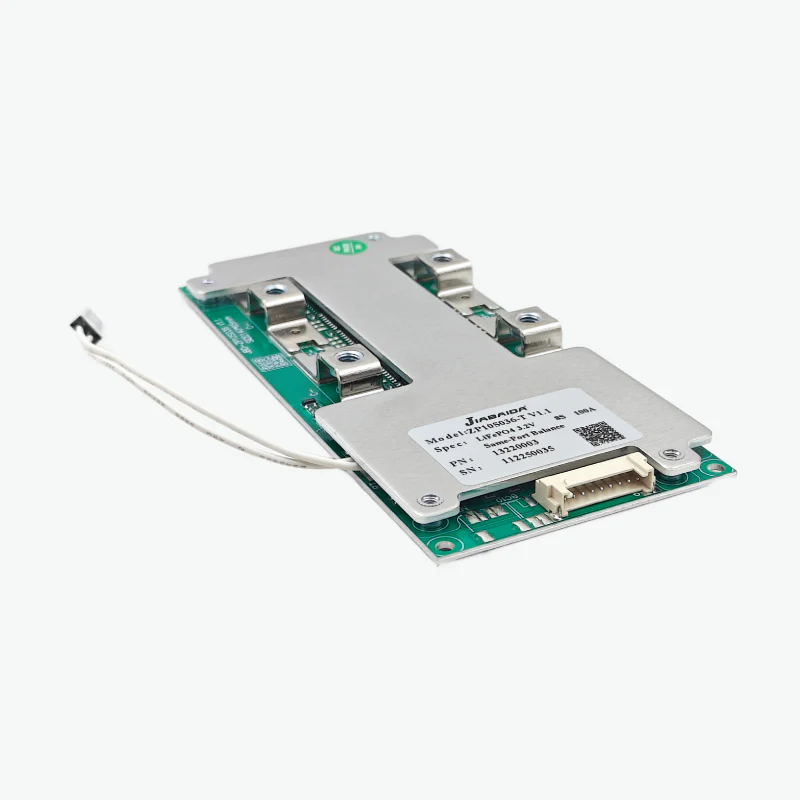

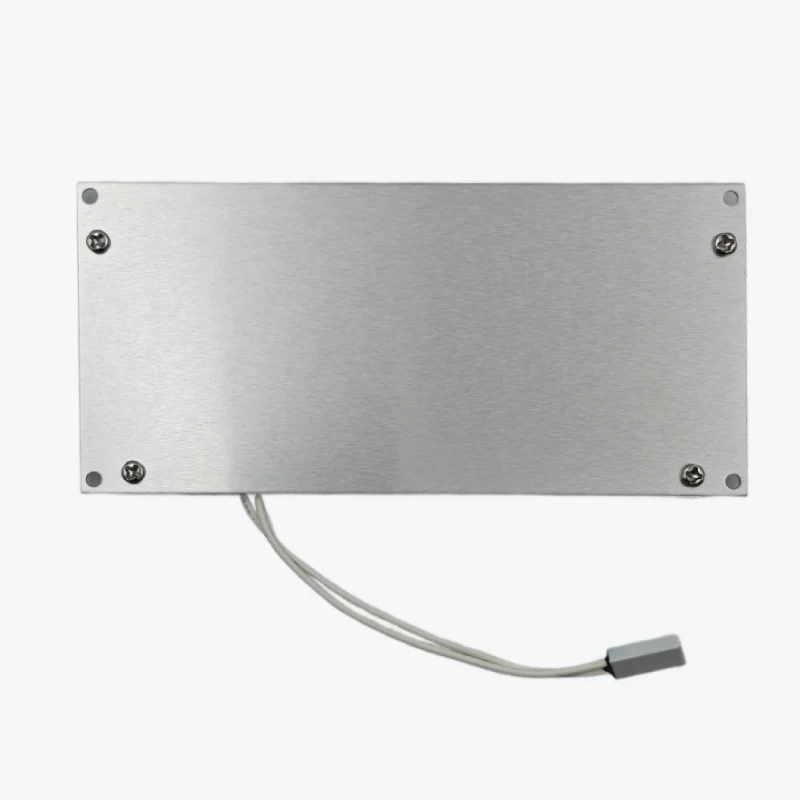

Jiabaida (JBD) LiFePo4 8S 25.6V 100A is a high-performance Battery Management System (BMS) built on the ZP10S036 hardware, tailored for 8-cell LiFePo4 battery packs requiring high current output. This BMS features passive balancing, robust protection against overcharge, over-discharge, short circuit, and overcurrent, and supports continuous discharge up to 100A. It is ideally suited for electric vehicles, solar energy systems, and other high-power LiFePo4 battery applications where reliability and efficiency are critical.

Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Features:

• High 100A continuous discharge support
• Intelligent passive cell balancing
• Built-in protections for over-voltage, under-voltage, overcurrent, and short circuit
• ZP10S036 hardware platform for precise battery management
• Suitable for high-load LiFePo4 battery-powered systems

Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Specification:

Specification	Value
Model	ZP10S036
Supported Cells	8S (LiFePo4)
Nominal Voltage (V)	25.6V
Charge Voltage (V)	29.2V
Charge Current (A)	50A
Continuous Discharge Current (A)	100A
Balance Current (mA)	30 ±5
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.55 ±0.05
Over Discharge Detect Voltage (V)	2.20 ±0.1
Over Discharge Release Voltage (V)	2.50 ±0.1
Operating Temperature (°C)	-20 to 70
Dimensions (mm)	140 x 65 x 12mm



Package Includes:

1 x Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board
