Jiabaida (JBD) LiFePo4 8S 25.6V 200A is a high-performance Battery Management System (BMS) built on the ZP08S002 hardware, tailored for 8-cell LiFePo4 battery packs requiring ultra-high current output. This BMS features passive balancing, a large heat sink plate for thermal stability, and robust protections including overcharge, over-discharge, short circuit, and overcurrent. It supports continuous discharge up to 200A, making it ideal for EVs, solar inverters, and other high-power LiFePo4 battery applications.

Jiabaida (JBD) LiFePo4 8S 25.6V 200A BMS Features:

1. Ultra-high 200A continuous discharge support

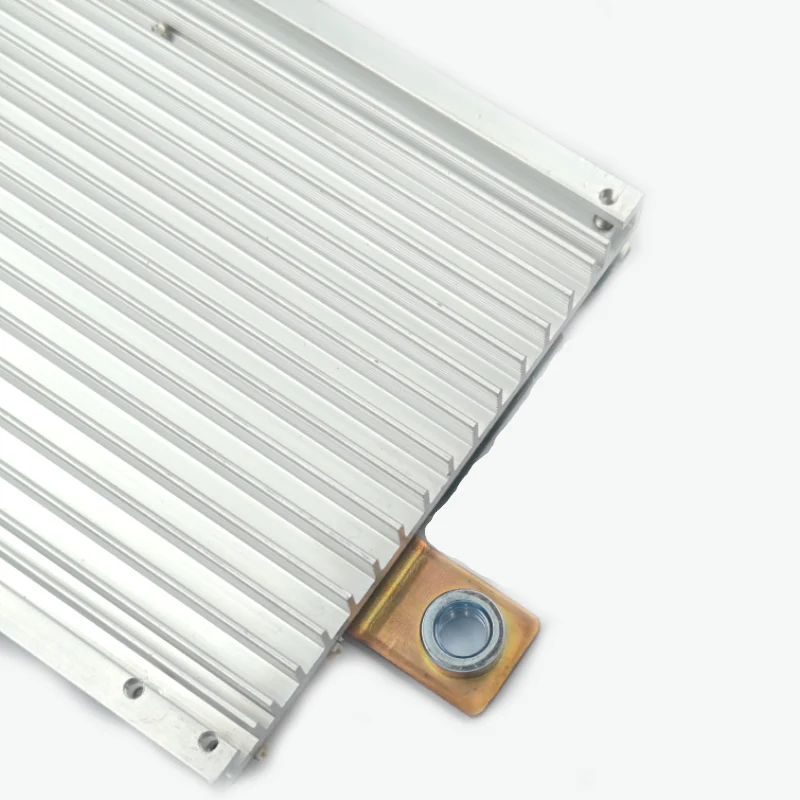

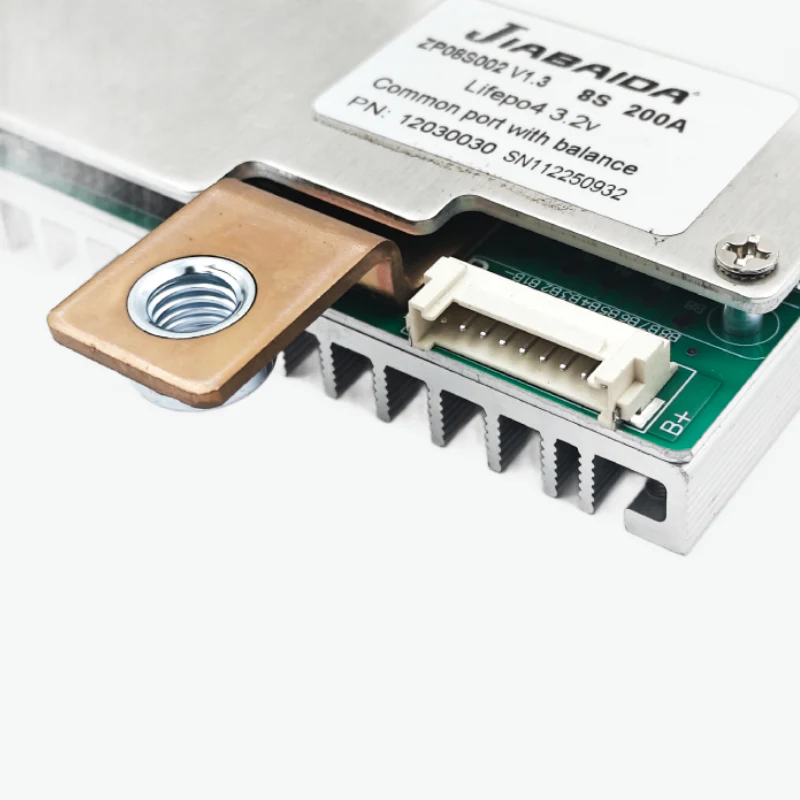

2. Large aluminum heat sink plate for enhanced thermal management
3. Passive cell balancing for battery longevity
4. Built-in protections for over-voltage, under-voltage, short circuit, and overcurrent
5. Based on ZP08S002 hardware for precise power management
6. Suitable for high-load LiFePo4 battery-powered applications

Jiabaida (JBD) LiFePo4 8S 25.6V 200A BMS Specifications:

Specification	Value
Model	ZP08S002
Supported Cells	8S (LiFePo4)
Nominal Voltage (V)	25.6V
Charge Voltage (V)	29.2V
Charge Current (A)	60A
Continuous Discharge Current (A)	200A
Balance Current (mA)	30 ±5
Balance Type	Passive
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.55 ±0.05
Over Discharge Detect Voltage (V)	2.20 ±0.1
Over Discharge Release Voltage (V)	2.50 ±0.1
Short Circuit Protection	Yes
Overcurrent Protection	Yes
Temperature Protection	Yes
Cooling	Aluminum Heat Sink Plate
Operating Temperature (°C)	-20 to 70
Dimensions (mm)	160 x 105 x 18



Package Includes:

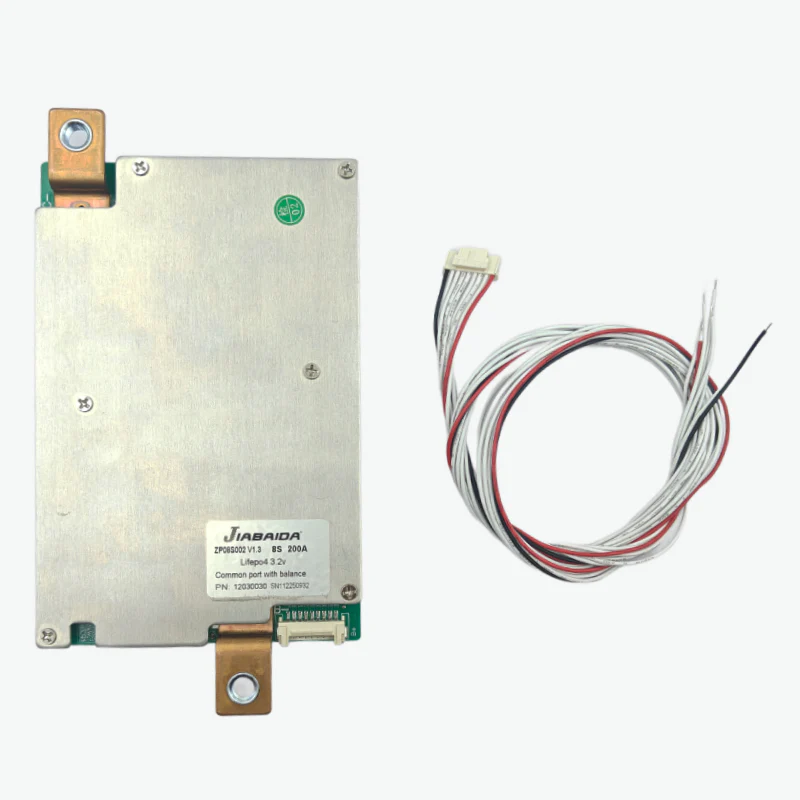

1 x Jiabaida (JBD) LiFePo4 8S 25.6V 200A Battery Management System - BMS Protection Board
