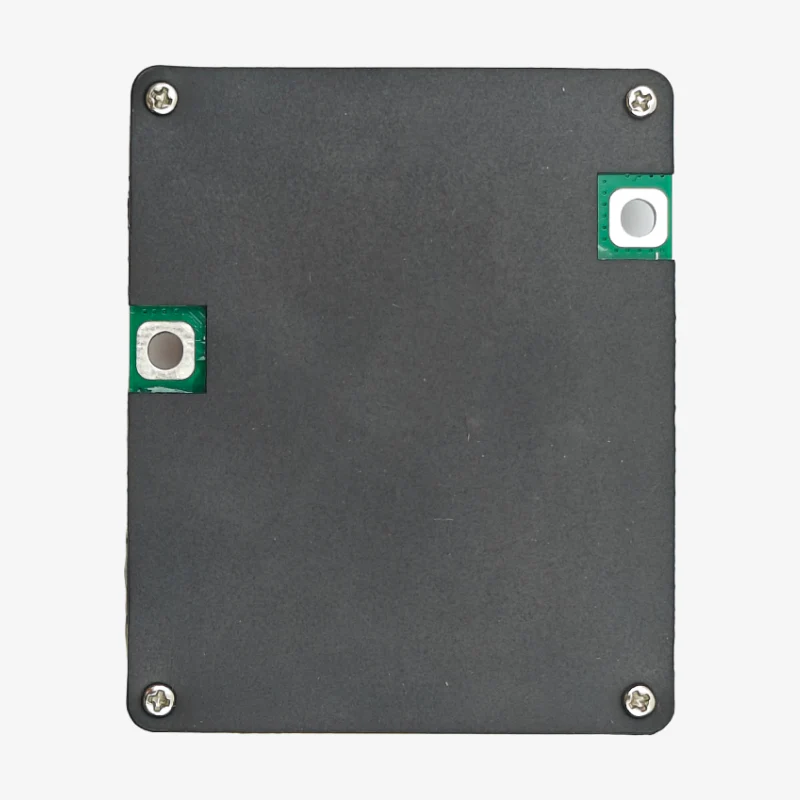

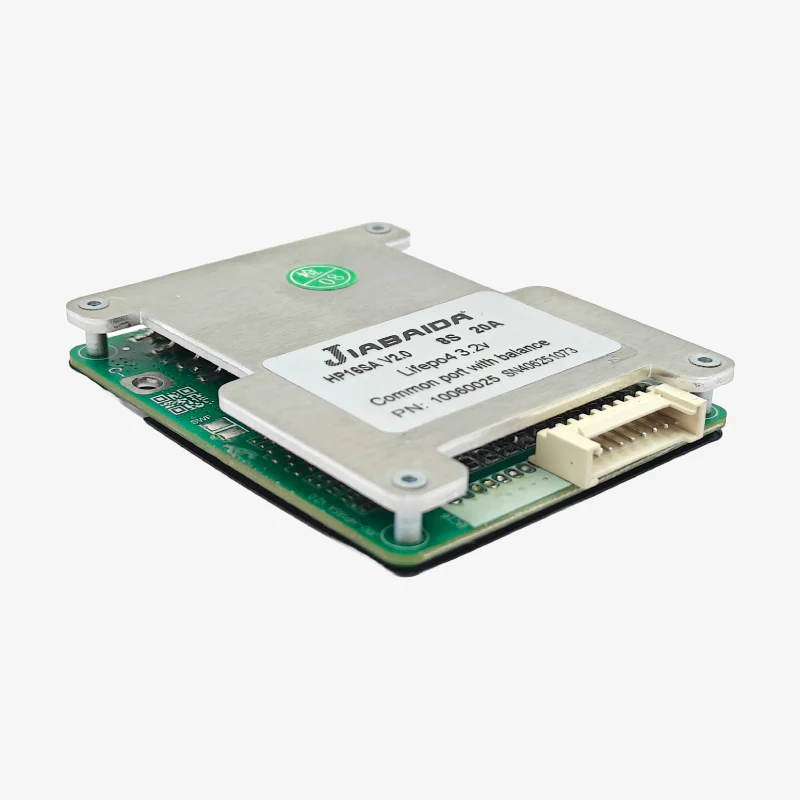

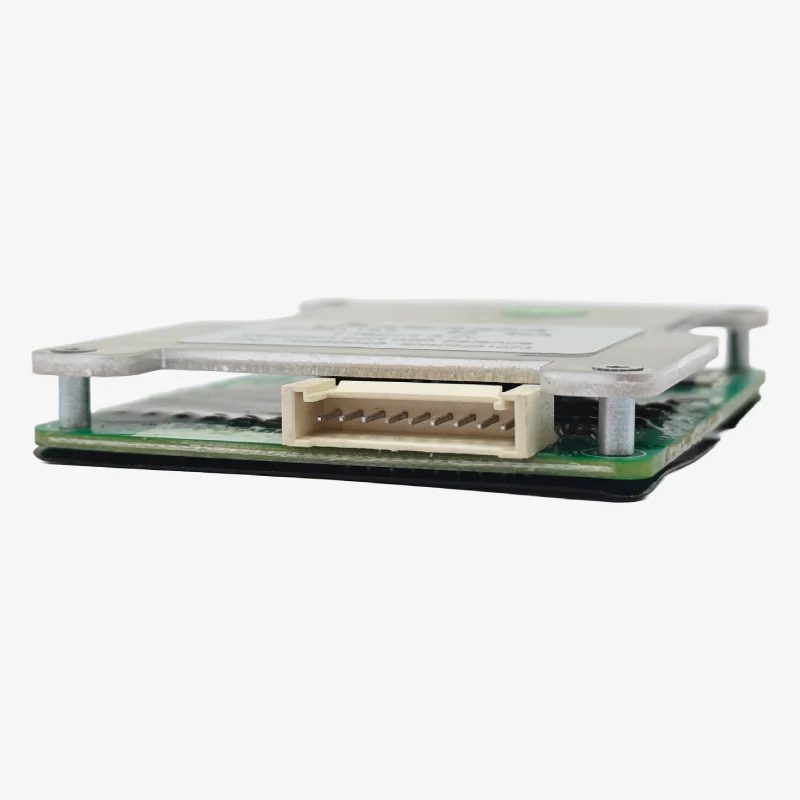

Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS is a high-performance Battery Management System (BMS) based on the HP16SA chipset, designed for 8-cell LiFePo4 battery packs. This BMS provides 20A continuous discharge and offers comprehensive protection against overcharge, over-discharge, and short circuits, ensuring safe and efficient operation. The passive balancing function helps maintain balanced cell voltage for optimal battery life. With a compact design and integrated aluminum heat sink, it is ideal for use in electric vehicles, solar storage systems, and other high-power applications.

Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS Features:

• 20A continuous discharge current for moderate-power applications
• Passive cell balancing for optimal battery performance
• Integrated protection for overcharge, over-discharge, and short-circuit
• HP16SA chipset for precise control and reliability
• Aluminum heat sink for effective heat dissipation
• Designed for 8S LiFePo4 battery packs

Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS Specification:

Specification	Value
Chipset	HP16SA
Supported Cells	8S (LiFePo4)
Nominal Voltage (V)	25.6V
Charge Voltage (V)	29.2V
Charge Current (A)	10A
Continuous Discharge Current (A)	20A
Balance Current (mA)	30 ±5
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.60 ±0.05
Over-Discharge Detect Voltage (V)	2.00 ±0.1
Over-Discharge Release Voltage (V)	2.50 ±0.1
Operating Temperature (°C)	-20°C to 60°C
Dimensions (mm)	57x 69 x 10mm



Package Includes:

1 x Jiabaida (JBD) LiFePo4 4S 12.8V 20A Battery Management System - BMS Protection Board
