The L7805CV is a fixed 5V linear voltage regulator IC manufactured by STMicroelectronics. It provides a stable 5V output from a wide input voltage range of 10V to 35V, making it a popular choice for powering logic circuits, microcontrollers, and other 5V devices. With a typical output current capability of up to 1.5A, built-in thermal shutdown, and short-circuit protection, the L7805CV ensures reliable and safe voltage regulation in a compact TO-220-3 package ideal for heat sinking.

Features of L7805CV Voltage Regulator IC:

1. Fixed 5V positive output voltage
2. Wide input voltage range from 10V to 35V
3. Output current capability up to 1.5A
4. Internal thermal shutdown and short-circuit protection
5. Stable operation with minimal external components
6. Suitable for general-purpose 5V regulated power supplies
7. TO-220-3 package for easy mounting and heat dissipation

Specifications of L7805CV IC:

• Model: L7805CV
• Function: Linear Voltage Regulator
• Input Voltage Range: 10V to 35V
• Output Voltage: 5V (Fixed)
• Output Current: Up to 1.5A
• Dropout Voltage: ~2V (typical)
• Package: TO-220-3 (Through Hole)
• Operating Temperature: 0°C to +125°C
• Manufacturer: STMicroelectronics

Package Includes:

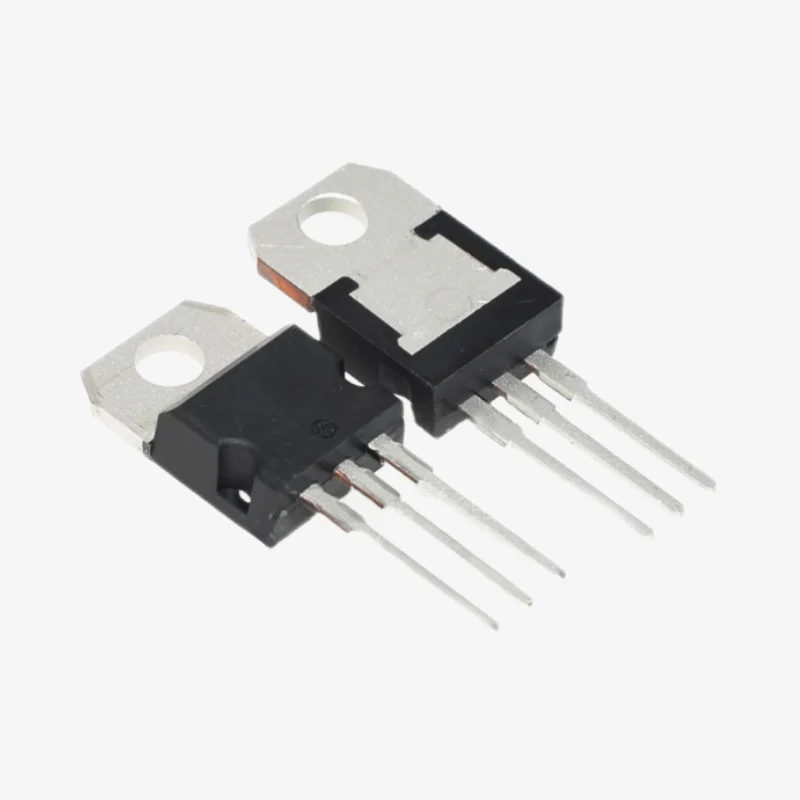

1 × L7805CV Linear Voltage Regulator IC (STMicroelectronics) – TO-220-3 Package
