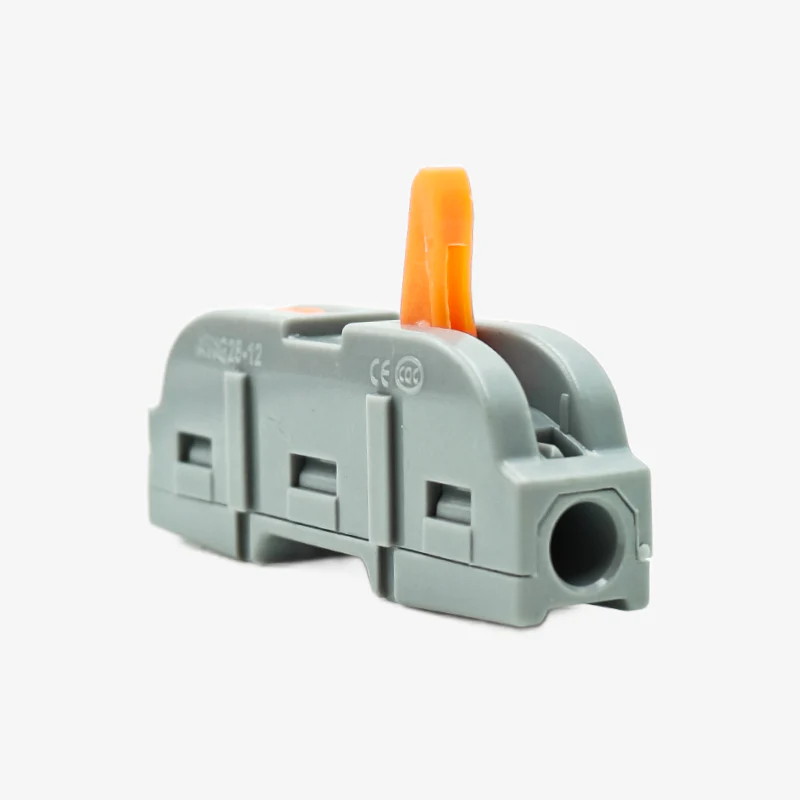

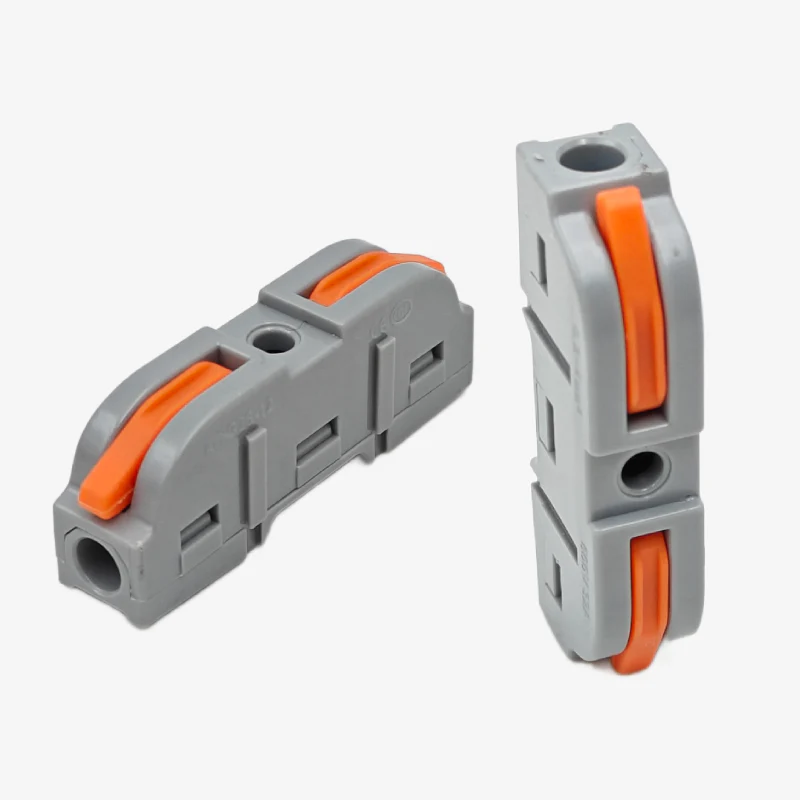

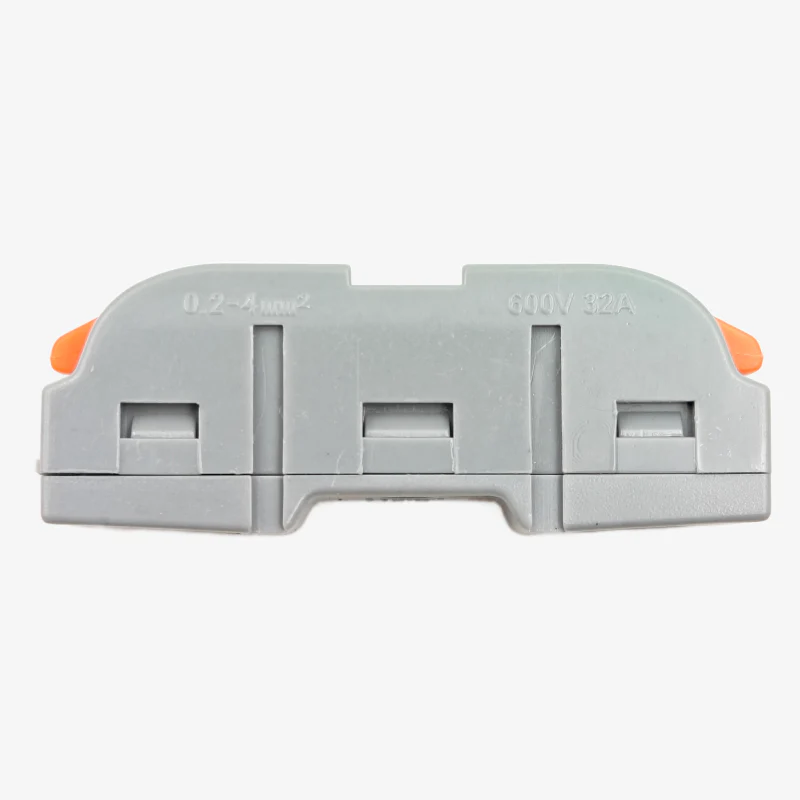

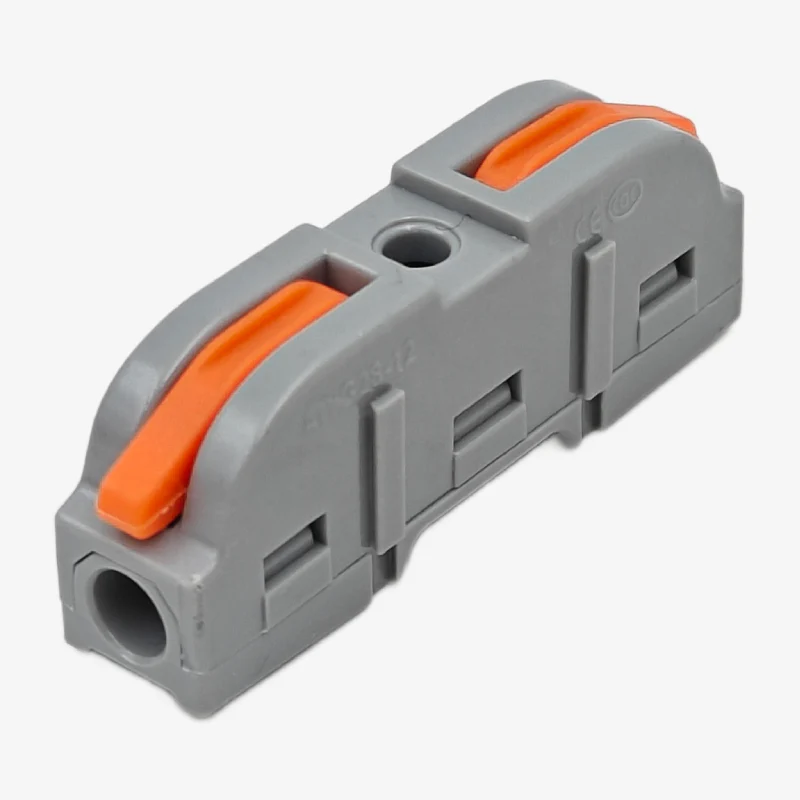

The LT-211 (SPL-1) is a compact single-pole quick connection terminal block designed for fast, tool-free wire splicing. Its spring lock lever mechanism allows secure, reusable, and vibration-resistant wire connections, making it an excellent solution for both permanent and temporary electrical setups. This terminal supports a wide wire range and is ideal for home, industrial, and control panel applications.

Features of LT-211 (SPL-1) 0.08–2.5mm Wire Connector:

1. Quick connection design for fast and efficient wiring
2. Terminals can be spliced for convenient extension or combination
3. Spring lock lever ensures easy, tool-free operation
4. Compatible with solid, stranded, and flexible wires
5. Suitable for wire sizes between 0.08mm² and 2.5mm² (28–14 AWG)
6. Flame-retardant and high-temperature resistant housing
7. Ideal for tight space installations like junction boxes, lighting circuits, and panels

Specifications of LT-211 (SPL-1) 0.08–2.5mm Wire Connector:

• Model: LT-211 (SPL-1)
• Number of Poles: 1
• Wire Size Range: 0.08–2.5mm² (28–14 AWG)
• Rated Voltage: 250V
• Rated Current: 32A
• Housing Material: Flame-retardant PC
• Contact Material: Copper Alloy
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × LT-211 (SPL-1) 0.08–2.5mm Single Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection
