M7 / 1N4007 SMD Diode (Pack of 10)

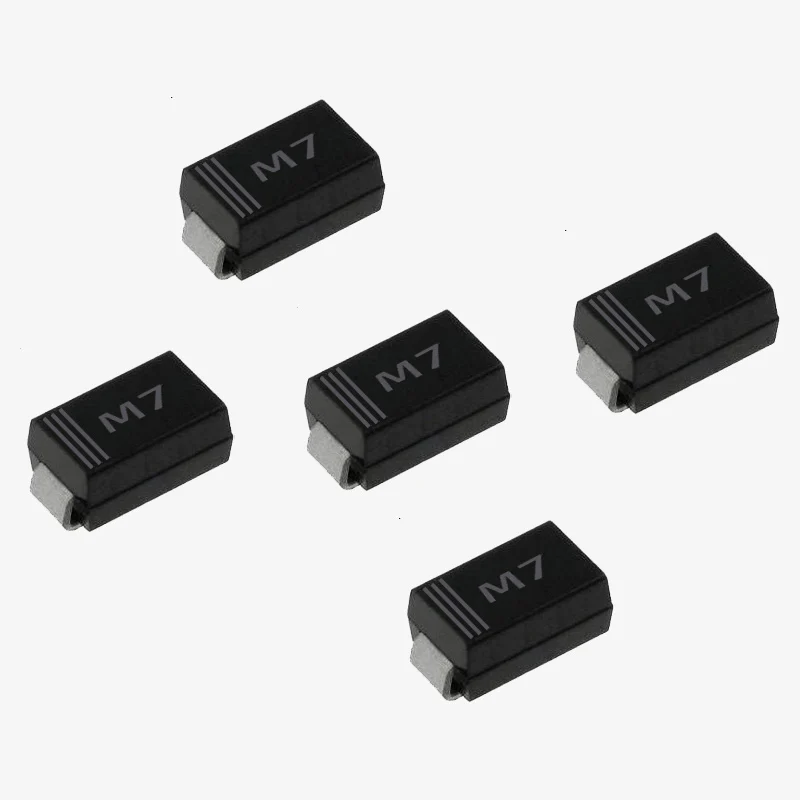

Product image 1
1 / 2

M7 / 1N4007 SMD Diode (Pack of 10)

M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.

Features :

  • SMD Version of 1N4007
  • Forward Current: 1A
  • Max Repetitive Reverse Voltage: 1000 V
  • Max RMS Voltage: 700V
  • Max DC Blocking Voltage: 1000V
  • Max instantaneous forward voltage: 1.1 V

Mechanical Characteristics :

  • Case : JEDEC DO-214AC molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end.

Specifications :

Peak Repetitive Reverse Voltage (VRRM) 1000V
Maximum RMS Voltage (VRMS) 700V
Maximum DC Blocking Voltage (VDC) 1000V
Maximum Average Forward Rectified Current (IFAV) 1A
Non-Repetitive Peak Forward Surge Current (IFSM) 30A
Operating Junction Temperature Range (TJ) − 65°C to +175°C
Storage Temperature Range (Tstg) − 65°C to +175°C
Quantity 10 Pieces

Package includes :

M7 / 1N4007 SMD Diode x 10piece

M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.

Features :

  • SMD Version of 1N4007
  • Forward Current: 1A
  • Max Repetitive Reverse Voltage: 1000 V
  • Max RMS Voltage: 700V
  • Max DC Blocking Voltage: 1000V
  • Max instantaneous forward voltage: 1.1 V

Mechanical Characteristics :

  • Case : JEDEC DO-214AC molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end.

Specifications :

Peak Repetitive Reverse Voltage (VRRM) 1000V
Maximum RMS Voltage (VRMS) 700V
Maximum DC Blocking Voltage (VDC) 1000V
Maximum Average Forward Rectified Current (IFAV) 1A
Non-Repetitive Peak Forward Surge Current (IFSM) 30A
Operating Junction Temperature Range (TJ) − 65°C to +175°C
Storage Temperature Range (Tstg) − 65°C to +175°C
Quantity 10 Pieces

Package includes :

M7 / 1N4007 SMD Diode x 10piece
$0.03

Original: $0.08

-63%
M7 / 1N4007 SMD Diode (Pack of 10)—

$0.08

$0.03

Description

M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.

Features :

  • SMD Version of 1N4007
  • Forward Current: 1A
  • Max Repetitive Reverse Voltage: 1000 V
  • Max RMS Voltage: 700V
  • Max DC Blocking Voltage: 1000V
  • Max instantaneous forward voltage: 1.1 V

Mechanical Characteristics :

  • Case : JEDEC DO-214AC molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end.

Specifications :

Peak Repetitive Reverse Voltage (VRRM) 1000V
Maximum RMS Voltage (VRMS) 700V
Maximum DC Blocking Voltage (VDC) 1000V
Maximum Average Forward Rectified Current (IFAV) 1A
Non-Repetitive Peak Forward Surge Current (IFSM) 30A
Operating Junction Temperature Range (TJ) − 65°C to +175°C
Storage Temperature Range (Tstg) − 65°C to +175°C
Quantity 10 Pieces

Package includes :

M7 / 1N4007 SMD Diode x 10piece
