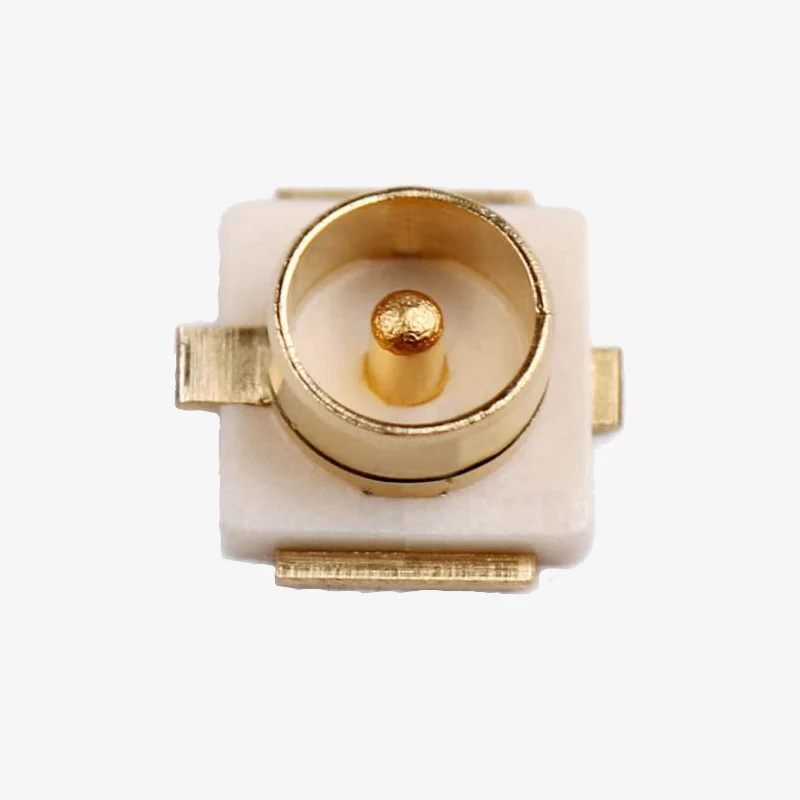

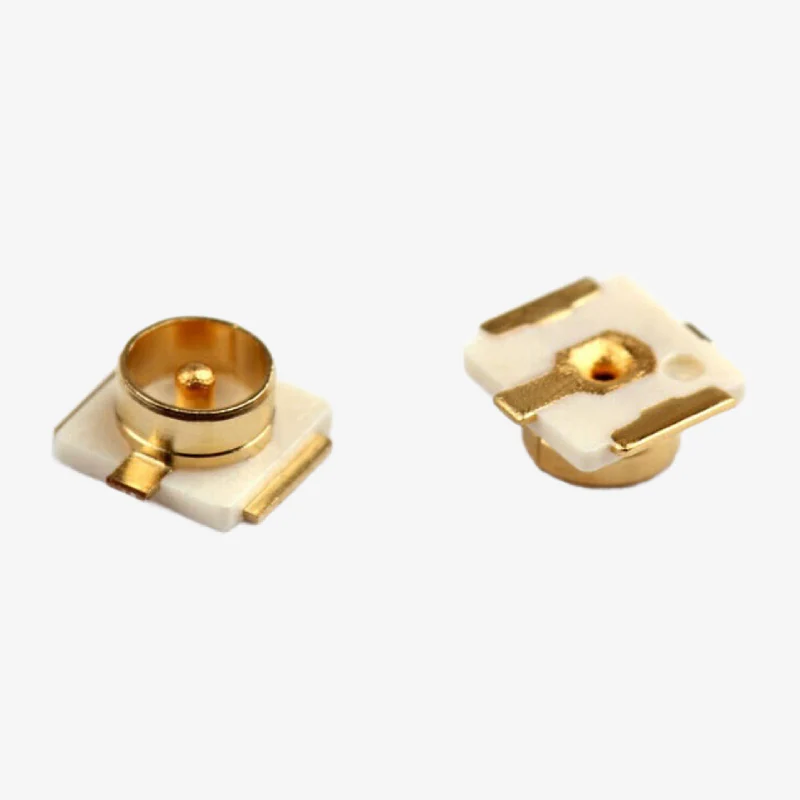

The Male UFL/IPX/IPEX Socket Connector SMD for Antenna is a compact and high-precision surface-mount RF connector designed for connecting miniature antennas to wireless modules. It ensures stable signal transmission with low insertion loss, making it ideal for Wi-Fi, Bluetooth, GPS, and other RF communication applications. Its small size and SMD mounting make it perfect for space-constrained designs in modern electronics.

Features of Male UFL/IPX/IPEX Socket Connector SMD:

1. Compact UFL/IPX/IPEX compatible socket
2. Surface-Mount Device (SMD) design for easy PCB integration
3. Low insertion loss and high signal stability
4. Suitable for Wi-Fi, GPS, Bluetooth, and RF modules
5. Ideal for space-saving and miniature electronic applications

Specifications of Male UFL/IPX/IPEX Socket Connector SMD:

• Connector Type: UFL/IPX/IPEX Male Socket
• Mounting Type: Surface Mount (SMD)
• Impedance: 50 Ohms
• Frequency Range: DC to 6 GHz
• Contact Material: Phosphor Bronze with Gold Plating
• Operating Temperature: -40°C to +85°C

Package Includes:

1 x Male UFL/IPX/IPEX Socket Connector SMD for Antenna
