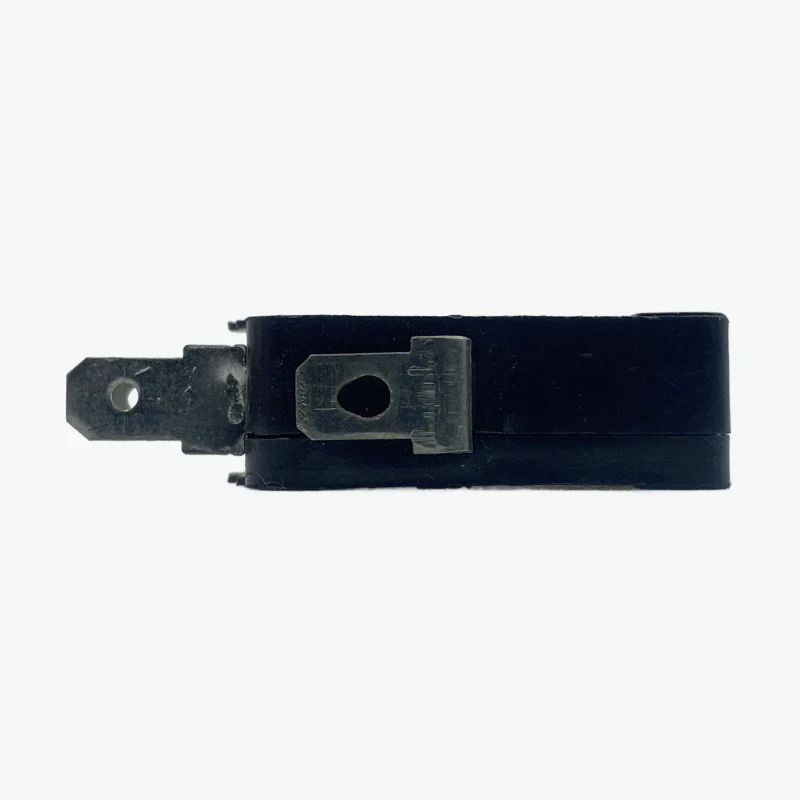

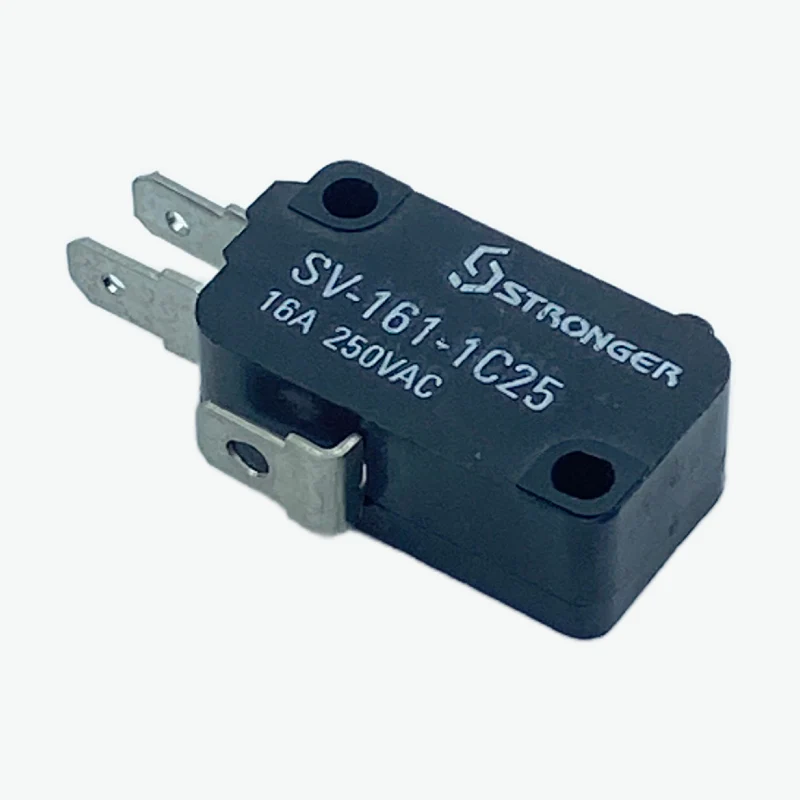

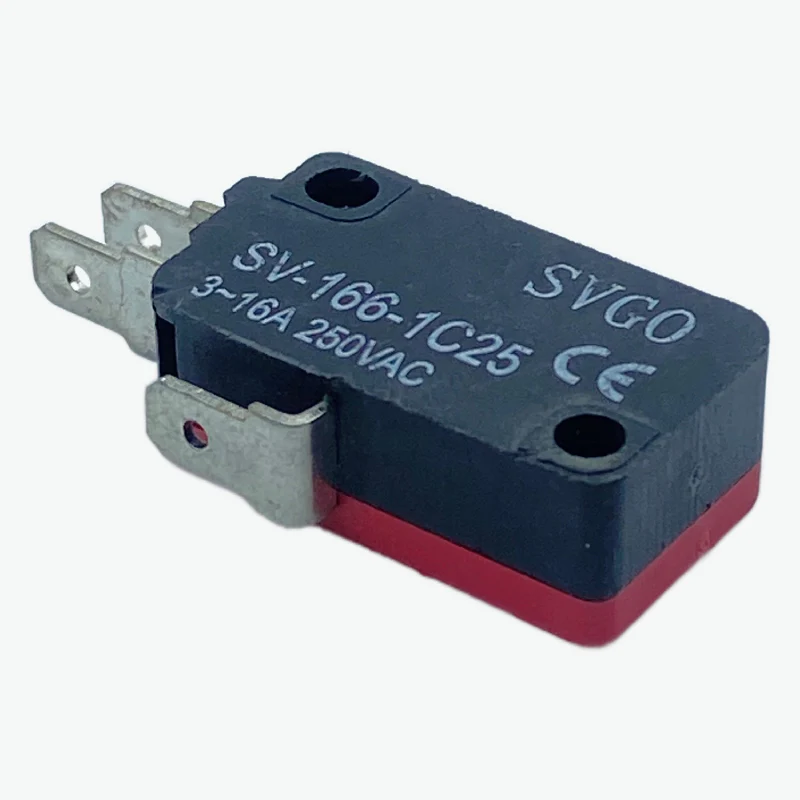

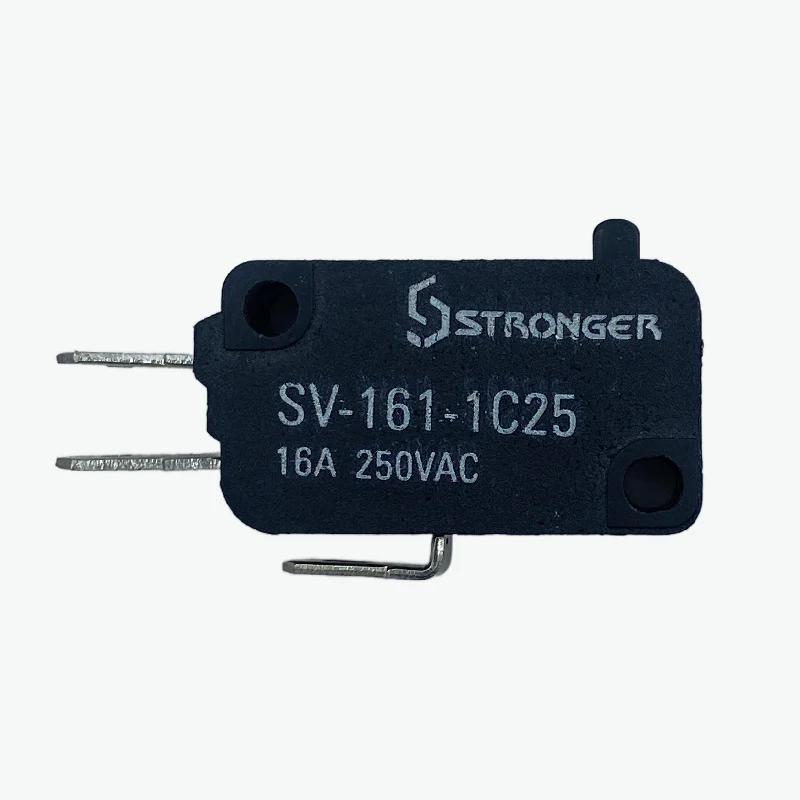

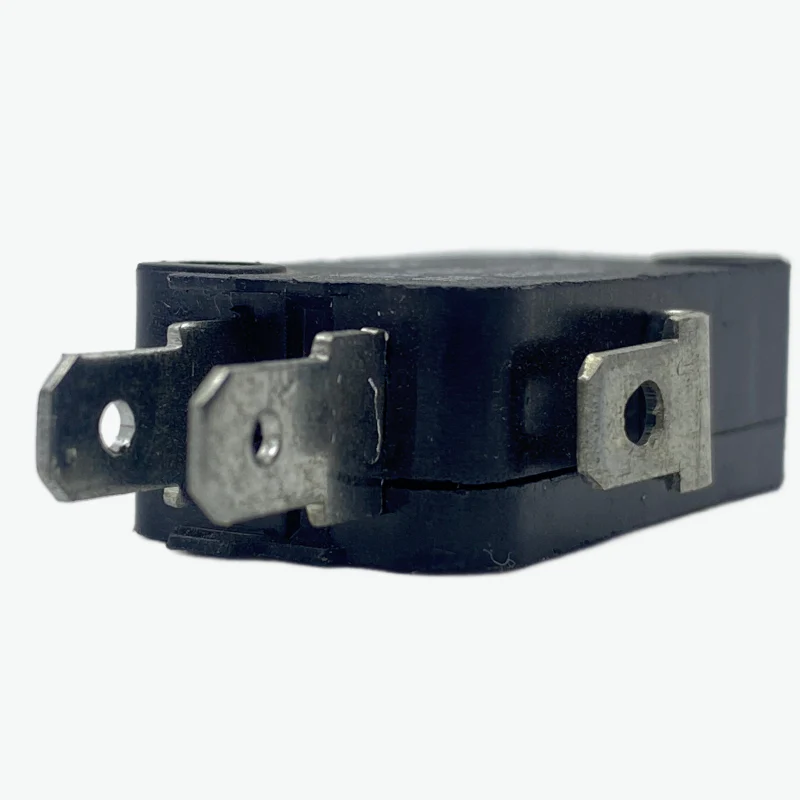

The V-15-1C25 SPDT Micro Limit Switch is a compact, high-precision switching device designed for a wide range of industrial and automation applications. Known for its reliability and durability, this micro switch delivers excellent performance in controlling motors, relays, and various electromechanical systems. Its SPDT (Single Pole Double Throw) configuration allows both NO (Normally Open) and NC (Normally Closed) contacts, making it versatile for multiple circuit functions.

Features:

1. Rated for up to 15A at 250V AC, suitable for heavy-duty applications
2. SPDT (Single Pole Double Throw) contact configuration for flexible control options
3. Lever actuator for smooth and precise mechanical operation
4. Compact and robust design for easy integration into control systems
5. High mechanical and electrical endurance for long service life
6. Reliable snap-action mechanism ensures consistent switching performance
7. Suitable for automation, appliances, machinery, and safety devices

Specifications:

• Model: V-15-1C25
• Type: SPDT Micro Limit Switch
• Rated Voltage: 250V AC
• Rated Current: 15A
• Contact Configuration: SPDT (1NO + 1NC)
• Actuator Type: Button
• Operating Force: ~150gf (typical)
• Body Material: High-Strength Thermoplastic
• Contact Material: Silver Alloy
• Terminal Type: Solder Lug / Quick Connect
• Mechanical Life: >10,000,000 Operations
• Electrical Life: >100,000 Operations at Rated Load
• Operating Temperature Range: -25°C to +80°C
• Mounting Type: Panel / Screw Mount

Package Includes:

1 × V-15-1C25 SPDT Micro Limit Switch – 15A 250V AC
