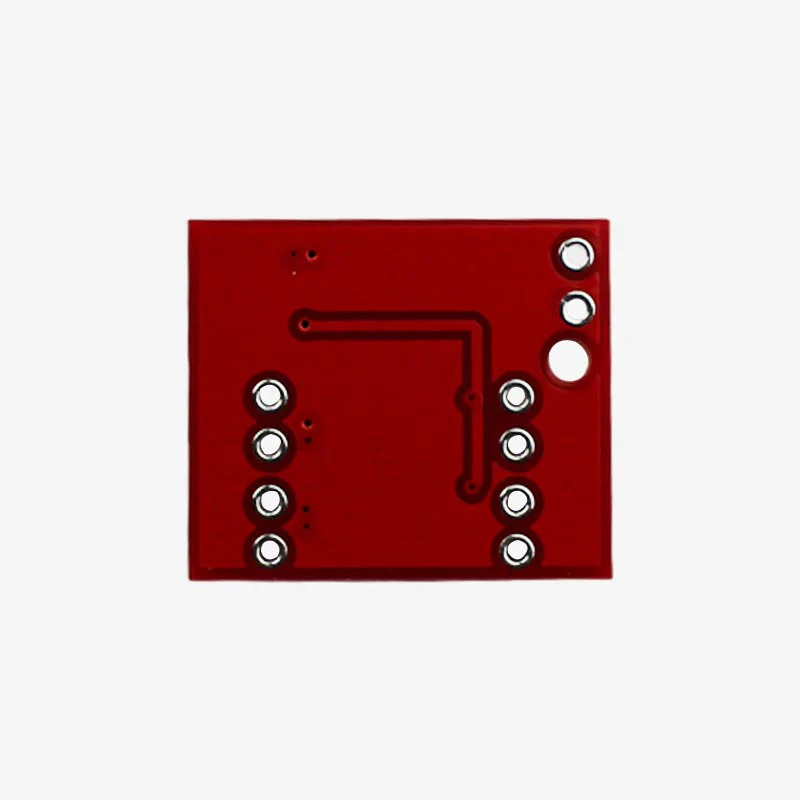

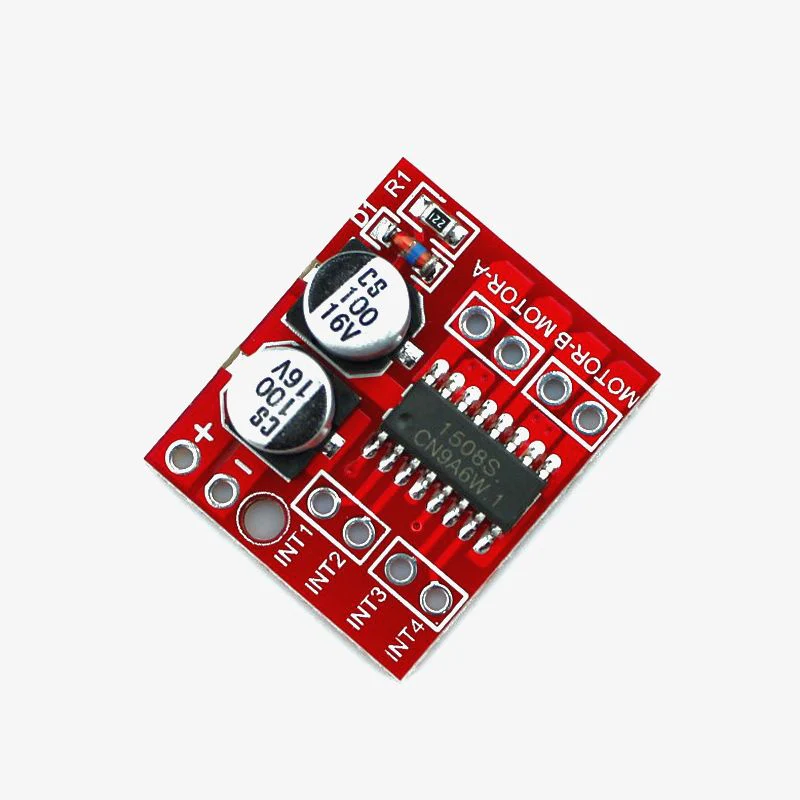

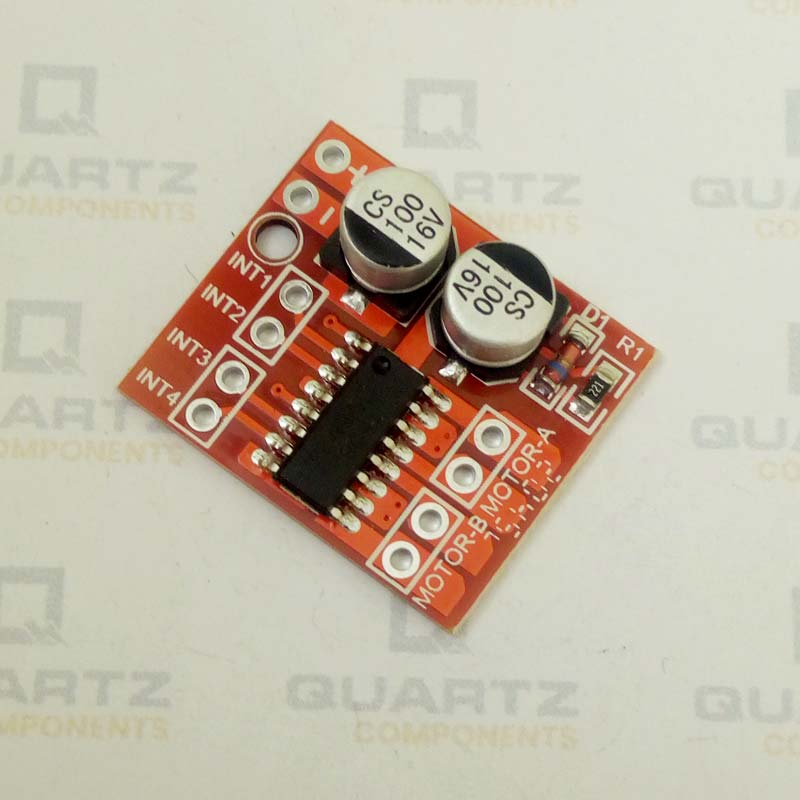

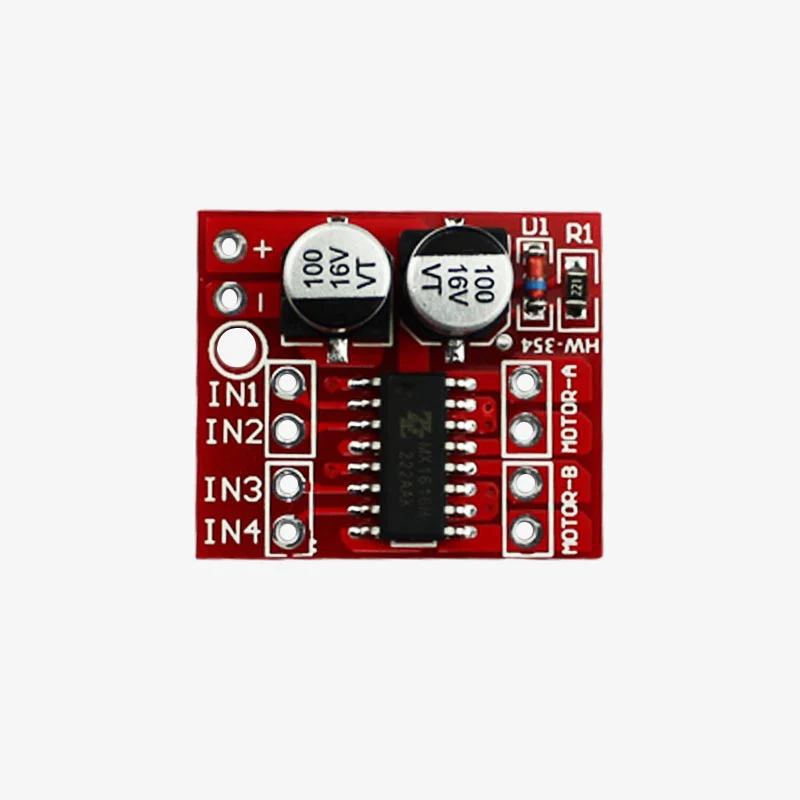

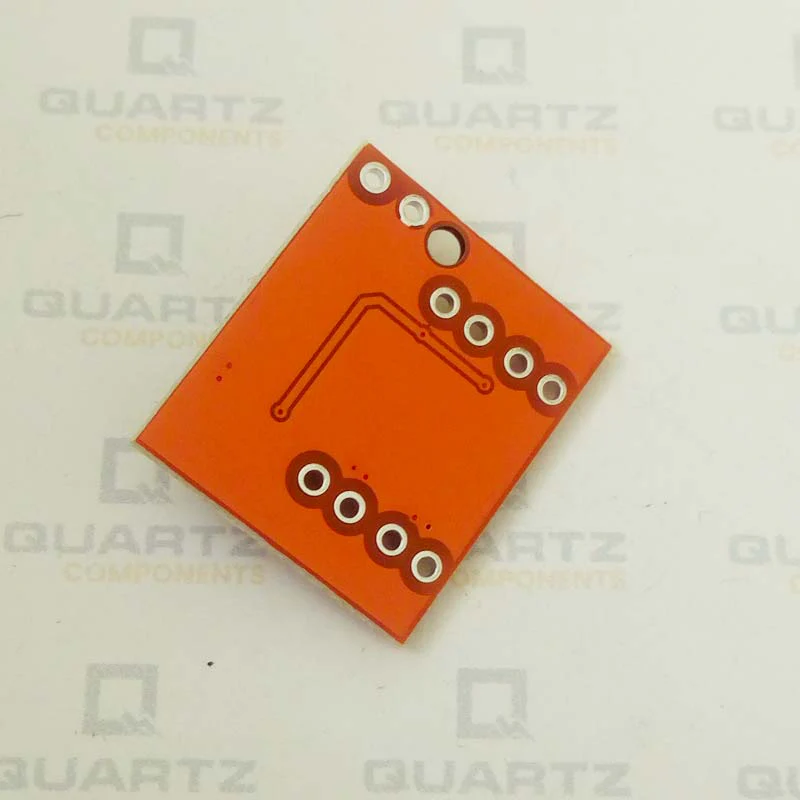

MX1508 Dual H Bridge DC PWM Stepper Motor Driver module is ideal for use in battery-powered smart cars, toy cars, robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.



MX1508 Motor Driver pinout:



Specification:

1. Operating Voltage: 2 ~ 10V DC
2. Working Current: 1.5A Operating Current
3. Peak Current: 2.5A Peak Current
4. Standby Current: 0.1uA Current rating
5. Built in hysteresis effect
6. 4-wire two-phase stepper motor

MX1508 Motor Driver Applications:

• Stepper Motor Control
• Robotics
• Motor Control System
• Industrial Automation



MX1508 Motor Driver Dimension and footprint:



Package Contains

1x MX1508 DC Motor Driver Board
