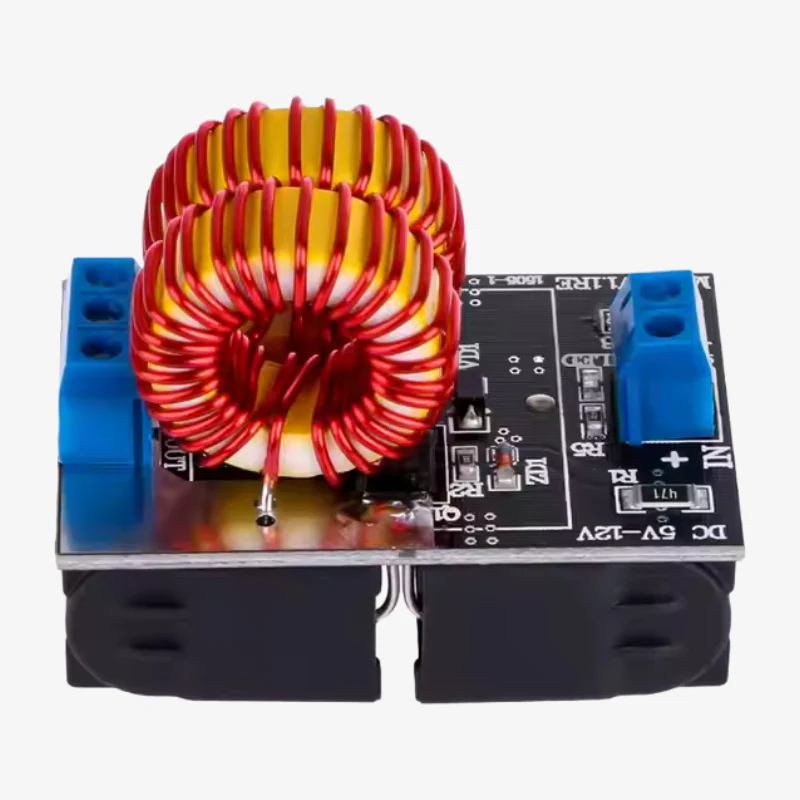

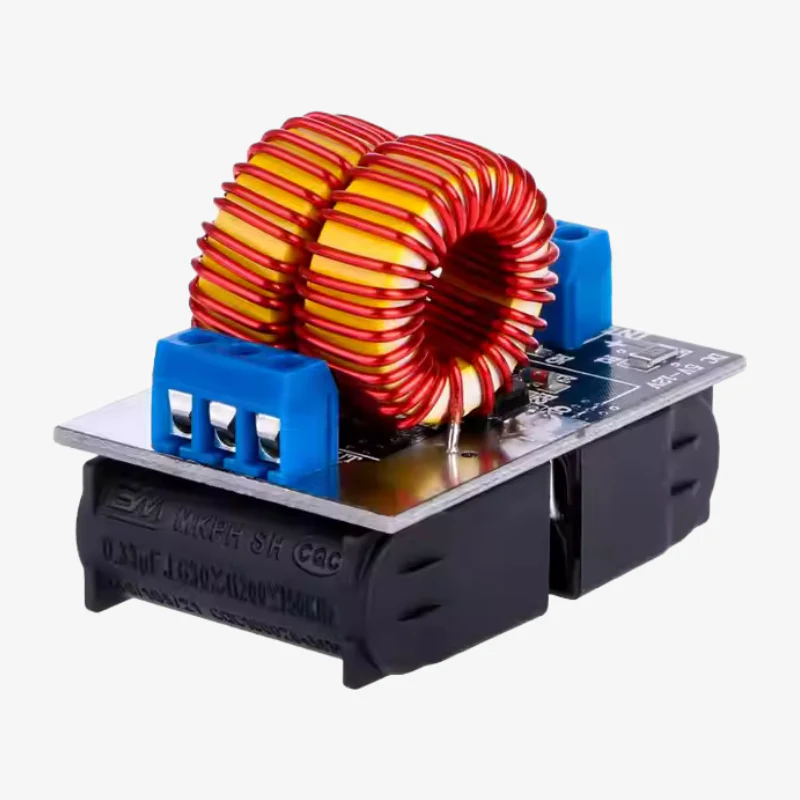

The Mini ZVS Induction Heating Board is a compact and efficient high-frequency induction heater that operates on DC 5V-12V. It is designed for DIY applications, including small-scale metal heating, annealing, quenching, and ignition coil drivers. The module features a Zero Voltage Switching (ZVS) topology, ensuring low heat generation and high efficiency. The integrated toroidal coil enhances the heating effect, making it suitable for hobbyists and electronic enthusiasts experimenting with induction heating.

Features of Mini ZVS Induction Heating Board:

1. ZVS Design ensures efficient power conversion with minimal heat loss.
2. High-Frequency Heating enables rapid heating of small metal objects.
3. Toroidal Coil improves heating efficiency and stability.
4. Ideal for DIY projects and small-scale experiments.
5. Can be used for metal heating, induction melting, and ignition coil driving.

Specifications of Mini ZVS Induction Heating Board:

• Operating Voltage: DC 5V-12V
• Current Draw: Varies based on input voltage and load
• Output Type: High-frequency oscillation for induction heating
• Coil Type: Pre-wound toroidal copper coil
• Board Dimensions: Compact for easy integration into projects

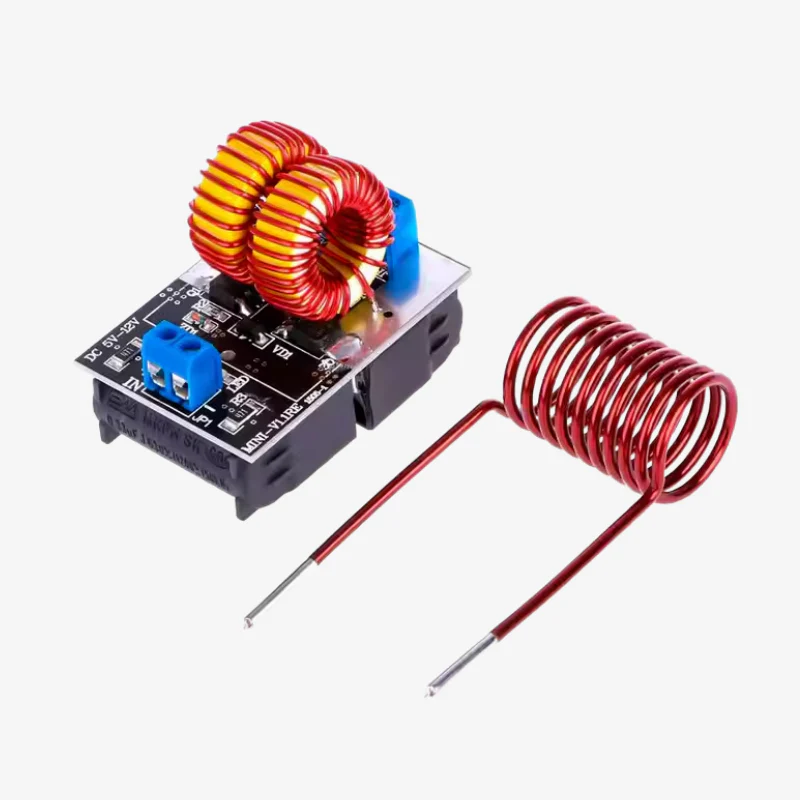

Package Includes:

1 × Mini ZVS Induction Heating Board

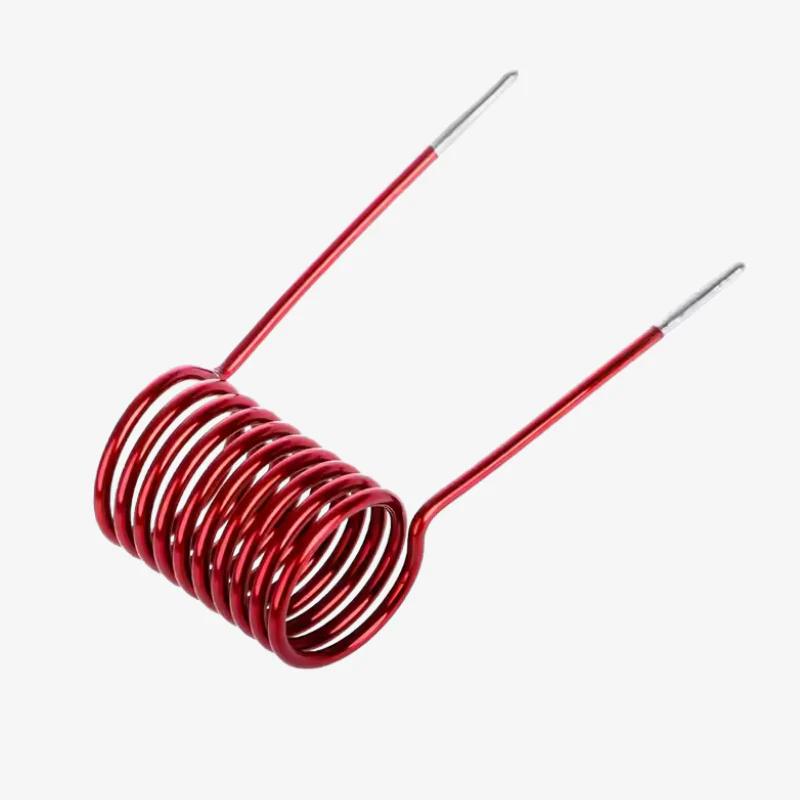

1 × Heating Coil
