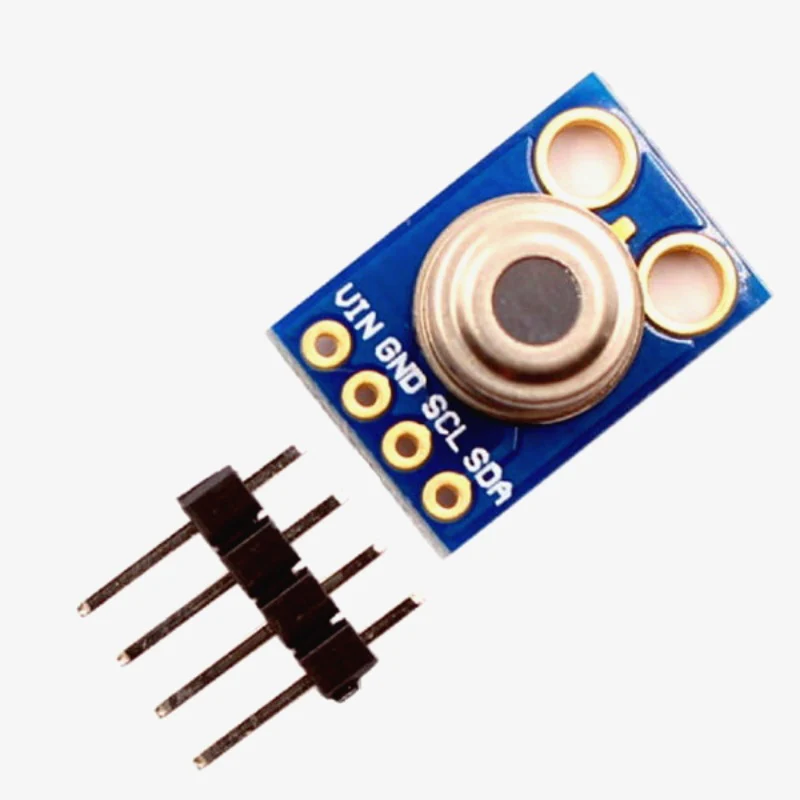

MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module
The MLX90614 Temperature Sensor is capable of measuring the temperature of a particular object or surface without getting into contact with it. The sensor works measuring the amount of IR light emitted by an object towards which it is pointed at, it uses the principle of Stefan-Boltzmann Law which states that all objects including living being, emit IR energy based on the temperature of the object or the being. Hence by measuring the IR energy emitted, we can calculate the temperature of the object.
The sensor comes in easy to use TO-39 Package with factory calibration and Arduino Library support, hence can easily used in a wide variety of commercial, health care, and household applications.
Specifications of MLX90614:
- Operating Voltage: 3.6V to 5V
- Operating Current: 1.5mA
- Temperature Range: -70°C to 382.2°C
- Accuracy: 0.02°C
- Package: TO-39
Additional Resources
Datasheet MLX90614 Sensor
IR Contactless Thermometer
RFID based Contactless thermometer
Package Contents
1× MLX90614 IR Temperature Sensor
The MLX90614 Temperature Sensor is capable of measuring the temperature of a particular object or surface without getting into contact with it. The sensor works measuring the amount of IR light emitted by an object towards which it is pointed at, it uses the principle of Stefan-Boltzmann Law which states that all objects including living being, emit IR energy based on the temperature of the object or the being. Hence by measuring the IR energy emitted, we can calculate the temperature of the object.
The sensor comes in easy to use TO-39 Package with factory calibration and Arduino Library support, hence can easily used in a wide variety of commercial, health care, and household applications.
Specifications of MLX90614:
- Operating Voltage: 3.6V to 5V
- Operating Current: 1.5mA
- Temperature Range: -70°C to 382.2°C
- Accuracy: 0.02°C
- Package: TO-39
Additional Resources
Datasheet MLX90614 Sensor
IR Contactless Thermometer
RFID based Contactless thermometer
Package Contents
1× MLX90614 IR Temperature Sensor
