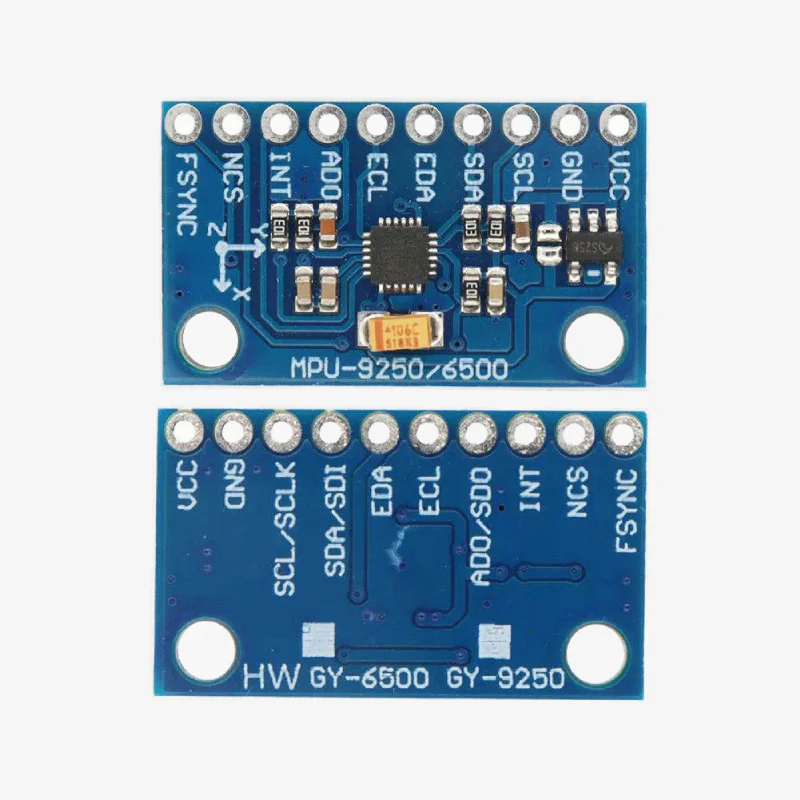

MPU9250 9-Axis Attitude Gyro Accelerator Sensor Module
The MPU9250 9-Axis Attitude Gyro Accelerator Sensor Module is a high-precision motion-tracking sensor that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer into one compact module. Designed for advanced motion detection, orientation sensing, and navigation systems, it is widely used in drones, robotics, stabilizers, VR/AR projects, and IMU applications.
With support for both I2C and SPI interfaces, the module is easy to interface with Arduino, Raspberry Pi, ESP32, STM32, and most microcontrollers. Its built-in digital motion processor (DMP) allows for efficient sensor fusion, providing stable and accurate 9-axis orientation data.
Features:
- 9-axis sensing: Gyroscope + Accelerometer
- High-resolution motion tracking with low noise
- Supports I²C and SPI communication
- Built-in magnetometer for accurate heading/compass data
- Wide selectable gyroscope & accelerometer ranges
- Compact, lightweight module for wearable and embedded systems
- Compatible with Arduino, ESP8266/ESP32, STM32, Raspberry Pi, etc.
- Ideal for drones, robotics, gesture control, VR/AR devices, IMUs, and navigation projects
Specifications:
- Sensor Chip: MPU9250
- Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 °/s
- Accelerometer Range: ±2g / ±4g / ±8g / ±16g
- Magnetometer Range: ±4800 µT
- Communication: I²C (up to 400kHz), SPI (up to 1MHz)
- Operating Voltage: 3.3V
- Logic Level: 3.3V
- Power Consumption: Ultra-low power design
- Operating Temperature: –40°C to +85°C
- Dimensions: Compact PCB module
- Mounting: Standard 4-hole design for easy installation
Package Includes:
1 × MPU9250 9-Axis Attitude Gyro Accelerator Sensor Module
